Lind Electronics PA1540I-3486 Accessory

Part Number: PA1540I-3486
$277.75

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Device Supported
Notebook
Outer Tip Size
0.22"
Inner Tip Size
98.4 mil
Input Voltage
12 V DC24 V DC

Product Description:

  POWER ADAPTER PANASONIC N

Lind Electronics Power Supplies and Accessories Accessory Model Overview

Lind Electronics specializes in providing leading-edge mobile power solutions to the Military, Public Safety, Warehousing industries and other industries where high-grade power solution products are required. Lind offers AC/DC and DC/DC power adapters, shutdown timers, auxiliary power packs, battery chargers, stock and custom cables and other products that are designed to meet a wide variety of power and application requirements.
Lind Electronics PA1540I-3486 Accessory Overview

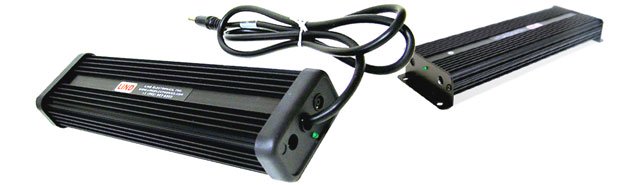

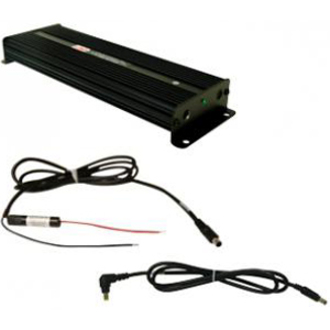

The Lind PA1540I-3486 Isolated DC/DC Power Adapter delivers true continuous power to the Panasonic Toughbook PDRC. The adapter powers the PDRC from any 12-32 Vdc source.

  • Input Undervoltage Shutdown: Shutdown occurs if input voltage is less than 10.5 Vdc (typical)
  • Output Overcurrent Shutdown: Shutdown occurs at approximately 5.25 Adc (typical)
  • Thermal Protection: Yes
  • Shutdown Restart Time: Unit resets automatically 10 seconds after fault is removed (typical)
  • Operating Temperature: -20 to +40
Technical Information
Device Supported:
Notebook
Outer Tip Size:
0.22"
Inner Tip Size:
98.4 mil
Power Description
Input Voltage:
  • 12 V DC
  • 24 V DC
Input Voltage Range:
12 V DC - 32 V DC
Maximum Output Current:
4 A
Physical Characteristics
Height:
1.2"
Width:
3"
Depth:
9.3"
Weight (Approximate):
1.56 lb
Miscellaneous
Compatibility:

Panasonic ToughBook Permanent Display Removable Computer (PDRC)

Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 39121006
