Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC @ 20 A
- 24 V DC @ 10 A
Output Power:
500 W
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.

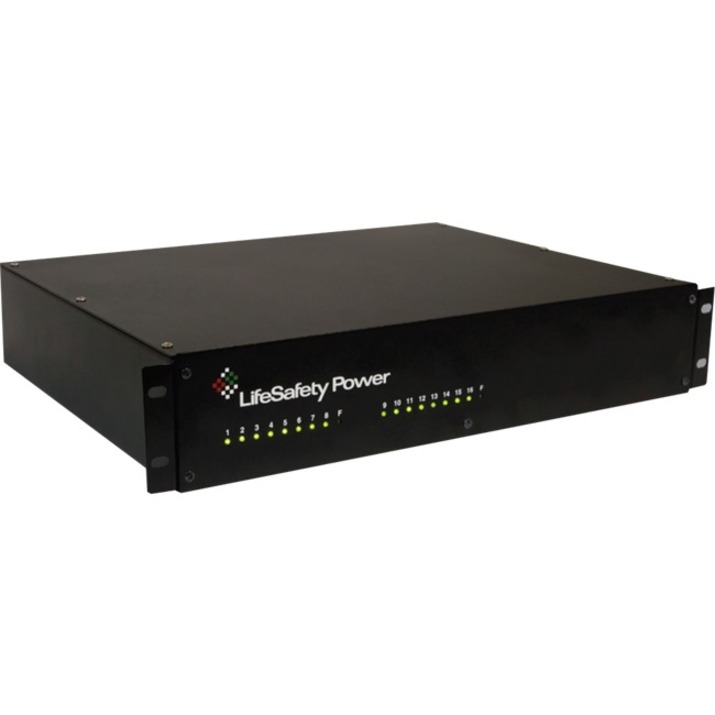

LifeSafety Power RD250 Accessory Overview
FLEXPOWER RD SERIES is a 12/24VDC single or dual voltage, DC rackmount power system with multiple power distribution outputs specifically designed for use within the access, security, CCTV, and mass notification segments of the life safety industry. Multiple output options provide for simple power distribu-tion for auxiliary equipment power. Models ending in "/E" are preset for a 230VAC input from the factory.
Available with either two, eight, or sixteen, continuous or switched power outputs, each output is fused at 3A (H variant is 5A) and individually protected against elec-trical surges caused by lightning or transients on the external wiring (SurgeShied™). The unit is selectable for 12 or 24VDC (default factory setting is 12VDC), with the switched power output user selectable for either failsafe or failsecure (ON-OFF) op-eration when the fire alarm input is initiated (default factory setting is failsafe).
Power Description
Physical Characteristics
Form Factor:
Rack-mountable
Height:
3.5"
Width:
19"
Depth:
14"
Weight (Approximate):
19 lb
Miscellaneous
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power RD250 Accessory is also known as
LSP-RD250
