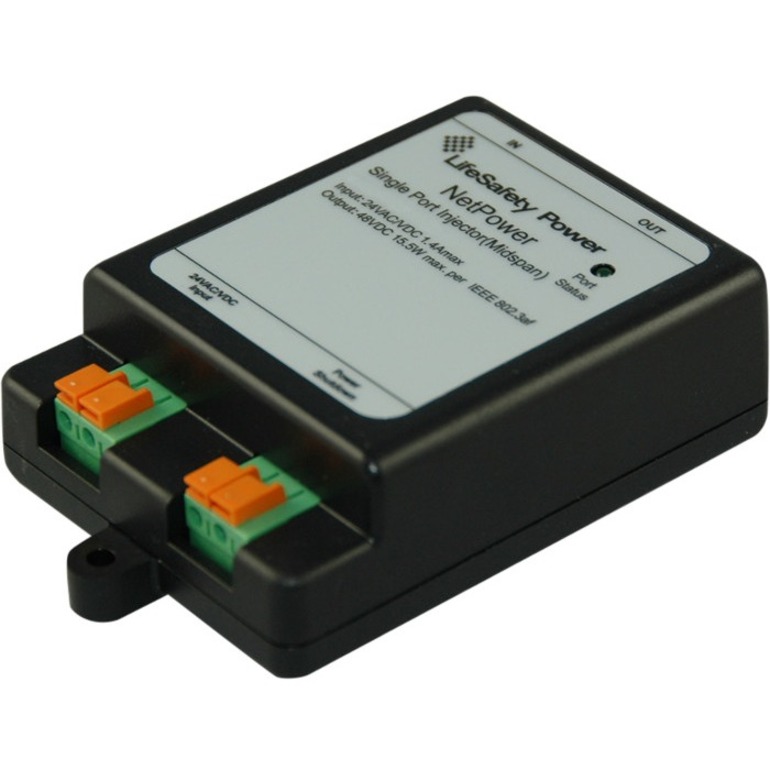

LifeSafety Power NPM130 Power Device

Part Number: NPM130
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$94.43

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Protection Type
Overload ProtectionShort CircuitOver VoltagePower ReverseOver Current
Input Voltage
24 V DC24 V AC
Maximum Output Voltage
50 V DC
Maximum Input Current
2.60 A

Product Description:

  POE Single Port Midspan Injector 30W
Explore all LifeSafety Power Parts Accessories
Add to Quote
LifeSafety Power NPM130 Power Device
LifeSafety Power NPM130 Power Device
LifeSafety Power NPM130 Power Device LifeSafety Power NPM130 Power Device

LifeSafety Power Parts Accessory Model Overview

Products and parts from LifeSafety-Power.
LifeSafety Power NPM130 Power Device Overview

NetPower single port PoE MidSpan Injectors provide PoE power to PoE compatible devices such as IP cameras, IR illuminators, access control panels and readers, or to non-PoE devices using a PoE extractor such as the NetPower NPE130.

NetPower PoE Extractors provide 12VDC power derived from a PoE souces for powering non-PoE devices such as IP cameras, locks, or other devices.

Midspan highlights

  • Compliant for detection, disconnect and voltage control per IEEE802.3
  • 24VAC or 24VDC input
  • Reset feature allows PoE Shutdown to reset frozen devices
  • Battery backup capability with FlexPower FPO system
  • Visual diagnostic LED
  • Over voltage/current, short circuit protection

Extractor highlights

  • Allows powering 12V non-PoE devices from a PoE source
  • Selectable for 13W or 25W output to match 802.3at or 802.3af sources
  • Visual diagnostics via on-board LED
  • Overcurrent & short circuit protection

Reliability and Safety

  • RoHS Compliant
  • Lifetime warranty

Agency Listings

  • IEEE802.3af / IEEE802.3at
  • FCC Part 15, subpart B
Technical Information
Protection Type:
  • Overload Protection
  • Short Circuit
  • Over Voltage
  • Power Reverse
  • Over Current
Power Description
Input Voltage:
  • 24 V DC
  • 24 V AC
Maximum Output Voltage:
50 V DC
Maximum Input Current:
2.60 A
Maximum Output Current:
600 mA
Maximum Output Power:
30 W
Interfaces/Ports
Input Ports:
1 x Gigabit Ethernet
Output Ports:
1 x Gigabit Ethernet
Physical Characteristics
Form Factor:
DIN Mountable
Width:
2.5"
Depth:
1.2"
Length:
4.2"
Weight (Approximate):
3.04 oz
Miscellaneous
Compatibility:
  • IP Cameras
  • IR Illuminators
  • Access Control Panels and Readers
Certifications & Standards:
  • IEEE802.3af / IEEE802.3at
  • FCC Part 15, Subpart B
Environmentally Friendly:
Yes
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 39121004
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The LifeSafety Power NPM130 Power Device is also known as LSP-NPM130
