Protection Type:
- Over Voltage
- Over Current
- Short Circuit
- Overload Protection
LifeSafety Power NPM115 Products
Part Number:
NPM115
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power NPM115 Products Overview

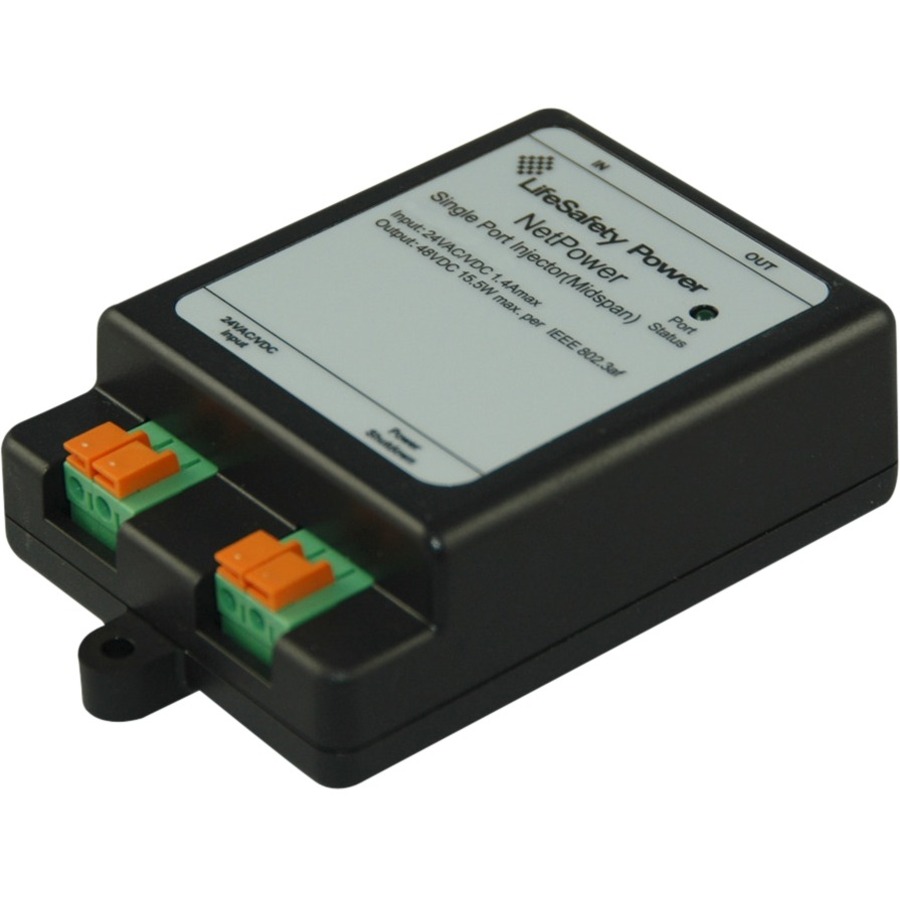

NetPower single port PoE MidSpan Injectors provide PoE power to PoE compatible devices such as IP cameras, IR illuminators, access control panels and readers, or to non-PoE devices using a PoE extractor such as the NetPower NPE130.
NetPower PoE Extractors provide 12VDC power derived from a PoE souces for powering non-PoE devices such as IP cameras, locks, or other devices.
Midspan highlights
- Compliant for detection, disconnect and voltage control per IEEE802.3
- 24VAC or 24VDC input
- Reset feature allows PoE Shutdown to reset frozen devices
- Battery backup capability with FlexPower FPO system
- Visual diagnostic LED
- Over voltage/current, short circuit protection
Technical Information
Power Description
Input Voltage:
- 24 V AC
- 24 V DC
Maximum Output Voltage:
50 V DC
Maximum Output Power:
15 W
Physical Characteristics
Mount Type:
DIN Rail Mountable
Width:
2.5"
Depth:
1.2"
Length:
4.2"
Weight (Approximate):
2.40 oz
Miscellaneous
Certifications & Standards:
- UL/CUL 60950-1 Information Technology Equipment
- Access Control UL294B
- IEEE802.3af / IEEE802.3at
- FCC Part 15, subpart B
- CSA C22.2 No.205-M1983, Signal Equipment
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Warranty
Limited Warranty:
10 Year
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power NPM115 Products is also known as
LSP-NPM115
