LifeSafety Power ISCAN250B-24P Products

FLEXPOWER ISCAN is a patented smart power management system for security and life safety applications.

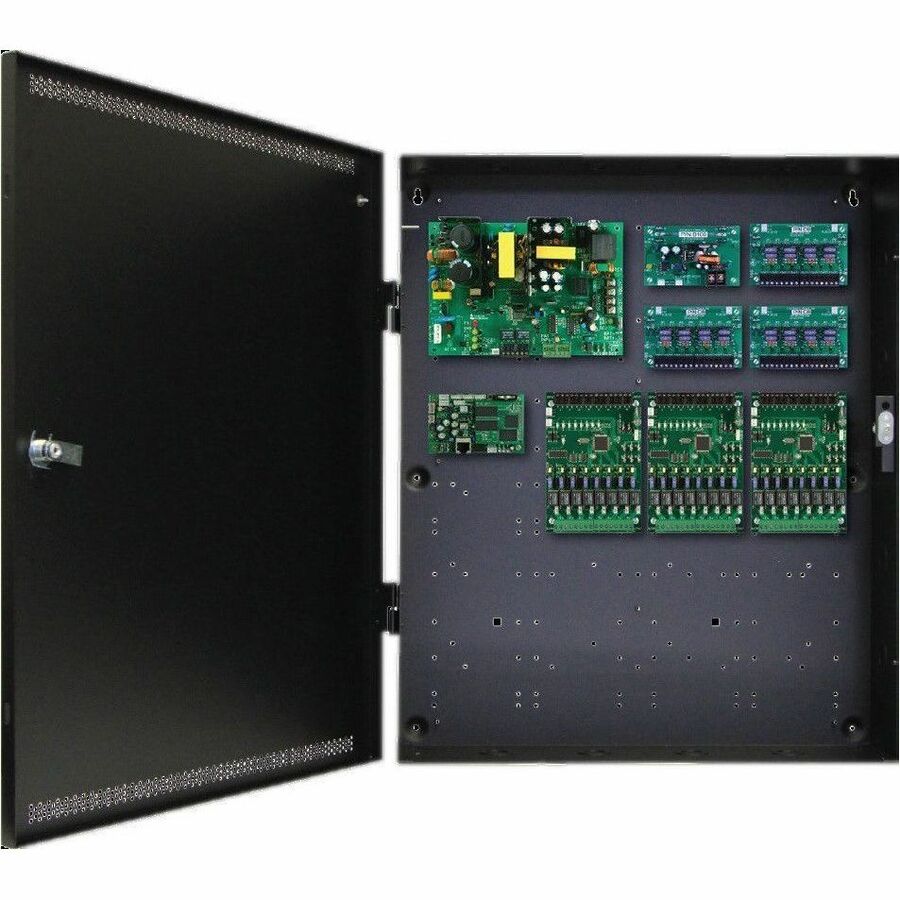

The iSCAN250B-24 is designed specifically to support the dual voltage requirement of 12 and 24VDC, this unit utilizes an FPO power supply to generate 24VDC and a B100 DC-DC Class 2 power limited supply to generate 12VDC which allows the entire system to run off one battery set.

The system provides twentyfour (24) activation inputs and twenty four (24) monitored and controlled relay outputs. The managed inputs are capable of voltage or dry contact activation and the managed outputs are programmable to either of the two system voltages, fail-safe, fail-secure, fire alarm over ride, and AC loss over ride for egress lock control.

Each managed output may also be individually activated or deactivated through an embedded browser interface and monitored for voltage and current values via network or internet. Adjustable trigger points are provided for each output to generate an alert when that output is outside of selected parameters. Twenty four (24) auxiliary outputs are also provided for readers, REX devices, or other similar units with each output selectable for either continuous or switched DC.

BENEFITS

• Twenty four managed relay outputs with multi-configurable modes of operation
• Twenty four auxiliary outputs for powering non critical devices like rex detectors that do not need to be monitored and controlled
• Remote power / battery monitoring, with control and reporting of outputs for - Current and voltage with alerts when outside preset trigger points; Total power consumption - Device ON/OFF recycling
• Microprocessor dual rate battery charger Built in fire alarm disconnect with latch mode for Canada
• Fault detection and reporting to host power supply and over the network
• Lifetime Warranty

FLEXPOWER STANDARD FEATURES

• SmartZone Comprehensive output monitoring, reporting and control
• TruWatt Delivers twice the current at 12V than at 24V
• PwrHealth Intelligent battery charging, monitoring and SOC testing
• VSelect Installer selectable output voltage
• SureCharge Microprocessor controlled battery charging
• PowerCom Power supply programming / monitoring software
• FlexConnect Dual voltage bus / pre-wired accesory board interconnects
• Reliability+ Full fault protection / high efficiency / fiberglass pcb
