Efficiency:
83%
Modular:
Yes
LifeSafety Power FPO75-E2 Power Device
Part Number:
FPO75-E2
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power FPO75-E2 Power Device Overview

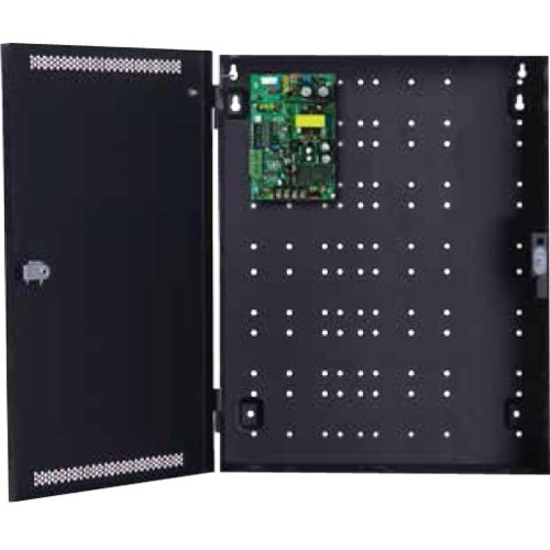

The FLEXPOWER FPO75-E2 is an offline switchmode power supply-battery charger specifically designed for the lifesafety industry. Capable of providing two power outputs, user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space.
One output provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.
One output provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 6 A
- 24 V DC @ 3 A
Output Current:
- 6 A
- 3 A
Output Power:
75 W
Physical Characteristics
Form Factor:
Enclosure
Height:
16"
Width:
20"
Depth:
4.5"
Weight (Approximate):
13 lb
Miscellaneous
Compatibility:
- Fire Alarm
- Intrusion
- Access Control
- CCTV
- Mass Notification
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO75-E2 Power Device is also known as
LSP-FPO75E2
