Efficiency:
83%
Modular:
Yes
LifeSafety Power FPO75-D8PE1M Power Device
Part Number:
FPO75-D8PE1M
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.

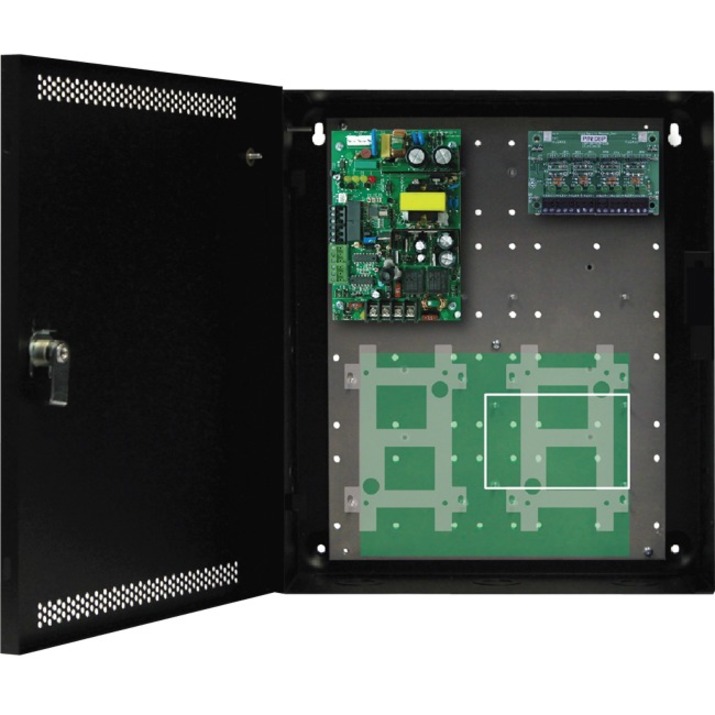

LifeSafety Power FPO75-D8PE1M Power Device Overview
MCLASS™ Unified Power Systems combine FlexPower® power modules alongside Mercury Security™ access hardware in one compact and secure UL Listed solution.
The FPO Power Supply / Battery Charger provides two power outputs user selectable for 12 or 24 VDC. One output provides continuous output power for system use, the second is resettable output power, activated when the fire alarm disconnect is initiated.
For access or lock power, the D8P provides eight class 2 power limited outputs rated at 2.5A per output, each individually programmable for constant output or FAI disconnect.
MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
The FPO Power Supply / Battery Charger provides two power outputs user selectable for 12 or 24 VDC. One output provides continuous output power for system use, the second is resettable output power, activated when the fire alarm disconnect is initiated.
For access or lock power, the D8P provides eight class 2 power limited outputs rated at 2.5A per output, each individually programmable for constant output or FAI disconnect.
MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC @ 6 A
- 24 V DC @ 3 A
Output Power:
75 W
Physical Characteristics
Form Factor:
Enclosure
Height:
14"
Width:
12"
Depth:
4.5"
Weight (Approximate):
14 lb
Miscellaneous
Package Contents:
- FlexPower FPO75-D8PE1M 75W Power Supply
- Lock
- 2 x Keys
- Tamper Switch
Compatibility:
- Fire Alarm
- Intrusion
- Access Control
- CCTV
- Mass Notification
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO75-D8PE1M Power Device is also known as
LSP-FPO75D8PE1M
