Efficiency:
83%
Modular:
Yes
LifeSafety Power FPO75-C4E1 Power Device
Part Number:
FPO75-C4E1
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power FPO75-C4E1 Power Device Overview

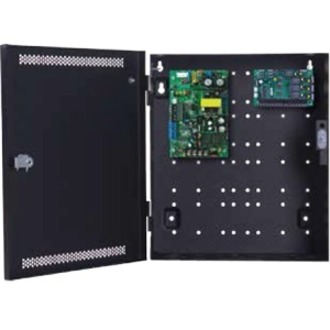

The FLEXPOWER FPO75-C4E1 is a single voltage, offline switchmode power supply-battery charger system specifically designed for the access control segment of the lifesafety industry. The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space, and provides one power supply which can be set to 12 or 24V.
Four access controlled trigger inputs control four relay based lock outputs, with each output programmable for fire alarm disconnect, failsafe, failsecure, or dry contact operation.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
Four access controlled trigger inputs control four relay based lock outputs, with each output programmable for fire alarm disconnect, failsafe, failsecure, or dry contact operation.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 6 A
- 24 V DC @ 3 A
Output Current:
- 6 A
- 3 A
Output Power:
75 W
Physical Characteristics
Form Factor:
Enclosure
Height:
14"
Width:
12"
Depth:
4.5"
Weight (Approximate):
9 lb
Miscellaneous
Compatibility:
- Fire Alarm
- Intrusion
- Access Control
- CCTV
- Mass Notification
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO75-C4E1 Power Device is also known as
LSP-FPO75C4E1
