LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.

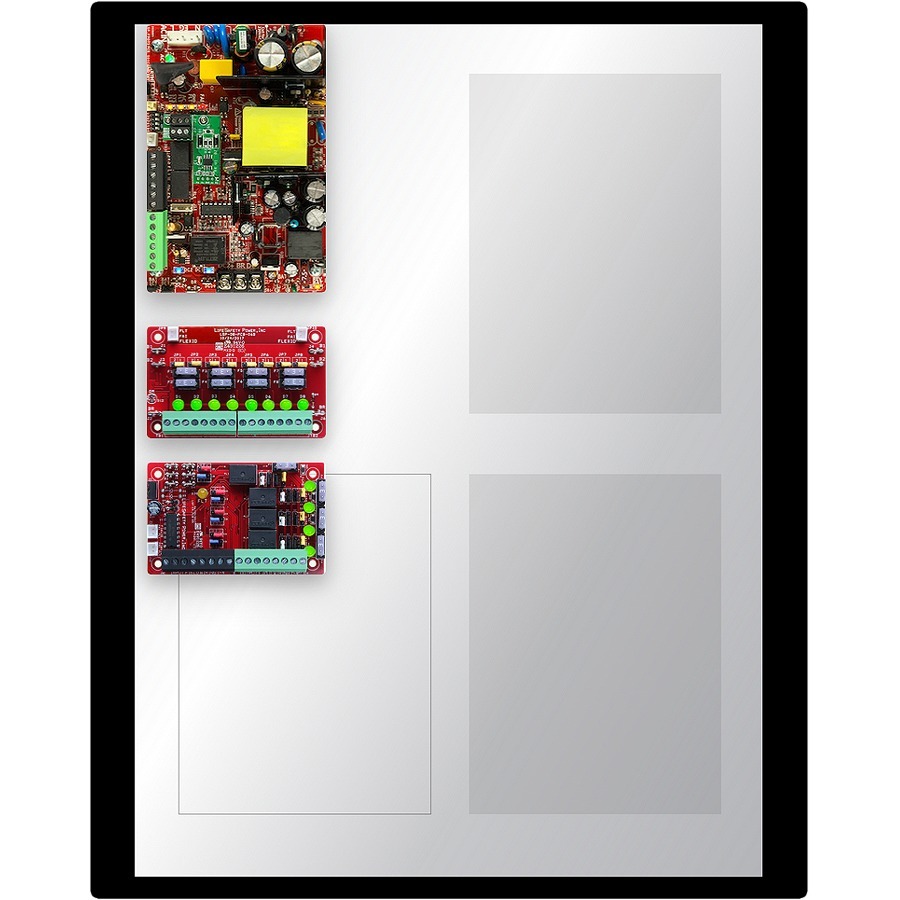

LifeSafety Power FPO75-C4D8E2M Accessory Overview
One power supply in one cabinet for basic single voltage requirements.
Products offered specifically for use with access control systems are preconfigured in one single enclosure, to provide the features and power levels needed in a modern access control system.
Product highlights
- FlexPower feature set
- Listed for Fire Alarm, Intrusion, Access Control, CCTV and Mass Notification
- Single or dual power supplies, each one user selectable for 12 or 24VDC
- Current capabilities to support any style lock or control panel
- Multiple output zones provide independent protection
- Dual voltage systems provide output zone programming for either system voltage
- Access control trigger inputs control outputs programmable for failsafe, failsecure, dry contact, or voltage output
- Battery charge capability to 80 Amphours
- Fire alarm interface for control of egress locks, programmable by output
- Full fault detection and reporting
- Field expandable without affecting agency listings
- Provided in a locking, steel enclosure
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC @ 6 A
- 24 V DC @ 3 A
Output Power:
75 W
Physical Characteristics
Form Factor:
Enclosure
Height:
16"
Width:
20"
Depth:
4.5"
Miscellaneous
Compatibility:
- Fire Alarm
- Intrusion
- Access Control
- CCTV
- Mass Notification
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO75-C4D8E2M Accessory is also known as
LSP-FPO75C4D8E2M
