Efficiency:
83%
Modular:
Yes
LifeSafety Power FPO75/75-C8D8E2 Power Device
Part Number:
FPO75/75-C8D8E2
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power FPO75/75-C8D8E2 Power Device Overview
The FLEXPOWER FPO75/75-C8D8E2 is a dual voltage, offline switchmode power supply-battery charger system specifically designed for the access control segment of the lifesafety industry.

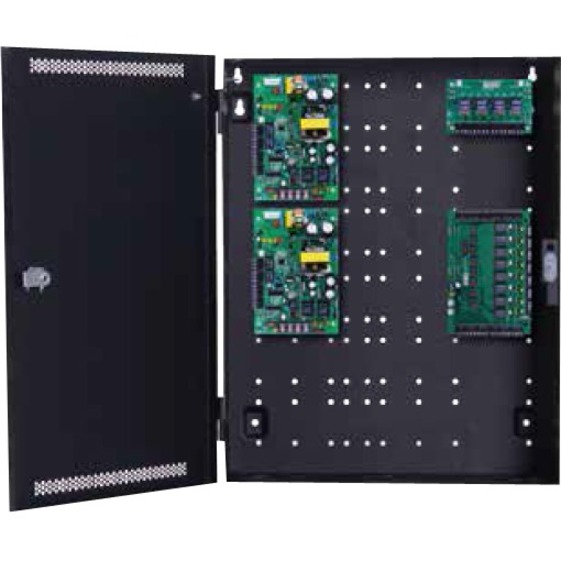

The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space, and provides two power supplies, each of which can be set to 12 or 24V.
Eight auxiliary outputs are provided for readers, REX devices, or other similar units with each output selectable for either power supply. Eight access controlled trigger inputs control eight relay based lock outputs, with each output selectable for either power supply, and programmable for fire alarm disconnect, failsafe, failsecure, or dry contact operation.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space, and provides two power supplies, each of which can be set to 12 or 24V.
Eight auxiliary outputs are provided for readers, REX devices, or other similar units with each output selectable for either power supply. Eight access controlled trigger inputs control eight relay based lock outputs, with each output selectable for either power supply, and programmable for fire alarm disconnect, failsafe, failsecure, or dry contact operation.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC @ 6 A
- 24 V DC @ 3 A
Output Power:
150 W
Physical Characteristics
Form Factor:
Enclosure
Height:
20"
Width:
16"
Depth:
4.5"
Weight (Approximate):
14 lb
Miscellaneous
Compatibility:
- Fire Alarm
- Intrusion
- Access Control
- CCTV
- Mass Notification
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO75/75-C8D8E2 Power Device is also known as
LSP-FPO7575C8D8E2
