Efficiency:
88%

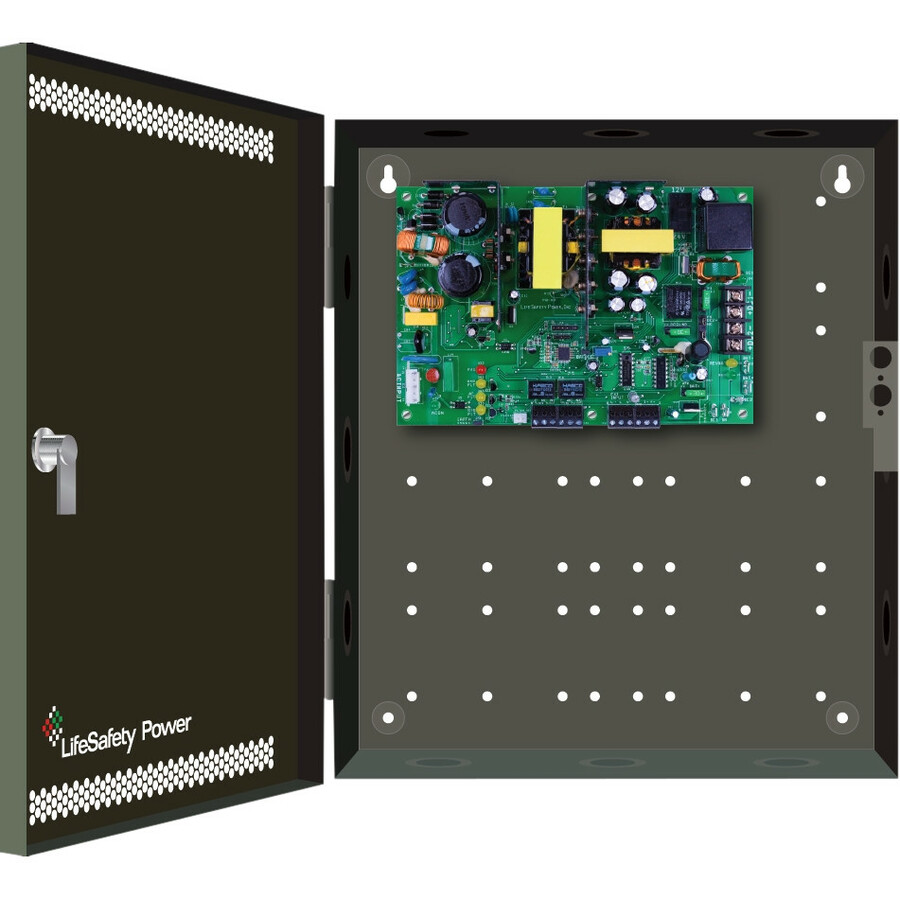

LifeSafety Power FPO250-E1 Power Device
Part Number:
FPO250-E1
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power FPO250-E1 Power Device Overview
One power supply in one cabinet for basic single voltage requirements.
Offered in several different power levels, from 25 to 250 watts, and supplied in a locking steel enclosure, these offline switch mode DC power supplies feature the FlexPower feature set, 12 or 24V DC selectability, multiple outputs for simultaneous system power and lock control, fire alarm interface for egress lock control, fault detection and reporting.
Offered in several different power levels, from 25 to 250 watts, and supplied in a locking steel enclosure, these offline switch mode DC power supplies feature the FlexPower feature set, 12 or 24V DC selectability, multiple outputs for simultaneous system power and lock control, fire alarm interface for egress lock control, fault detection and reporting.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
- 110 V AC
- 220 V AC
Input Voltage Range:
120 V AC - 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 20 A
- 24 V DC @ 10 A
Output Current:
- 20 A
- 10 A
Output Power:
250 W
Physical Characteristics
Height:
14"
Width:
12"
Depth:
4.5"
Weight (Approximate):
10.50 lb
Miscellaneous
Certifications & Standards:
- FCC
- ETL
- SIN
- CSFM
- UL 294
- UL 1481
- UL 603
- UL 2044
- UL 864
- UL 2572
- UL 1076
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
10 Year
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO250-E1 Power Device is also known as
LSP-FPO250E1
