Efficiency:
87%
Modular:
Yes
LifeSafety Power FPO150-E8S Accessory
Part Number:
FPO150-E8S
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power FPO150-E8S Accessory Overview

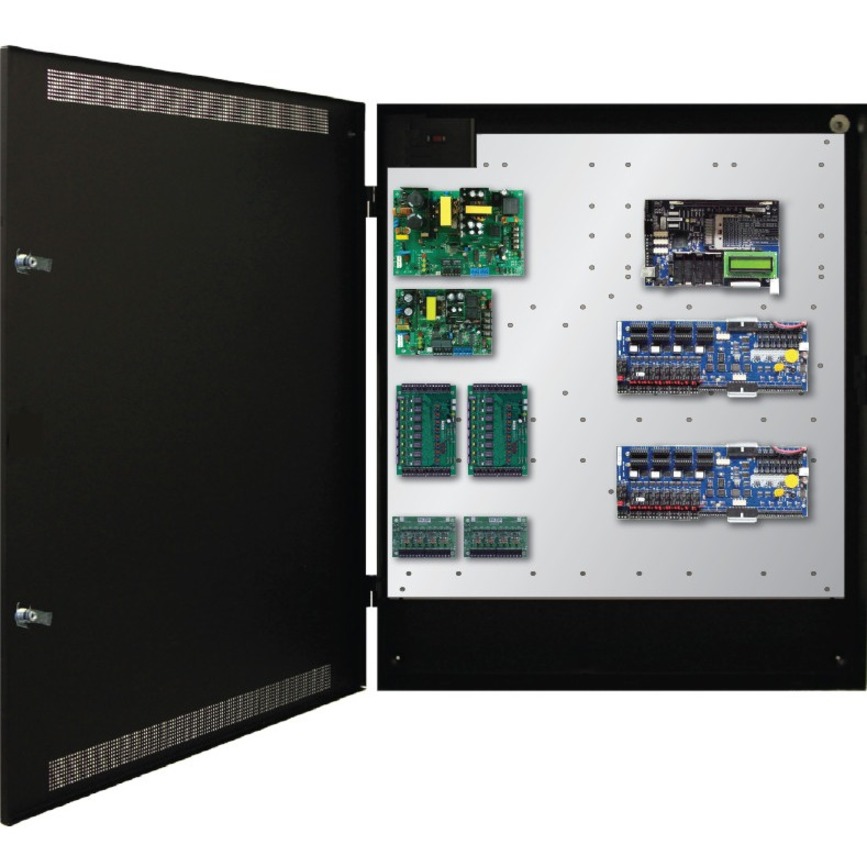

SCLASS™ Unified Power Systems are engineered to house FlexPower® power modules alongside SWH iSTAR™ access hardware in one compact listed enclosure.
This unit is a 12V and 24V DC dual voltage managed access power system.
Two M8 managed modules provide sixteen access managed inputs capable of voltage or dry contact activation, and sixteen outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and managedled by the integrated fire alarm interface circuit on the FPO. Two D8 modules provide sixteen auxiliary outputs and each output is configurable for 12 or 24VDC operation.
SCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
This unit is a 12V and 24V DC dual voltage managed access power system.
Two M8 managed modules provide sixteen access managed inputs capable of voltage or dry contact activation, and sixteen outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and managedled by the integrated fire alarm interface circuit on the FPO. Two D8 modules provide sixteen auxiliary outputs and each output is configurable for 12 or 24VDC operation.
SCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 12 A
- 24 V DC @ 6 A
- 12 V DC @ 20 A
- 24 V DC @ 10 A
Output Current:
- 12 A
- 6 A
- 20 A
- 10 A
Output Power:
400 W
Physical Characteristics
Form Factor:
Enclosure
Height:
36"
Width:
30"
Depth:
4.5"
Miscellaneous
Package Contents:
- FlexPower FPO150/250-2D82M8NL4E8S 150W/250W Power Supply
- Lock
- 2 x Keys
- Tamper Switch
Compatibility:
- Fire Alarm
- Intrusion
- Access Control
- CCTV
- Mass Notification
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO150-E8S Accessory is also known as
LSP-FPO150E8S
