Efficiency:
87%
Modular:
Yes
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power FPO150-C8PE1 Power Device Overview
The FLEXPOWER FPO150-C8E1 is a single voltage, offline switchmode power supply-battery charger system specifically designed for the access control segment of the lifesafety industry.

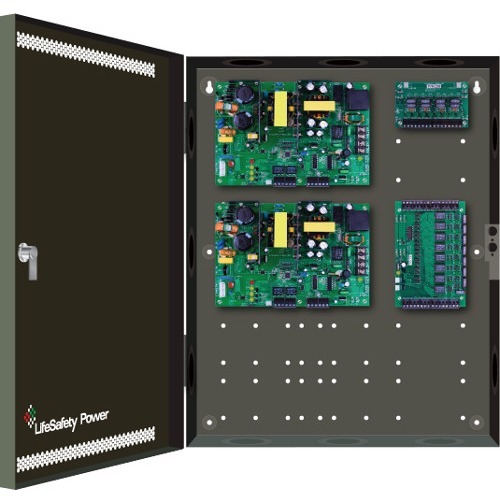

The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space, and provides one power supply which can
be set to 12 or 24V.
Eight access controlled trigger inputs control eight relay based lock outputs, with each output programmable for fire alarm disconnect, failsafe, failsecure, or dry contact operation.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
Technical Information
Power Description
Number of +12V Rails:
1
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC @ 12 A
- 24 V DC @ 6 A
Output Power:
150 W
Physical Characteristics
Height:
12"
Width:
14"
Depth:
4.5"
Weight (Approximate):
10 lb
Miscellaneous
Compatibility:
- Access Control
- Fire Alarm
- Security Systems
- CCTV
- Mass Notifictaion
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO150-C8PE1 Power Device is also known as
LSP-FPO150C8PE1
