Efficiency:
87%
Modular:
Yes
LifeSafety Power FPO150-C8E1 Power Device
Part Number:
FPO150-C8E1
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power FPO150-C8E1 Power Device Overview
The FLEXPOWER FPO150-C8E1 is a single voltage, offline switchmode power supply-battery charger system specifically designed for the access control segment of the lifesafety industry.

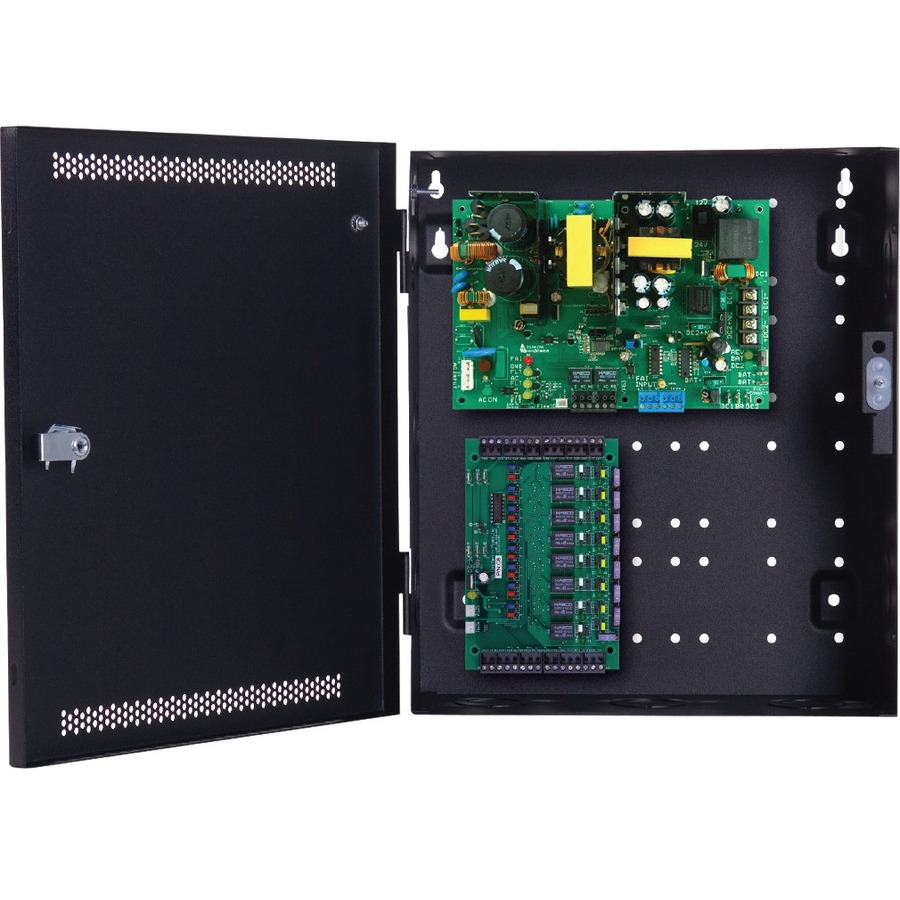

The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space, and provides one power supply which can
be set to 12 or 24V.
Eight access controlled trigger inputs control eight relay based lock outputs, with each output programmable for fire alarm disconnect, failsafe, failsecure, or dry contact operation.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
Technical Information
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
- 110 V AC
- 220 V AC
Input Voltage Range:
120 V AC - 230 V AC
Output Voltage:
- 12 V DC @ 12 A
- 24 V DC @ 6 A
Output Power:
150 W
Interfaces/Ports
Plug/Connector:
Voltage Selector Switch
Physical Characteristics
Height:
12"
Width:
14"
Depth:
4.5"
Weight (Approximate):
10 lb
Miscellaneous
Compatibility:
- Access Control
- Fire Alarm
- Security Systems
- CCTV
- Mass Notifictaion
Certifications & Standards:
- UL 294
- UL 1481
- ULC S318
- UL 603
- UL 2044
- ULC S319
- UL 864
- UL 2572
- ULC S527
- UL 1076
- CSA C22.2 #107.1
- CSA 22.2 #6095
- FCC Part 15, Subpart B
- CSFM
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO150-C8E1 Power Device is also known as
LSP-FPO150C8E1
