Efficiency:
87%
LifeSafety Power FPO150/250-2C82D8E8S Power Device
Part Number:
FPO150/250-2C82D8E8S
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power FPO150/250-2C82D8E8S Power Device Overview

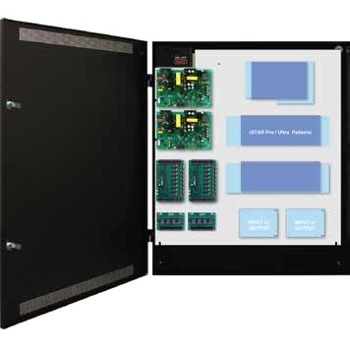

SCLASS™ Unified Power Systems are engineered to house FlexPower® power modules alongside SWH iSTAR™ access hardware in one compact listed enclosure.
This unit is a 12V and 24V DC dual voltage control access power system.
Two C8 control modules provide sixteen access control inputs capable of voltage or dry contact activation, and sixteen outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. Two D8 modules provide sixteen auxiliary outputs and each output is configurable for 12 or 24VDC operation.
SCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
This unit is a 12V and 24V DC dual voltage control access power system.
Two C8 control modules provide sixteen access control inputs capable of voltage or dry contact activation, and sixteen outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. Two D8 modules provide sixteen auxiliary outputs and each output is configurable for 12 or 24VDC operation.
SCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC @ 12 A
- 12 V DC @ 20 A
- 24 V DC @ 6 A
- 24 V DC @ 10 A
Output Power:
400 W
Physical Characteristics
Form Factor:
Enclosure
Height:
36"
Width:
30"
Depth:
4.5"
Miscellaneous
Package Contents:
- FlexPower FPO Power Supply
- Lock
- 2 x Keys
- Tamper Switch
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO150/250-2C82D8E8S Power Device is also known as
LSP-FPO1502502C82D05
