Efficiency:
91%
Protection Type:
- Fuse
- PTC
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power E2 Power Device Overview

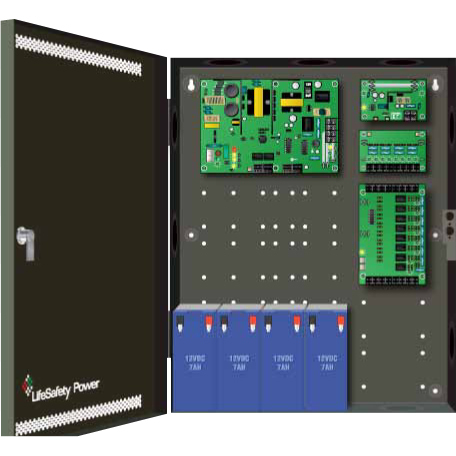

The FlexPower FPO150-B100C8D8E2 is an an offline switchmode power supply-battery charger system specifically designed for the access control segment of the lifesafety industry. Providing for 12V system power, eight access controlled trigger inputs, eight 12/24V access controlled lock outputs, and eight 12/24V auxiliary power distribution outputs, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space.
Each relay controlled, lock output is individually programmable for fire alarm disconnect, fail-safe, fail-secure, or NO/NC dry contact. Each auxiliary output is programmable for continuous power output or fail-safe, fail-secure voltage output.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
- 110 V AC
- 220 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Power:
150 W
Physical Characteristics
Form Factor:
Wall Mount
Height:
16"
Width:
20"
Depth:
4.5"
Weight (Approximate):
15 lb
Miscellaneous
Compatibility:
- Access Control Systems
- Fire Alarm Systems
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
10 Year
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power E2 Power Device is also known as
LSP-E2
