Device Supported:
- Power Supply
- Fire Alarm
LifeSafety Power D8P Products
Part Number:
D8P
Model:
Parts
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power D8P Products Overview

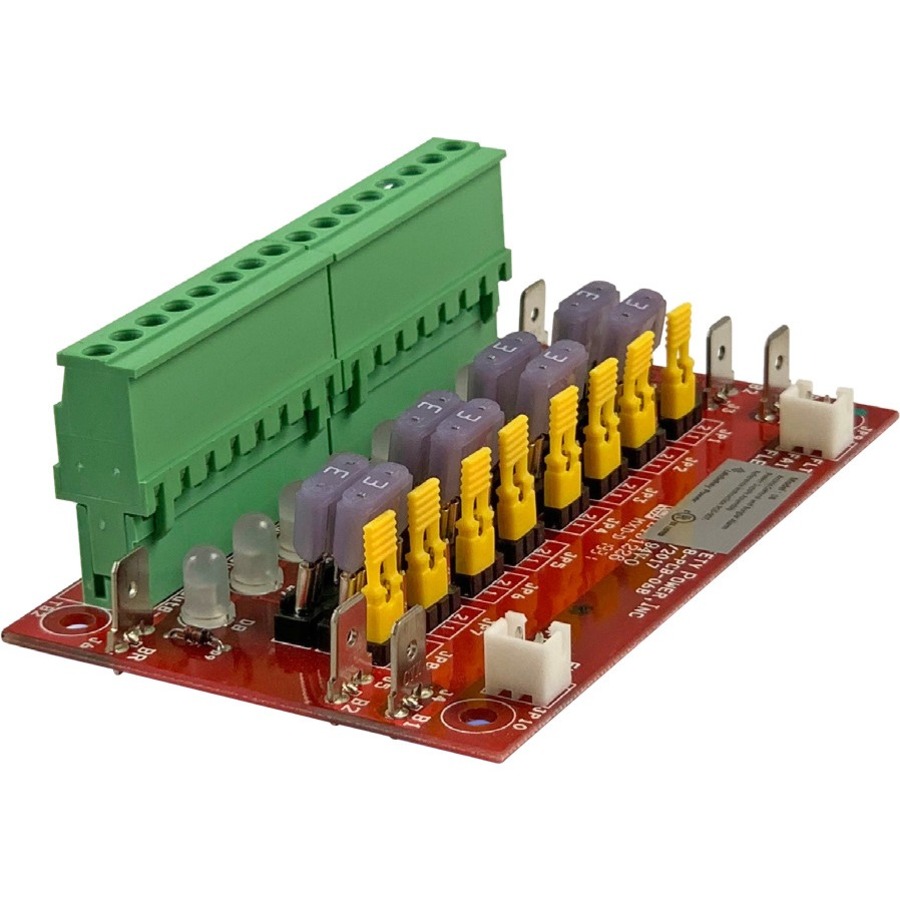

LifeSafety Power D8/D8P
8 Output, Power Distribution Module Fused (D8) or Class 2 Power Limited (D8P)
The D8 power distribution module adds 8 auxiliary power outputs to a FlexPower power supply and is typically supplied as part of a system, or purchased as an expansion piece to an existing system.
The D8 provides 8 auxiliary power outputs, each one individually protected by a fuse (D8) or or solid state circuit breaker (D8P).
Each output is programmable to either of the two voltages available when used in a FlexPower dual voltage power system, or to the continuous output or the resettable output of the power supply when used in a single voltage system.
D8 incorporates OutSmart technology - color changing output LEDs that visually indicate voltage level (Green for 12V, Blue for 24V).
Technical Information
Physical Characteristics
Height:
2.5"
Width:
2.5"
Depth:
1.5"
Weight (Approximate):
4 oz
Miscellaneous
Package Contents:
- FlexPower D8P Power Output Module
- Cables and Mounting Hardware
Additional Information:
Country of origin: United States. Country of origin is subject to change.
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Item Numbers
GTIN:
0811711020146
UPC:
811711020146
EAN:
0811711020146
Get help from a Barcoding Expert!
The LifeSafety Power D8P Products is also known as
LSP-D8P
