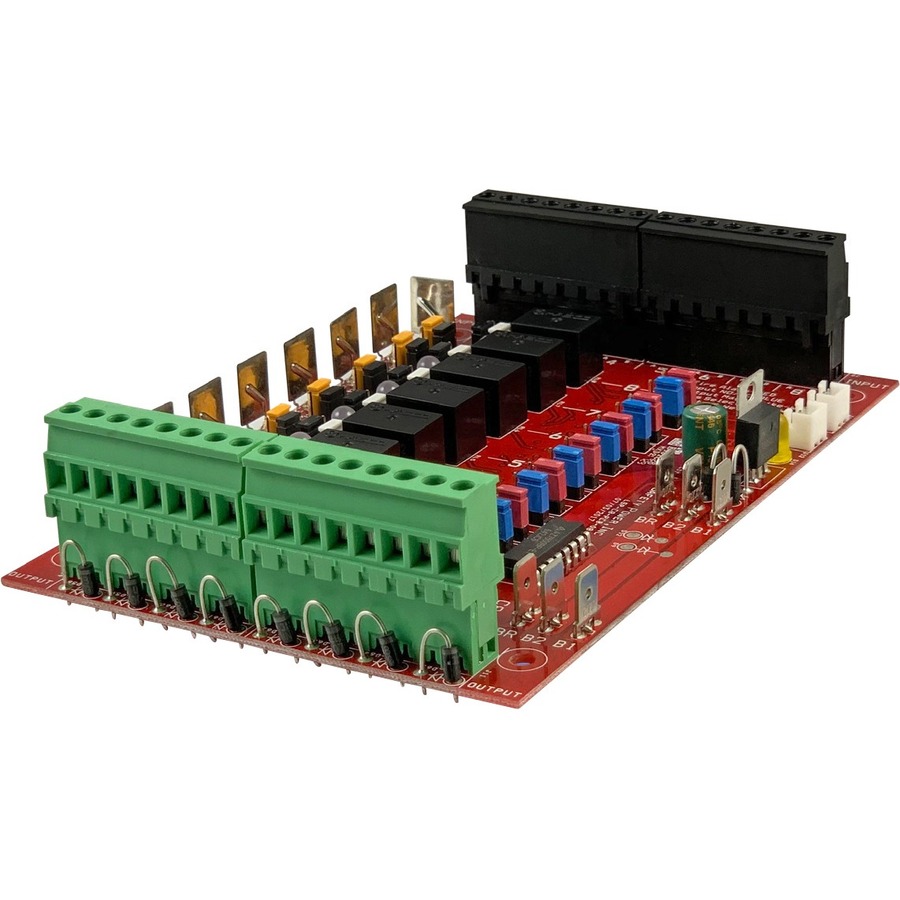

LifeSafety Power C8 Power Device

LifeSafety Power - 8 Relay Lock Control Outputs
$90.18
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power C8 Power Device Overview

C4 and C8 power controller modules provide 4 or 8 relay controlled, protected outputs and 4 or 8 access control inputs. When used in a single voltage system, each individual output may be programmed for a continuous output or to respond to the input from the access control system. A fire alarm interface to over ride the access control system for control of egress locks is provided for each output. When used in a dual voltage system, each individual output zone may be programmed to operate with either of the two system voltages.

Product highlights

  • Listed for Fire Alarm, Intrusion, Access Control, CCTV and Mass Notification
  • Provides 4 or 8 trigger input zones for interface to an access control system
  • Provides 4 or 8 relay controlled output zones
  • Accommodates failsafe or failsecure locking devices
  • Provides fire alarm interface for egress lock control
  • Monitors fuse integrity of output zones and reports fault to host power supply
  • Status LEDs report zone activity
  • Each output zone is fused at 3A or 2.5A for PTC circuit breakers
  • PTC versions are low voltage, Class 2 power limited
  • Allow selection by zone from two voltage sources
Technical Information
Device Supported:
  • Fire Alarm
  • Intrusion Detection System
  • Access Control System
  • CCTV Camera
  • Mass Notification System
Features:
  • Programmable
  • LED Indicator
Miscellaneous
Certifications & Standards:
  • UL 294 / UL 603 / UL 1076
  • FCC Part 15, Subpart B
  • ULC S318 / ULC S319
  • CSA C22.2 # 205

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The LifeSafety Power C8 Power Device is also known as LSP-C8
