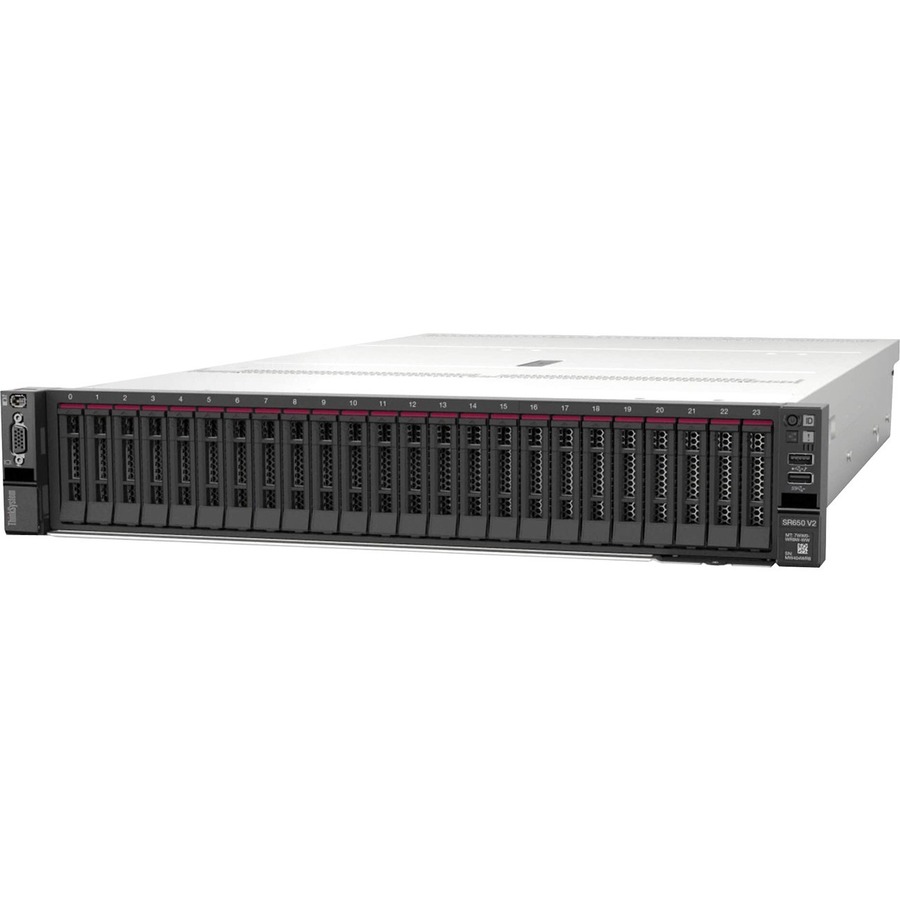

Lenovo 7Z73A06JNA Server

Part Number: 7Z73A06JNA
Model: Parts
$4,933.33
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Type
Xeon Silver
Processor Generation
3rd Gen

Product Description:

  Servers, Lenovo ThinkSystem, SR650 V2, 2U Rack Server, 1 x Intel Xeon Silver 4310 2.10 GHz, 32 GB RAM, Serial ATA/600, 12GBps SAS Controller, Intel C621A Chip, 2 Processor Support, Matrox G200 Up to 16 MB Graphic Card, Gigabit Ethernet, 1 x 750 W, Redundant Power Supply, Intel Optane Memory Ready

Lenovo Parts Products Model Overview

Products and parts from Lenovo.
Lenovo 7Z73A06JNA Server Overview

The Lenovo ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
Xeon Silver
Processor Generation:
3rd Gen
Processor Model:
4310
Processor Core:
Dodeca-core (12 Core)
Processor Speed:
2.10 GHz
Cache:
18 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C621A
Memory
Standard Memory:
32 GB
Memory Technology:
TruDDR4
Error Checking:
ECC
Total Number of Memory Slots:
32
Number of Occupied Memory Slots:
1
Intel Optane Memory Ready:
Yes
Storage
Optical Drive Type:
No
Controllers
Controller Type:
  • Serial ATA/600
  • 12Gb/s SAS
RAID Supported:
Yes
Display & Graphics
Graphics Controller Model:
G200
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
XCC remote management
Operating System
Operating System Supported:
  • Windows Server 2016
  • Windows Server 2019
  • Red Hat Enterprise Linux 7.9
  • Red Hat Enterprise Linux 8.2
  • Red Hat Enterprise Linux 8.3
  • SUSE Linux Enterprise Server 12 SP5
  • SUSE Linux Enterprise Server 15 SP2
  • Windows Server 2022
  • Red Hat Enterprise Linux 8.4
  • Red Hat Enterprise Linux 8.5
  • SUSE Linux Enterprise Server 15 SP3
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13
Maximum Power Supply Wattage:
750 W
Redundant Power Supply:
Yes
Hot Swappable Power Supply:
Yes
Physical Characteristics
Form Factor:
Rack
Rack Height:
2U
Height:
3.4"
Width:
17.5"
Depth:
30.1"
Weight (Approximate):
85.54 lb
Miscellaneous
Package Contents:
  • ThinkSystem SR650 V2 7Z73A06JNA Server
  • Toolless Slide Rail Kit
Security Features:
  • Chassis Intrusion Switch
  • Power-on Password
  • Administrator's Password
  • Trusted Platform Module (TPM), supporting TPM 2.0
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
Energy Efficiency Certification:
ENERGY STAR 3.0
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211501

Frequently Asked Questions

The Lenovo ThinkSystem SR650 V2 (model 7Z73A06JNA) features one Intel Xeon Silver 4310 processor running at 2.10 GHz, with support for up to two processors. This configuration delivers enterprise-grade performance for demanding warehouse and logistics applications. Contact us today to discuss processor upgrade options available from us.

This model ships with 32 GB of RAM and is built on the Intel C621A chipset architecture that supports enterprise-class memory configurations. For organizations requiring higher memory capacity for data-intensive operations, we offer memory upgrade options and can configure custom specifications. Visit barcodesinc.com or contact us today for memory expansion details.

The SR650 V2 supports Serial ATA/600 drives with a 12Gbps SAS controller for high-speed data access, making it suitable for both standard and performance-intensive storage requirements. This dual interface support allows flexibility in configuring storage solutions for warehouse management systems and logistics operations. We offer compatible storage configurations and can help you select the right setup for your needs.

Yes, the Lenovo ThinkSystem SR650 V2 is a 2U rack server designed for standard data center deployments, making it ideal for organizations consolidating IT infrastructure in warehouse and logistics facilities. The compact form factor allows efficient use of rack space while maintaining accessibility for maintenance. Contact us today to discuss rack implementation and deployment options available from us.

This server includes one 750W power supply with redundant power supply support, ensuring continuous operation during power fluctuations or maintenance windows critical for 24/7 logistics operations. The redundant configuration provides high availability for mission-critical warehouse management systems. Visit barcodesinc.com to explore power management solutions we offer.

The SR650 V2 features Gigabit Ethernet connectivity for reliable network communication in warehouse and distribution environments. The server supports network expansion through additional adapter options, allowing you to scale connectivity as your logistics infrastructure grows. Contact us today to discuss networking configurations and expansion options available from us.
