Lenovo 7Y51A08ANA Server

Part Number: 7Y51A08ANA
Model: Parts
$2,165.40
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
1
Number of Processors Installed
1
Processor Type
Xeon
Chipset Manufacturer
Intel

Product Description:

  Servers, Lenovo ThinkSystem, SR250, 1U Rack Server, 1 x Intel Xeon, Serial ATA/600 Controller, Intel C246 Chip, 1 Processor Support, 128 GB RAM Support, Matrox G200 Up to 16 MB Graphic Card, Gigabit Ethernet, Hot Swappable Bays

Lenovo Parts Products Model Overview

Products and parts from Lenovo.

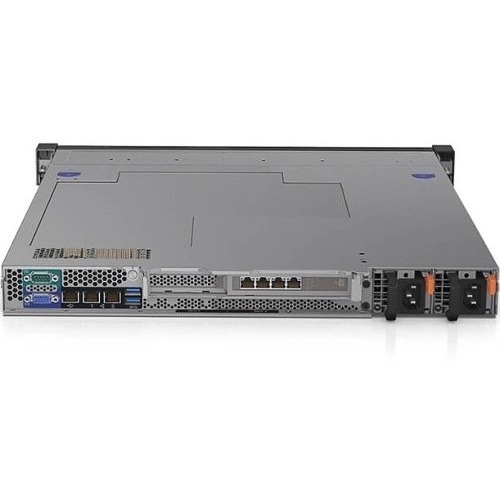

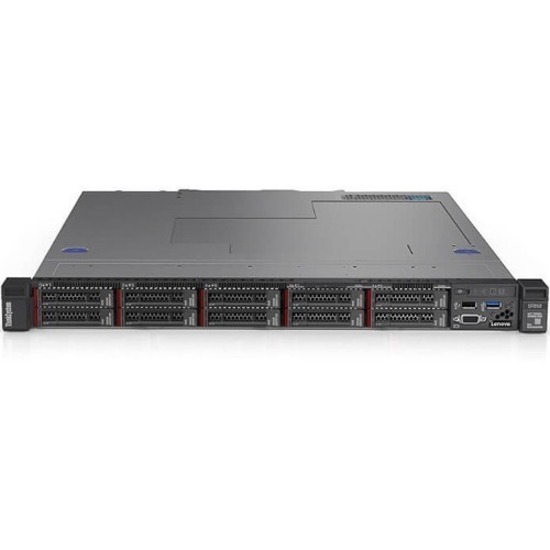

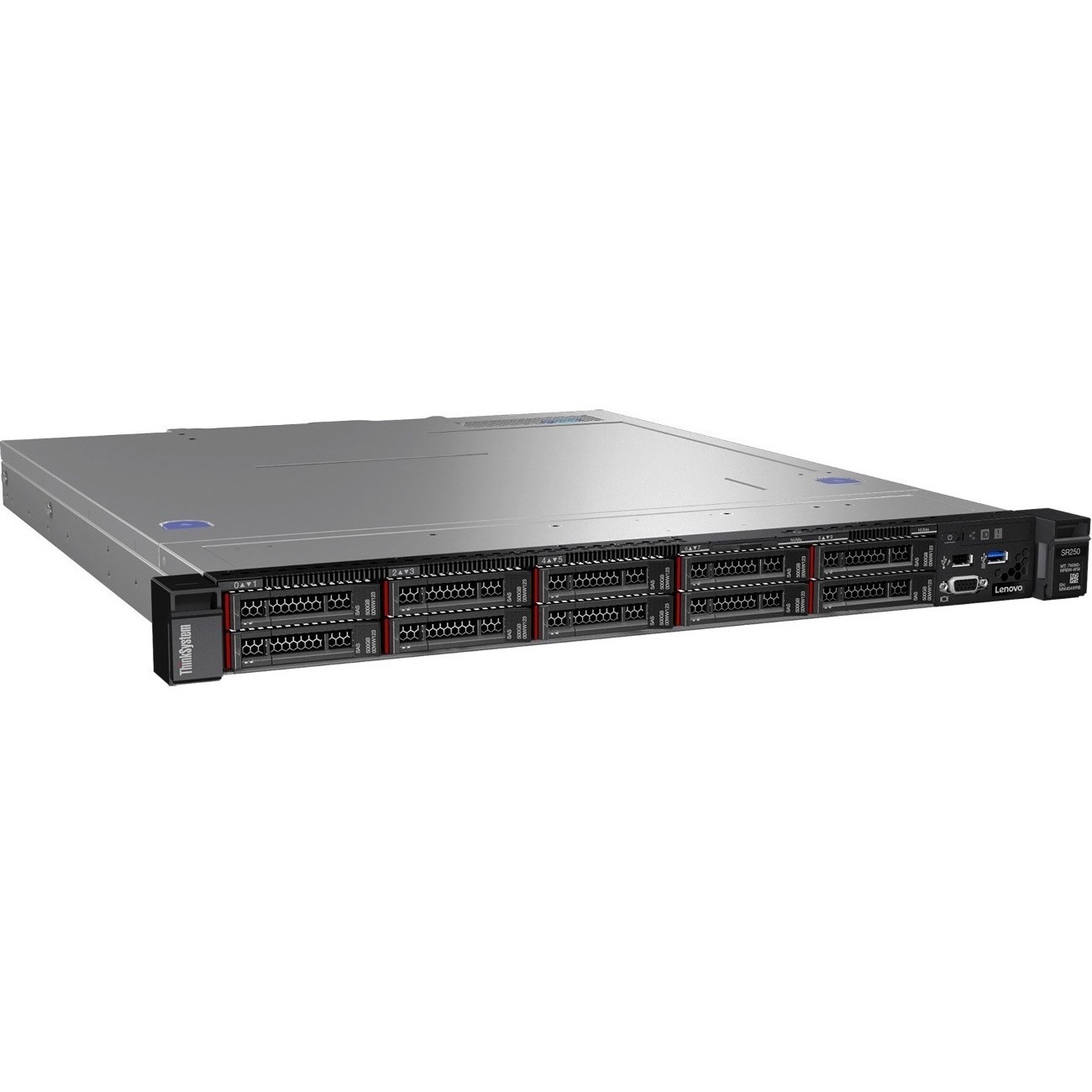

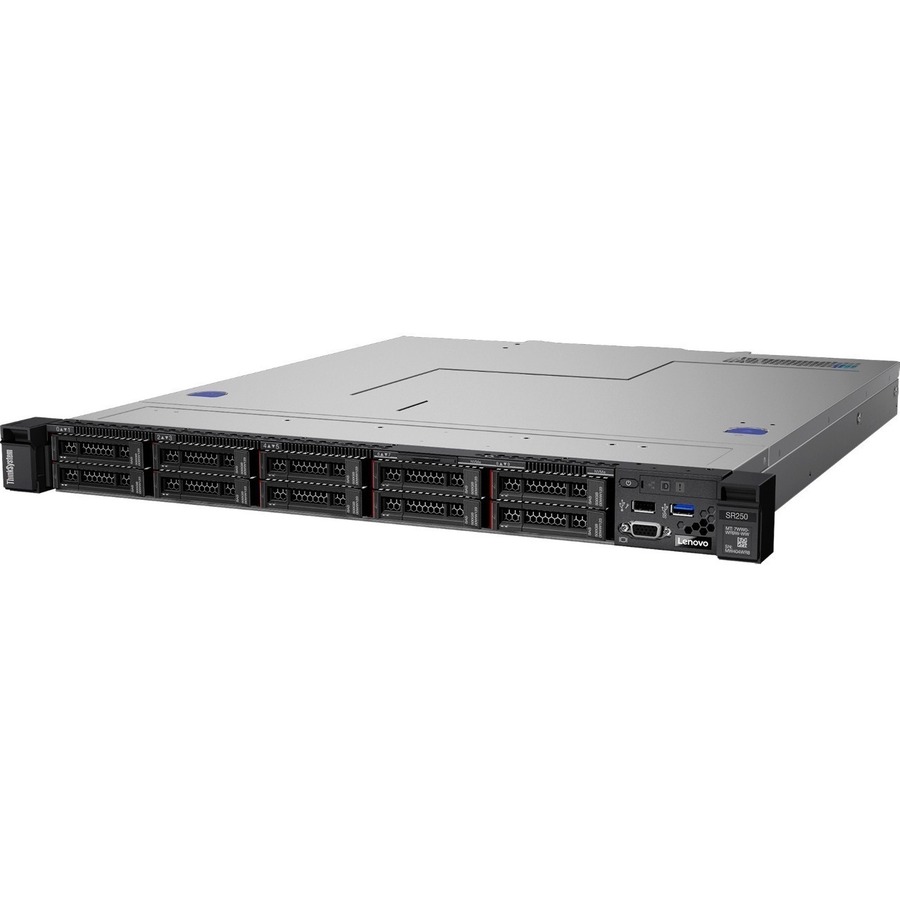

Lenovo 7Y51A08ANA Server Overview

Lenovo ThinkSystem SR250 is an affordable, single-socket 1U rack server for small and medium businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security.

The SR250 server offers a wide range of processors - from Intel Celeron to Intel Xeon E Series. With support for a memory capacity of up to 128 GB and internal storage of up to 32 TB, the SR250 server is an ideal choice for small- to medium-sized business, workgroups, distributed locations, and web-scale workloads.

Processor
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Type:
Xeon
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C246
Memory
Maximum Memory Supported:
128 GB
Memory Technology:
TruDDR4
Memory Clock Speed:
2.67 GHz
Error Checking:
ECC
Total Number of Memory Slots:
4
Storage
Optical Drive Type:
No
Controllers
Controller Type:
Serial ATA/600
I/O Expansions
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
3
PCI Express x4 (Gen 3.x) Slots:
1
PCI Express x8 (Gen 3.x) Slots:
2
PCI Express Details:
2x PCIe x8 1x PCIe x4
Display & Graphics
Graphics Controller Model:
G200
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
4
Number of USB 2.0 Ports:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
VGA:
Yes
Operating System
Operating System Supported:
  • Windows Server 2019
  • Windows Server 2016
  • Red Hat Enterprise Linux 8.1
  • Red Hat Enterprise Linux 8
  • Red Hat Enterprise Linux 7.7
  • Red Hat Enterprise linux 7.5
  • SUSE Linux Enterprise Server 15 SP1
  • SuSE Linux Enterprise Server 15
  • SUSE Linux Enterprise Server 12 SP5
  • SUSE Linux Enterprise Server 12 SP3
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Plug/Connector Type:
C13/C14
Hot Swappable Power Supply:
Yes
Physical Characteristics
Form Factor:
Rack
Rack Height:
1U
Height:
1.7"
Width:
17.1"
Depth:
19.6"
Weight (Approximate):
27.12 lb
Miscellaneous
Package Contents:
  • ThinkSystem SR250 7Y51A08ANA Server
  • Electronic Publications Flyer
Security Features:
  • Power-on password
  • Administrator's password
  • Secure firmware updates
  • Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting)
Environmentally Friendly:
Yes
Energy Efficiency Certification:
China Energy Conservation Program (CECP)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211501

Frequently Asked Questions

The Lenovo ThinkSystem SR250 is a 1U rack server featuring 1 Intel Xeon processor support with up to 128 GB RAM capacity, a Serial ATA/600 controller, Intel C246 chipset, and Gigabit Ethernet connectivity. It includes a Matrox G200 graphics card with up to 16 MB memory and hot-swappable drive bays for easy maintenance. We offer this server as part of our comprehensive Lenovo ThinkSystem lineup for enterprise deployments.

Yes, the ThinkSystem SR250 is well-suited for warehouse management and logistics environments with its 1U form factor optimized for rack density, hot-swappable bays for minimal downtime, and Gigabit Ethernet for reliable network connectivity. The server's robust Intel Xeon architecture and substantial RAM support make it ideal for running inventory management systems and RFID integration applications. Contact us today to discuss how this server can support your warehouse operations.

The SR250 supports Serial ATA/600 storage with hot-swappable drive bays, allowing for flexible capacity expansion without system downtime. Based on comparable ThinkServer configurations, SATA drives ranging from 250GB to 2TB at 7.2K RPM are available options. We can help you configure the right storage solution for your specific throughput and capacity requirements—visit barcodesinc.com or contact us today for detailed storage options.

The ThinkSystem SR250 includes Gigabit Ethernet connectivity compliant with IEEE 802.3ab standards for reliable high-speed network transmission. Additional networking adapters can be added to support dual-port configurations for redundancy and increased bandwidth in data-intensive warehouse environments. We offer compatible networking upgrades and can assist with your network architecture planning.

The Lenovo ThinkSystem SR250 supports up to 128 GB of RAM, providing substantial memory capacity for running multiple concurrent applications and handling large datasets typical in warehouse management and logistics operations. This memory capacity enables efficient processing of barcode scanning, RFID tracking, and inventory database operations. Contact us today to configure your server with the optimal RAM specifications for your workload.

The SR250 is a 1U rack-mount server designed for space-efficient data center and server room deployment, making it ideal for organizations with limited rack space. While specific power consumption details require consultation, comparable ThinkSystem models feature 800W 90% efficient power supplies. Visit barcodesinc.com or contact our team for detailed physical specifications and power requirements for your infrastructure planning.
