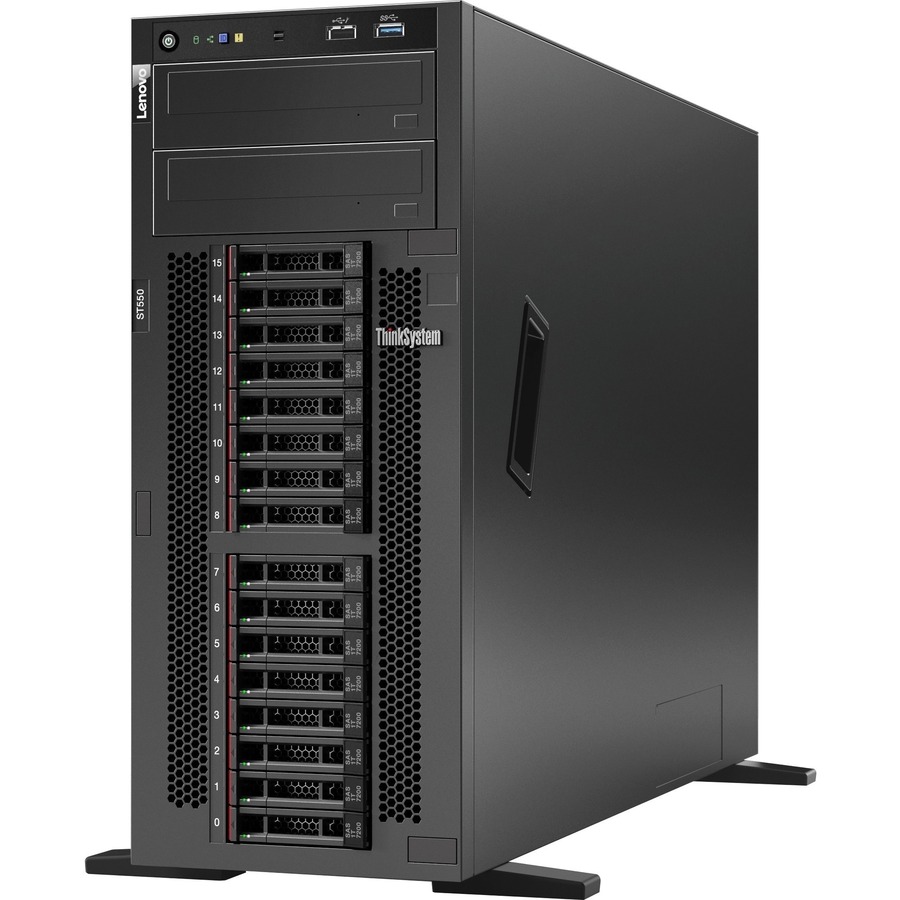

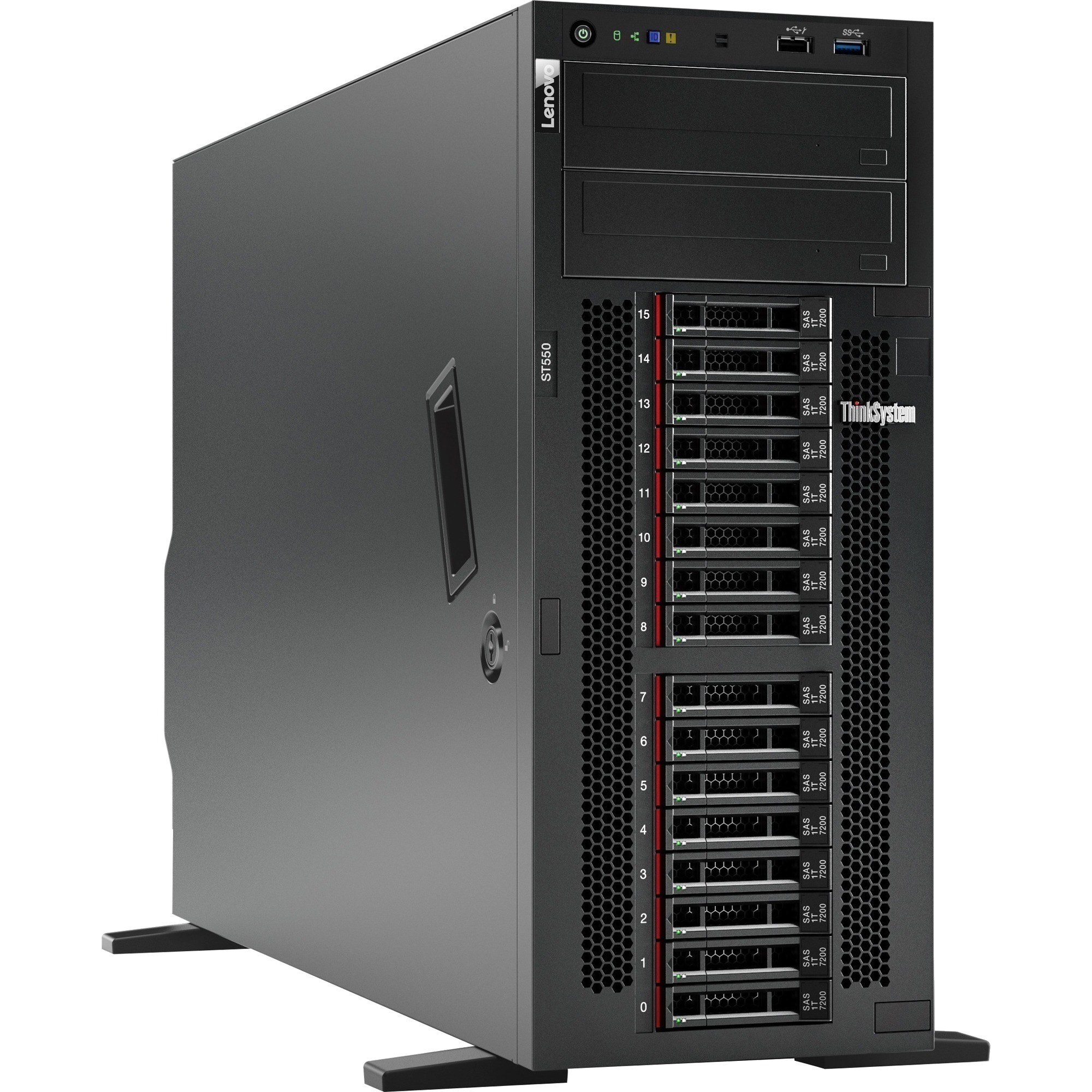

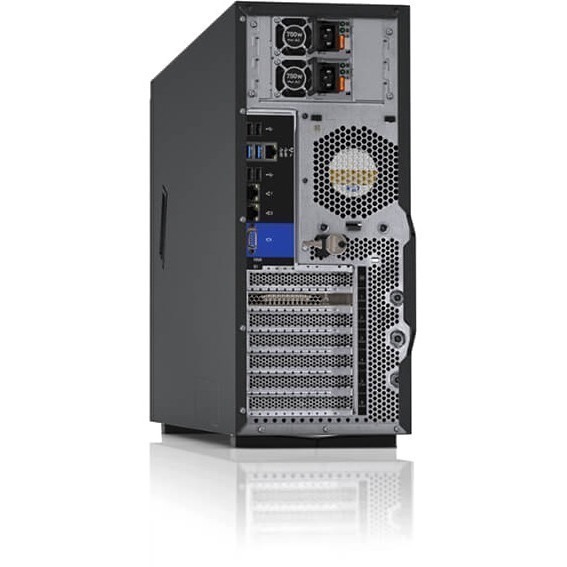

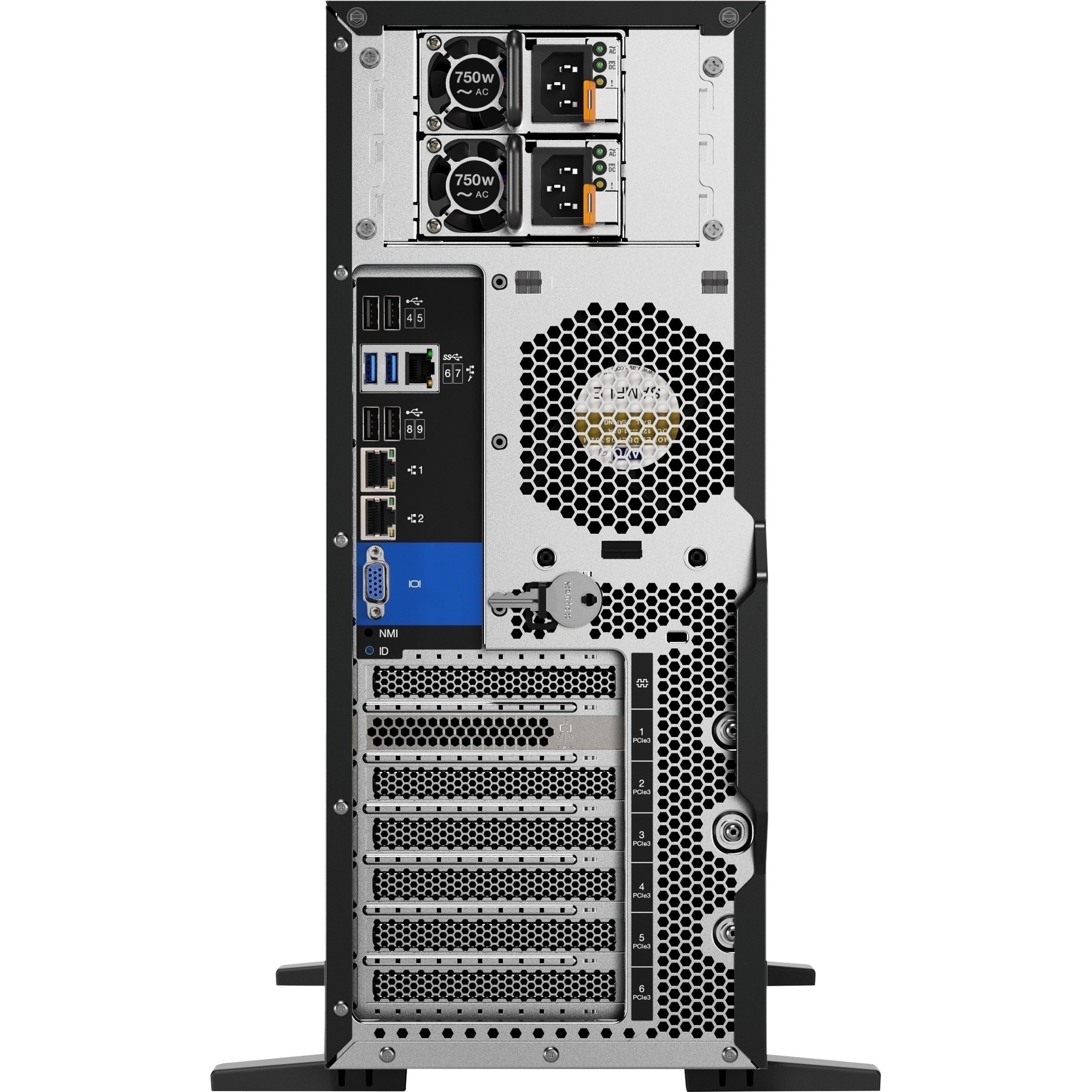

Lenovo 7X10A0EJNA Server

Part Number: 7X10A0EJNA
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Manufacturer
Intel
Processor Type
Xeon Bronze

Product Description:

  Servers, Lenovo ThinkSystem, ST550, 4U Tower Server, 1 x Intel Xeon Bronze 3204 1.90 GHz, 32 GB RAM, 12GBps SAS, Serial ATA/600 Controller, Intel C624 Chip, 2 Processor Support, 768 GB RAM Support, Matrox G200 Up to 16 MB Graphic Card, Gigabit Ethernet, 4 x LFF Bay(s), Hot Swappable Bays, 1 x 750 W
Explore all Lenovo Parts Products
Add to Quote
Lenovo 7X10A0EJNA Server
Lenovo 7X10A0EJNA Server
Lenovo 7X10A0EJNA Server
Lenovo 7X10A0EJNA Server
Lenovo 7X10A0EJNA Server Lenovo 7X10A0EJNA Server Lenovo 7X10A0EJNA Server Lenovo 7X10A0EJNA Server

Lenovo Parts Products Model Overview

Products and parts from Lenovo.
Lenovo 7X10A0EJNA Server Overview
The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. Now available with second-generation Intel Xeon Scalable processors, the ST550 is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices.
Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon Bronze
Processor Generation:
2nd Gen
Processor Model:
3204
Processor Core:
Hexa-core (6 Core)
Processor Speed:
1.90 GHz
Cache:
8.25 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C624
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
768 GB
Memory Technology:
TruDDR4
Memory Clock Speed:
2.93 GHz
Error Checking:
ECC
Number of Total Memory Slots:
12
Number of Occupied Memory Slots:
1
Signal Processing:
Registered (Buffered)
Storage
Total Hard Drive Capacity:
No
Controllers
Controller Type:
  • 12Gb/s SAS
  • Serial ATA/600
Controller Model:
5350-8i
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
4
Number of 3.5" Bays:
4
Number of LFF Bays:
4
Hot Swappable Bays:
Yes
Number of Total Expansion Slots:
6
PCI Express x8 (Gen 3.x) Slots:
2
PCI Express x16 (Gen 3.x) Slots:
4
PCI Express Details:
Slot 1: PCIe 3.0 x8 (25W), Slot 2: PCIe 3.0 x16 (75W), Slot 3: PCIe 3.0 x16 (75W), Slot 4: PCIe 3.0 x16 (x8 wired) (25W), Slot 5: PCIe 3.0 x16 (75W), Slot 6: PCIe 3.0 x8 (x4 wired) (25W)
Display & Graphics
Graphics Controller Manufacturer:
Matrox
Graphics Controller Model:
G200
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
9
Number of USB 2.0 Ports:
5
Number of USB 3.0 Ports:
4
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
3
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
XClarity Controller (XCC) Enterprise
Operating System
Operating System Supported:
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Red Hat Enterprise Linux 7.6
  • Red Hat Enterprise Linux 7.7
  • Red Hat Enterprise Linux 7.8
  • Red Hat Enterprise Linux 7.9
  • Red Hat Enterprise Linux 8
  • Red Hat Enterprise Linux 8.1
  • Red Hat Enterprise Linux 8.2
  • Red Hat Enterprise Linux 8.3
  • Red Hat Enterprise Linux 8.4
  • Red Hat Enterprise Linux 8.5
  • Red Hat Enterprise Linux 8.6
  • Red Hat Enterprise Linux 9.0
  • SUSE Linux Enterprise Server 12 SP4
  • SUSE Linux Enterprise Server 12 SP5
  • SuSE Linux Enterprise Server 15
  • SUSE Linux Enterprise Server 15 SP1
  • SUSE Linux Enterprise Server 15 SP2
  • SUSE Linux Enterprise Server 15 SP3
  • SUSE Linux Enterprise Server 15 SP4
Operating System:
No
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13
Maximum Power Supply Wattage:
750 W
Hot Swappable Power Supply:
Yes
Physical Characteristics
Form Factor:
Tower
Rack Height:
4U
Height:
17.2"
Width:
6.9"
Depth:
26"
Weight (Approximate):
79.37 lb
Miscellaneous
Package Contents:
  • ThinkSystem ST550 7X10A0EJNA Server
  • Power Cord
Security Features:
  • Power-on Password
  • Administrator's Password
  • Trusted Platform Module (TPM)
  • Supporting TPM 1.2 or TPM 2.0
  • Kensington Cable Slot
  • Lockable Side Cover
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • ENERGY STAR 2.1
  • RoHS
  • ErP Lot 3
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211501
