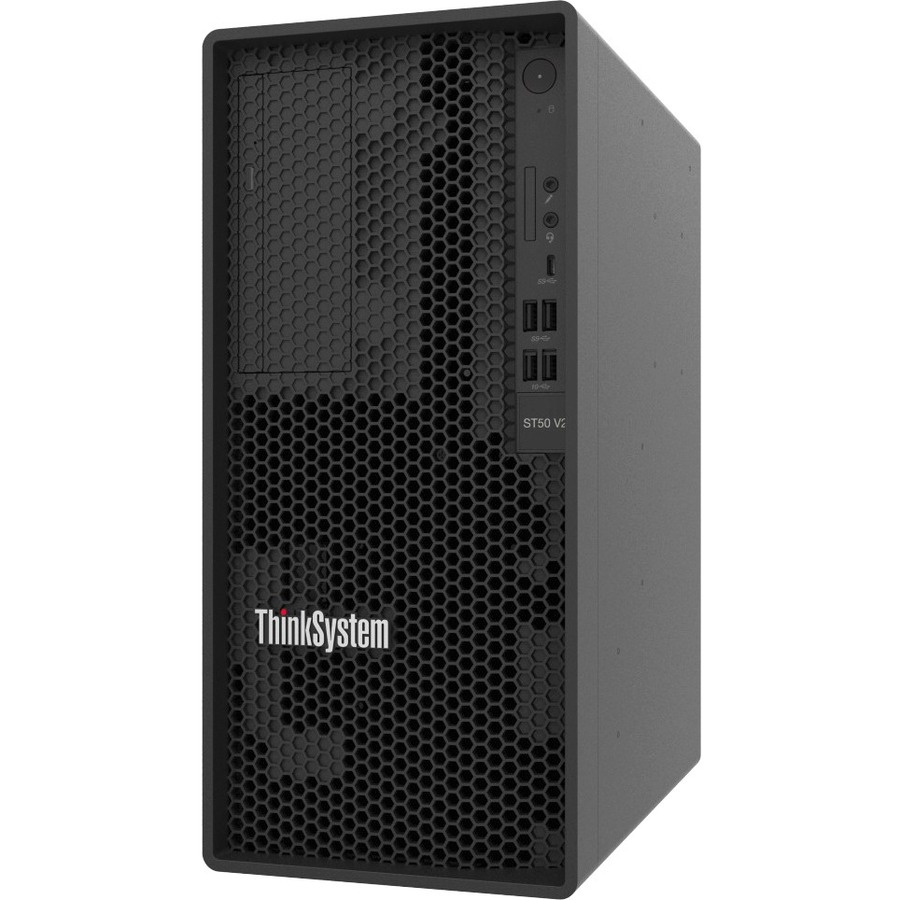

Lenovo 7D8JA00ZNA Server

Part Number: 7D8JA00ZNA
Model: Parts
Add to My Shopping List Add to Compare
$2,211.94
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
1
Number of Processors Installed
1
Processor Type
Xeon
Processor Model
E-2324G

Product Description:

  Servers, Lenovo ThinkSystem, ST50 V2, Tower Server, 1 x Intel Xeon E-2324G 3.10 GHz, 16 GB RAM, Serial ATA/600 Controller, Intel C256 Chip, 1 Processor Support, 64 GB RAM Support, Intel Graphic Card, Gigabit Ethernet, 1 x LFF Bay(s), 1 x 300 W
Explore all Lenovo Parts Products
Add to Quote
Lenovo 7D8JA00ZNA Server
Lenovo 7D8JA00ZNA Server

Lenovo Parts Products Model Overview

Products and parts from Lenovo.
Lenovo 7D8JA00ZNA Server Overview

The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".

This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.

Processor
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Type:
Xeon
Processor Model:
E-2324G
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.10 GHz
Cache:
8 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C256
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
TruDDR4
Memory Clock Speed:
3.20 GHz
Error Checking:
ECC
Total Number of Memory Slots:
4
Number of Occupied Memory Slots:
1
Signal Processing:
Unregistered (Unbuffered)
Storage
Total Hard Drive Capacity:
No
Controllers
Controller Type:
Serial ATA/600
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
2
Number of External 5.25" Bays:
1
Number of 3.5" Bays:
1
Number of LFF Bays:
1
Total Number of Expansion Slots:
3
PCI Express x1 (Gen 3.x) Slots:
1
PCI Express Details:
Slot 1: PCIe 4.0 x16 full-height half-length (FHHL) Slot 2: PCIe 3.0 x1 FHHL Slot 3: PCIe 3.0 x4 (physical connector is x16) FHHL
Display & Graphics
Graphics Memory Accessibility:
Shared
Graphics Memory Technology:
DDR4 SDRAM
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
9
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Remote Management:
Yes
Remote Management Controller:
XClarity
DisplayPort:
Yes
Number of DisplayPorts:
2
Operating System
Operating System Supported:
  • Windows Server 2019
  • Windows Server 2022
  • Red Hat Enterprise Linux 8.4
  • SUSE Linux Enterprise Server 15 SP3
  • SuSE Linux Enterprise Server 15
Operating System:
No
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
1
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13
Maximum Power Supply Wattage:
300 W
Hot Swappable Power Supply:
No
Physical Characteristics
Form Factor:
Tower
Height:
14.8"
Width:
6.7"
Depth:
12.4"
Weight (Approximate):
20.72 lb
Miscellaneous
Package Contents:
  • ThinkSystem ST50 V2 7D8JA00ZNA Server
  • Documentation Flyer
  • Power Cord
Security Features:
  • Chassis Intrusion Switch
  • Power-on Password
  • Administrator's Password
  • Trusted Platform Module (TPM), supporting TPM 2.0
Environmentally Friendly:
Yes
Energy Efficiency Certification:
China Energy Conservation Program (CECP)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211501

Frequently Asked Questions

The Lenovo ThinkSystem ST50 V2 (model 7D8JA00ZNA) is equipped with 1 x Intel Xeon E-2324G processor running at 3.10 GHz. This single-socket configuration supports up to 64 GB of RAM, making it suitable for small to medium-sized business applications and workloads that require reliable server performance.

The Lenovo ThinkSystem ST50 V2 comes standard with 16 GB of RAM and supports up to 64 GB total memory capacity. The server uses DDR3 memory modules, and we offer compatible upgrade options available from us to expand your system's performance as your needs grow.

This tower server features 1 x LFF (Large Form Factor) bay and includes a Serial ATA/600 controller for flexible storage configuration. We offer compatible SATA hard drives in various capacities to support your data storage requirements, from 250GB up to 2TB options.

The Lenovo ThinkSystem ST50 V2 includes Gigabit Ethernet connectivity for high-speed network communication. The server supports IEEE 802.3ab standard Gigabit Ethernet, enabling reliable connectivity for your warehouse, logistics, or IT infrastructure needs.

Yes, the Lenovo ThinkSystem ST50 V2 is designed as a compact tower server ideal for small to medium-sized businesses and remote office deployments. With its single Intel Xeon processor, expandable memory up to 64 GB, and flexible storage options, it provides reliable performance for file serving, virtualization, and business applications. Contact us today to discuss how this server can meet your specific business requirements.

The Lenovo ThinkSystem ST50 V2 includes an integrated Intel graphics card, providing basic display output and system management capabilities. For applications requiring dedicated graphics performance, we offer compatible adapter options available from us to enhance your server's capabilities.
