Lenovo 70F10000UX Products

Part Number: 70F10000UX
Model:

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Hard Drives Supported
12
Number of Solid State Drive Supported
4
Number of Total Expansion Bays
16
Number of 3.5" Bays
12

Product Description:

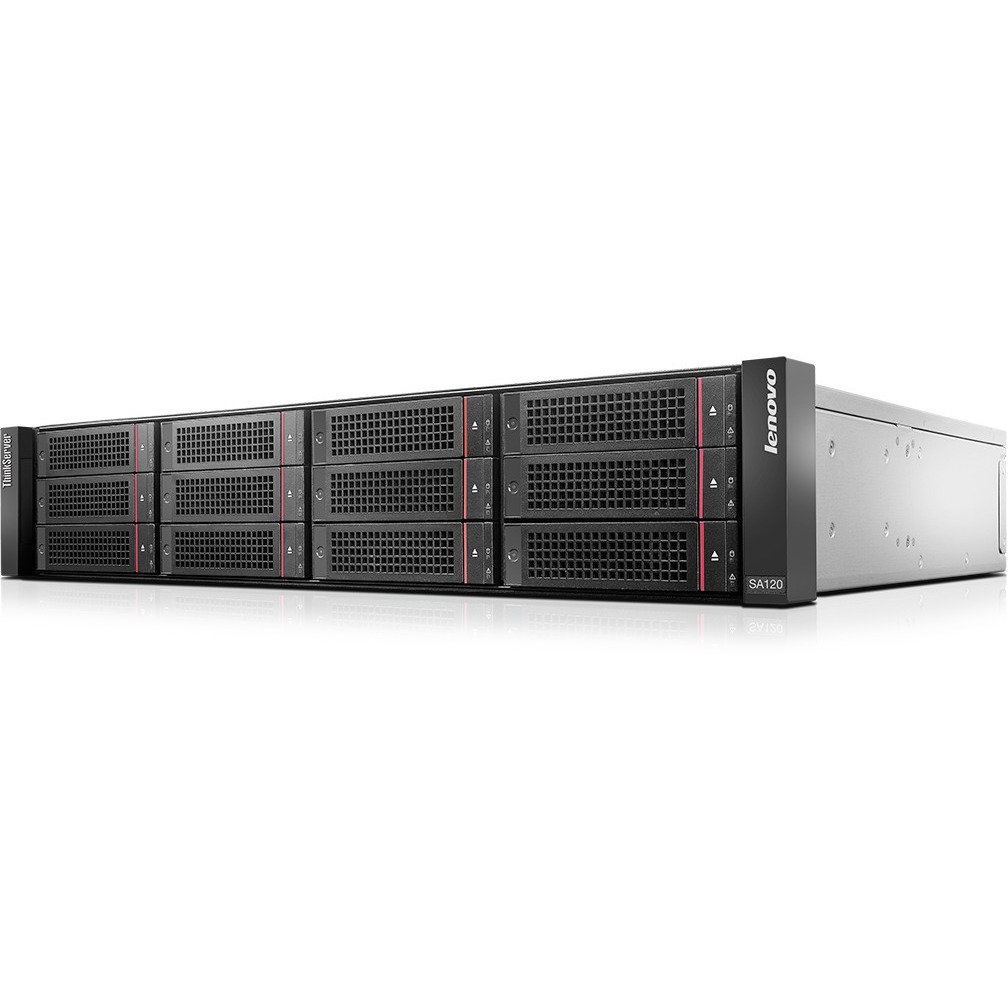

  Lenovo-IMSourcing ThinkServer SA120 DAS Array with Single Controller - 12 x HDD Supported - 4 x SSD Supported - 6Gb/s SAS, Serial ATA/600 Controller - 16 x Total Bays - 12 x 3.5" Bay - 4 x 2.5" Bay - 2U - Rack-mountable

Lenovo Parts Products Model Overview

Products and parts from Lenovo.
Lenovo 70F10000UX Products Overview

Modular and Scalable
ThinkServer SA120 direct attach storage offers enormous expansion, with twelve 3.5" high capacity front-panel drive bays, up to two I/O controllers and four optional rear-panel 2.5" SSD drive bays to improve throughput. Coupled with ThinkServer host servers configured with LSI® CacheCade technology, these SSD drives enable the ThinkServer SA120 to provide additional cache, low latency and deliver amazing IOPS improvements. This clever, scalable design provides an optimal tiered storage solution.

Customer Focused Design
With legendary Think design and enterprise-grade reliability, the ThinkServer SA120 provides peace of mind. Its innovative storage design combines large capacity near-line 3.5" drives and lightning-fast 2.5" drives to provide a perfect solution for customers who require high performance and maximum capacity at a fraction of the cost and complexity of typical storage area network choices. Servicing the SA120 is easy with tool-less components, hot-swap fans and power supplies. It shares common parts with ThinkServer rack and tower servers for simplified management.


Impressive Features, Great Value
Featuring the latest high performance SSD choices from Intel®, ThinkServer SA120 delivers the fast response and low latency you demand. ThinkServer SA120 offers high efficiency 80 PLUS redundant power supplies to keep your business running smoothly and to reduce power consumption. Plus, if you need fast, professional service help, Lenovo provides an impressive array of warranty upgrades and rapid-response services. Combining these rich features with competitive prices and a standard 3-year warranty, the ThinkServer SA120 offers an impressive value.

Storage
Number of Hard Drives Supported:
12
Number of Solid State Drive Supported:
4
I/O Expansions
Number of Total Expansion Bays:
16
Number of 3.5" Bays:
12
Number of 2.5" Bays:
4
Controllers
Controller Type:
  • 6Gb/s SAS
  • Serial ATA/600
Interfaces/Ports
Host Interface:
Mini-SAS
Power Description
Power Source:
Power Supply
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
550 W
Physical Characteristics
Height:
3.4"
Width:
17.6"
Depth:
15.2"
Form Factor:
Rack-mountable
Rack Height:
2U
Weight (Approximate):
48.40 lb
Miscellaneous
Package Contents:
  • ThinkServer SA120 DAS Array with Single Controller
  • 0.5m SAS Cable
Certifications & Standards:
80PLUS Gold
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0014445038375, 0888440549880
UPC: 014445038375, 888440549880
EAN: 0014445038375, 0888440549880
UNSPSC: 43201802
