Lenovo 70BR9001WW Products

Part Number: 70BR9001WW
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Hard Drives Supported
12
Number of Hard Drives Installed
4
Total Hard Drive Capacity Installed
8 TB
Hard Drive Interface
Serial ATA

Product Description:

  EMC PX12-450R NETWORK STORAGE

Lenovo Parts Products Model Overview

Products and parts from Lenovo.
Lenovo 70BR9001WW Products Overview

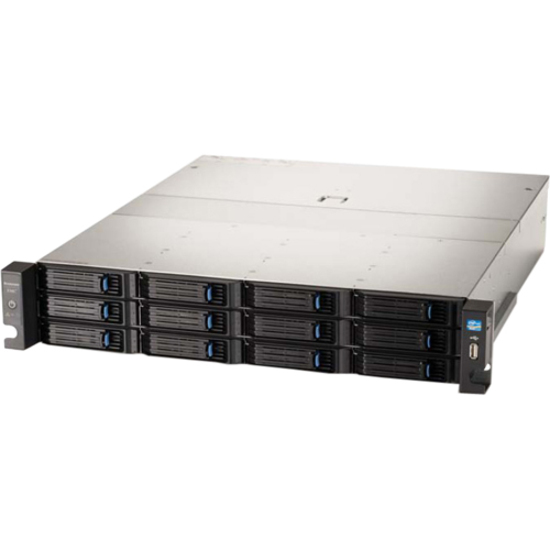

The Iomega® StorCenter™ px12-450r Network Storage Array is a powerful network storage solution offering the highest levels of performance and advanced data protection for small- to medium-sized businesses and the distributed enterprise. Powered by enterprise-class EMC® storage technology, the StorCenter px12-450r is ideal for production data stores, server virtualization, backup-to-disk target and video surveillance. The StorCenter px12-450r is available in diskless, partially populated or fully populated in a single array. The px12-450r provides the superior performance and reliability that you need for your mission critical data and with built-in McAfee® VirusScan® Enterprise, your data is safe from viruses and other malicious threats. The StorCenter px12-450r includes many enterprise-class features, such as the EMC Atmos Cloud Connector, EMC Avamar data deduplication as well as device-to-device data replication to ensure data integrity at both the source and the replication target. Businesses will appreciate extremely high throughput with quad-Gigabit Ethernet connectivity and an Intel® Quad-Core Xeon® Processor plus link aggregation (port bonding), Server Class hard drives, and the option of solid state drives.

Storage
Number of Hard Drives Supported:
12
Number of Hard Drives Installed:
4
Total Hard Drive Capacity Installed:
8 TB
Hard Drive Interface:
Serial ATA
Hard Drive RPM:
7200
Hard Drive Configuration:
4 x 2TB
Processor & Chipset
Number of Processors Supported:
1
Processor Type:
Xeon
Processor Model:
E3-1265LV2
Processor Core:
Quad-core (4 Core)
Processor Speed:
2.50 GHz
Memory
Standard Memory:
8 GB
Memory Technology:
DDR3 SDRAM
I/O Expansions
Number of Total Expansion Bays:
12
Number of 3.5" Bays:
12
Controllers
Controller Type:
Serial ATA/300
RAID Supported:
Yes
RAID Levels:
0, 1, 5, 6, 10
Interfaces/Ports
Total Number of USB Ports:
3
Number of USB 2.0 Ports:
3
Network (RJ-45):
Yes
Number of Serial Ports:
12
Software
Operating System:
EMC LifeLine
Software Included:

StorCenter Manager Software

Management & Protocols
Protocols:
  • iSCSI
  • CIFS/SMB
  • NFS
  • AFP
  • Bonjour
  • FTP
  • SFTP
  • TFTP
  • HTTP
  • HTTPS
  • WEBDAV
  • DFS
  • SNMP
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
3.5"
Width:
19"
Depth:
21.4"
Form Factor:
Rack-mountable
Rack Height:
2U
Weight (Approximate):
36.56 lb
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0887770964905
UPC: 887770964905
EAN: 0887770964905
UNSPSC: 43201800
