Lenovo 62DDGAR6US Monitor

Part Number: 62DDGAR6US
Model: Parts
Add to My Shopping List Add to Compare
$2,342.21
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Screens
1
Screen Size Class
40"
Viewable Screen Size
39.7"
Screen Mode
WUHD

Product Description:

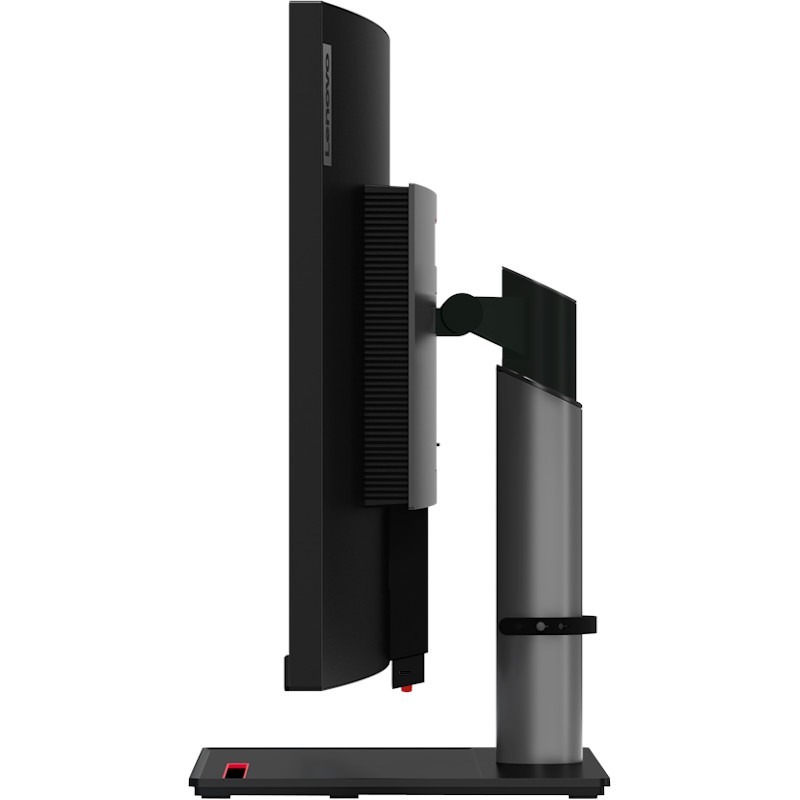

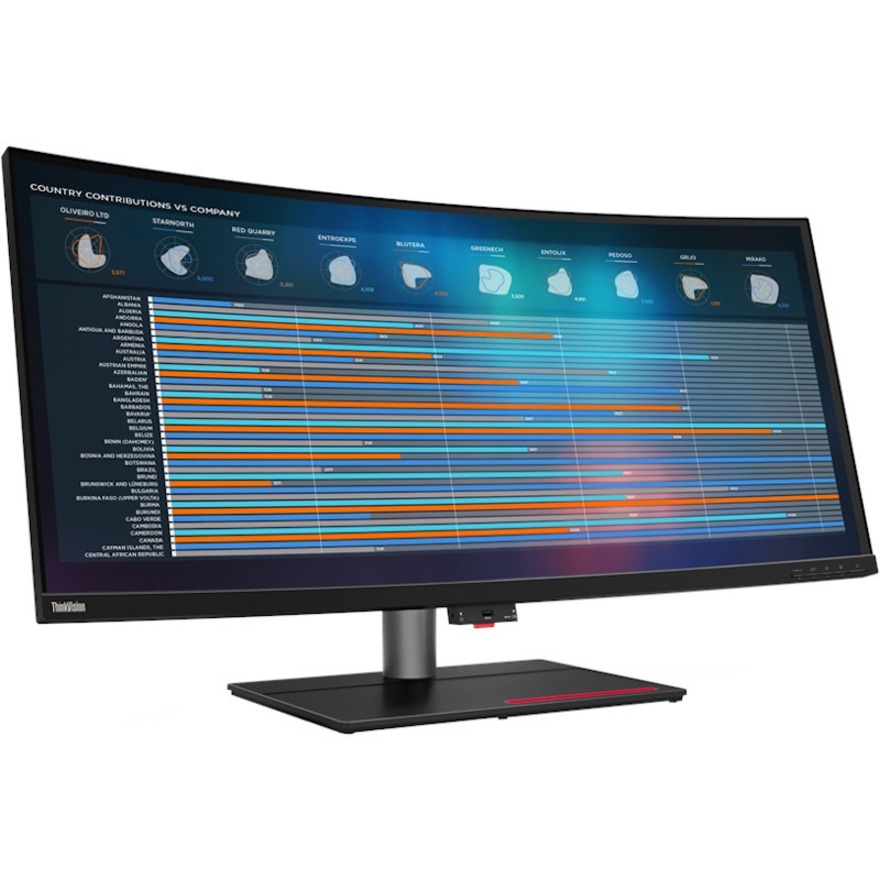

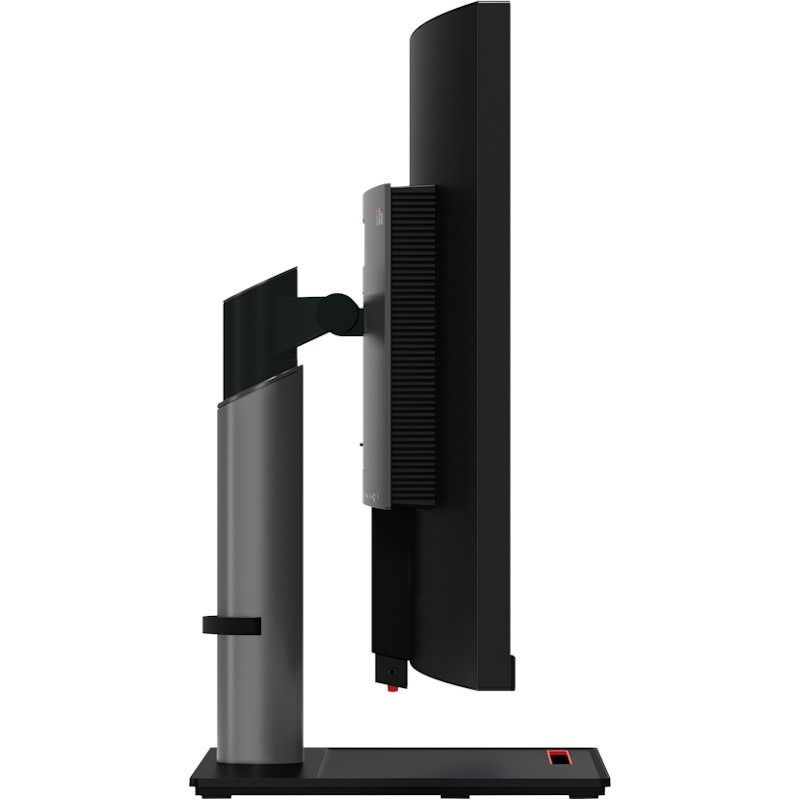

  Lenovo ThinkVision P40w-20 39.7" Webcam WUHD Curved Screen LCD Monitor, 21:9, Raven Black, 40" Class, In-plane Switching (IPS) Technology, WLED Backlight, 5120 x 2160, 1.07 Billion Colors, 300 Nit Typical, 4 ms, 75 Hz Refresh Rate, HDMI, DisplayPort, KVM Switch, USB Hub
Explore all Lenovo Parts Products
Add to Quote
Lenovo 62DDGAR6US Monitor
Lenovo 62DDGAR6US Monitor
Lenovo 62DDGAR6US Monitor
Lenovo 62DDGAR6US Monitor
Lenovo 62DDGAR6US Monitor Lenovo 62DDGAR6US Monitor Lenovo 62DDGAR6US Monitor Lenovo 62DDGAR6US Monitor

Lenovo Parts Products Model Overview

Products and parts from Lenovo.
Technical Information
Number of Screens:
1
Screen Size Class:
40"
Viewable Screen Size:
39.7"
Screen Mode:
WUHD
Panel Technology:
In-plane Switching (IPS) Technology
Response Time:
4 ms
Response Time Details:
  • 4 ms Extreme Mode
  • 6 ms Typical
Aspect Ratio:
21:9
Pixel Pitch:
0.18150 mm x 0.18150 mm
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
WLED
Features:
  • SmartPower
  • Picture in Picture
  • Picture by Picture
  • Cable Lock Slot
  • Cable Management
  • Eyesafe Certified
  • Anti-glare
  • High Dynamic Range (HDR)
  • Low Blue Light
  • Flicker-free
  • Eye Comfort Technology
  • HDR10
  • Smart Power
Adjustable Stand:
Yes
Stand Adjustments:
  • Tilt
  • Swivel
  • Height
Curved Screen:
Yes
Curvature:
2500R
Active Display Area (H x V):
36.59" x 15.43"
Video
Maximum Resolution:
5120 x 2160
Standard Refresh Rate:
75 Hz
Color Supported:
1.07 Billion Colors
Native Contrast Ratio:
1,000:1
Dynamic Contrast Ratio:
3,000,000:1
Brightness:
300 Nit
Color Gamut:
  • 98% DCI-P3
  • 99% sRGB
Pixel Per Inch (PPI):
140
Audio
Speakers:
No
Number of Microphones:
2
Interfaces/Ports
Network (RJ-45):
Yes
HDMI:
Yes
HDMI Version:
2.0
USB:
Yes
DisplayPort:
Yes
Thunderbolt:
Yes
USB Type-C:
Yes
Number of HDMI Inputs:
1
Total Number of HDMI Ports:
1
Number of USB Ports:
6
Number of USB Type-C 3.2 Gen 1 Ports:
1
Number of DisplayPorts:
1
Thunderbolt 4:
Yes
Number of HDMI 2.0 Ports:
1
Number of USB 3.2 (Gen 1) Ports:
4
USB Type-B:
Yes
Built-in Devices
Built-in Devices:
  • KVM Switch
  • USB Hub
Microphone:
Yes
Power Description
Operating Power Consumption:
66 W
Maximum Power Consumption:
250 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
200 x 100
Color Family:
Black
Product Color:
Raven Black
Height:
16.9"
Width:
37.3"
Depth:
4"
Height with Stand:
25.24"
Width with Stand:
37.31"
Depth with Stand:
11"
Compressed Height with Stand:
20.13"
Extended Height with Stand:
25.24"
Weight (Approximate):
21.83 lb
Weight with Stand (Approximate):
32.19 lb
Miscellaneous
Package Contents:
  • ThinkVision P40w-20 Widescreen LED Monitor
  • Thunderbolt 4 Cable
Energy Star:
Yes
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • TCO Certified Displays 8.0
  • TCO Certified Edge Displays 2.0
  • Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0195891414705, 0195891414736
UPC: 195891414705, 195891414736
EAN: 0195891414705, 0195891414736
UNSPSC: 43211902

Frequently Asked Questions

The Lenovo ThinkVision P40w-20 features a 39.7" curved WUHD display with a 21:9 aspect ratio, 5120 x 2160 resolution, and 1.07 billion colors. It uses IPS technology with WLED backlighting, delivers 300 nits of typical brightness, and supports a 75 Hz refresh rate with 4 ms response time. This ultra-wide format is ideal for warehouse management systems, logistics dashboards, and multi-application workflows where you need to monitor multiple data streams simultaneously.

This ThinkVision monitor includes HDMI and DisplayPort connectivity, along with an integrated KVM switch and USB hub for streamlined device management. These connection options make it easy to integrate into your warehouse IT infrastructure and connect multiple peripherals without requiring additional hubs or adapters.

Yes, the ultra-wide 21:9 curved display is specifically designed for professional environments like warehouse management, inventory tracking, and logistics coordination where operators need to view multiple applications and data sources simultaneously. The high resolution (5120 x 2160) and IPS technology ensure accurate color representation and wide viewing angles, which is critical for teams working in collaborative warehouse environments.

The Lenovo ThinkVision P40w-20 operates at a 75 Hz refresh rate with a 4 ms response time, providing smooth performance for business applications and data visualization tasks. While not designed for high-speed gaming, these specifications are well-suited for enterprise warehouse management systems and continuous monitoring applications.

Yes, the Lenovo ThinkVision P40w-20 includes an integrated webcam, making it convenient for remote collaboration and video conferencing without requiring additional hardware. This is particularly useful for distributed warehouse teams that need to coordinate across multiple locations.

We offer the Lenovo 62DDGAR6US monitor as part of our comprehensive AIDC and enterprise display solutions. Contact us today at barcodesinc.com to discuss pricing, availability, and how this ultra-wide monitor can enhance your warehouse operations and logistics workflows.
