Lenovo 62C1GAR6US Monitor

Part Number: 62C1GAR6US
Model: Parts
$2,006.98
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Screens
1
Screen Size Class
40"
Viewable Screen Size
39.7"
Screen Mode
5K2K WUHD

Product Description:

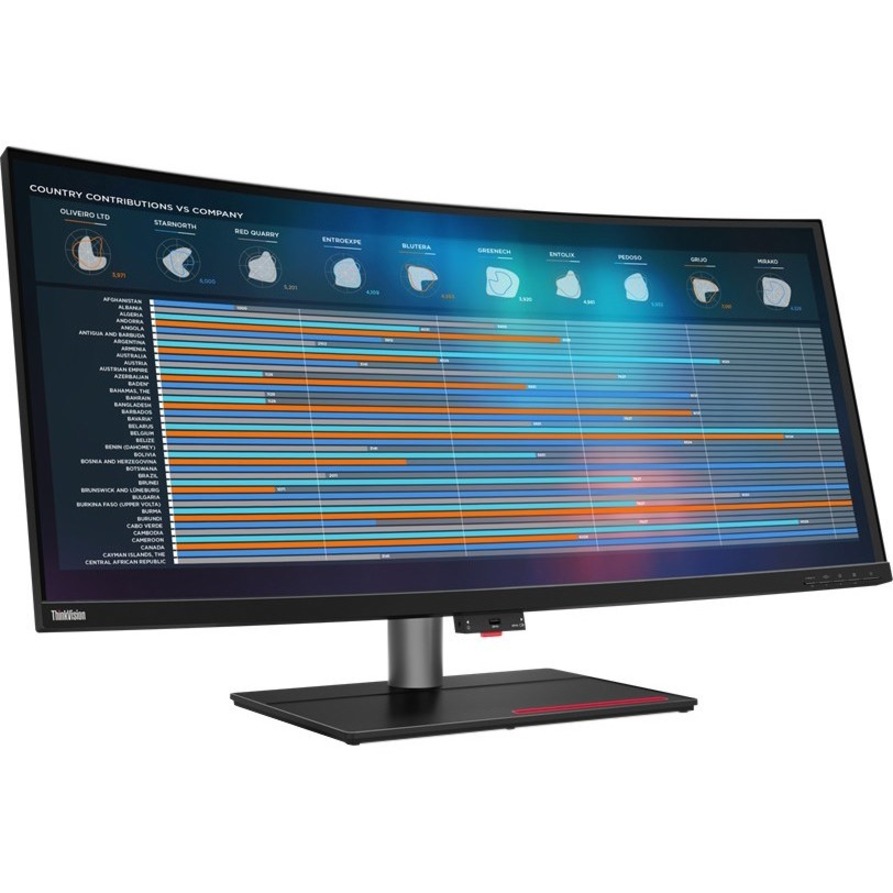

  Lenovo ThinkVision P40w-20 39.7" 5K2K WUHD Curved Screen LCD Monitor, 21:9, Raven Black, 40" Class, In-plane Switching (IPS) Technology, WLED Backlight, 5120 x 2160, 1.07 Billion Colors, 300 Nit, 4 ms, 75 Hz Refresh Rate, HDMI, DisplayPort, USB Hub, KVM Switch

Lenovo Parts Products Model Overview

Products and parts from Lenovo.
Lenovo 62C1GAR6US Monitor Overview

World's first Thunderbolt™ 4 professional monitor to support Intel Active Management Technology for Intel vPro® clients. ThinkVision P40w-20 gives you exactly that with a host of industry-leading features. Its sweeping 39.7-inch, 21:9 screen features expansive 5120x2160 WUHD resolution that lets you see every sharp detail while taking in the big picture, whether it's tracking market updates or comparing long-form legal contracts. Depend on consistent, reliable, true-to-life colours from any viewing angle thanks to its In-Plane Switching panel professional display that reproduces colour to 98% DCI-P3 and has factory-calibrated colour with ∆E<2 variance. Speed, power and simplicity combine through industry-leading Thunderbolt™ 4 connectivity, the model compliance with the industry leading USB4 technology giving you up to 40 Gbps of data and video transfer together with power and network connectivity between your connected devices - even with non-Lenovo brand devices - all through a single Thunderbolt™ 4 cable.

Technical Information
Number of Screens:
1
Screen Size Class:
40"
Viewable Screen Size:
39.7"
Screen Mode:
5K2K WUHD
Panel Technology:
In-plane Switching (IPS) Technology
Response Time:
4 ms
Response Time Details:
  • 4 ms Extreme Mode
  • 6 ms Typical
Aspect Ratio:
21:9
Pixel Pitch:
0.18150 mm x 0.18150 mm
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Wall Mountable
Backlight Technology:
WLED
Features:
  • sRGB
  • Low Blue Light
  • Flicker-free
  • Picture by Picture
  • Picture in Picture
  • Anti-glare
  • Cable Lock Slot
  • Cable Management
  • Security Lock
  • High Dynamic Range (HDR)
  • Eye-Care
  • Eyesafe Certified
  • Eye Comfort Technology
  • HDR10
  • Smart Power
Adjustable Stand:
Yes
Stand Adjustments:
  • Height
  • Swivel
  • Tilt
Curved Screen:
Yes
Curvature:
2500R
Active Display Area (H x V):
36.59" x 15.43"
Video
Maximum Resolution:
5120 x 2160
Standard Refresh Rate:
75 Hz
Color Supported:
1.07 Billion Colors
Native Contrast Ratio:
1,000:1
Dynamic Contrast Ratio:
3,000,000:1
Brightness:
300 Nit
Color Gamut:
  • 98% DCI-P3
  • 99% sRGB
Pixel Per Inch (PPI):
140
Audio
Speakers:
No
Interfaces/Ports
Network (RJ-45):
Yes
HDMI:
Yes
HDMI Version:
2.0
USB:
Yes
DisplayPort:
Yes
Thunderbolt:
Yes
USB Type-C:
Yes
Number of HDMI Inputs:
1
Total Number of HDMI Ports:
1
Number of USB Ports:
6
Number of USB Type-C 3.2 Gen 1 Ports:
1
Number of DisplayPorts:
1
Thunderbolt 4:
Yes
Number of HDMI 2.0 Ports:
1
Number of USB 3.2 (Gen 1) Ports:
4
USB Type-B:
Yes
Built-in Devices
Built-in Devices:
  • USB Hub
  • KVM Switch
Webcam:
No
Microphone:
No
Power Description
Operating Power Consumption:
66 W
Standby Power Consumption:
500 mW
Off-Mode Power Consumption:
300 mW
Maximum Power Consumption:
250 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
200 x 100
Color Family:
Black
Product Color:
Raven Black
Height:
16.9"
Width:
37.3"
Depth:
4"
Height with Stand:
25.24"
Width with Stand:
37.31"
Depth with Stand:
11"
Compressed Height with Stand:
20.13"
Extended Height with Stand:
25.24"
Weight (Approximate):
21.83 lb
Weight with Stand (Approximate):
32.19 lb
Miscellaneous
Package Contents:
  • ThinkVision P40w-20 39.7" 5K2K Ultra-Wide Curved Monitor
  • Thunderbolt 4 Cable
Energy Star:
Yes
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
  • TCO Certified 9.0
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0195713047517
UPC: 195713047517
EAN: 0195713047517
UNSPSC: 43211902

Frequently Asked Questions

The Lenovo ThinkVision P40w-20 features a 39.7-inch curved 5K2K WUHD display with a 21:9 ultrawide aspect ratio and 5120 x 2160 resolution. It delivers 1.07 billion colors with IPS technology, 300 nits brightness, and a 4 ms response time at 75 Hz refresh rate, making it ideal for detailed content creation and multi-window workflows. We offer this monitor as part of our comprehensive Lenovo product lineup for professionals requiring expansive screen real estate.

This ThinkVision model includes HDMI and DisplayPort connectivity along with an integrated USB Hub and KVM Switch functionality. These connections enable seamless integration with multiple devices and workstations, reducing cable clutter and improving productivity for warehouse and logistics operations. Contact us today to learn how this monitor can streamline your IT infrastructure.

Yes, the ultrawide 21:9 aspect ratio and 5120 x 2160 resolution make this monitor an excellent alternative to traditional multi-monitor configurations, allowing warehouse managers to view inventory systems, shipping dashboards, and logistics software simultaneously without bezels. The integrated KVM Switch enables control of multiple computers from a single keyboard and mouse, improving efficiency in warehouse operations. Visit barcodesinc.com to explore how we can configure this monitor for your warehouse management needs.

The curved screen design reduces eye strain and provides an immersive viewing experience by maintaining consistent distance from the viewer's eyes across the entire 39.7-inch display. This is particularly beneficial for professionals who spend extended hours monitoring logistics systems, inventory databases, or quality control dashboards. We offer this ergonomic advantage as part of our premium monitor selection for demanding warehouse and IT environments.

The In-plane Switching (IPS) technology with WLED backlighting delivers consistent color reproduction across wide viewing angles, supporting 1.07 billion colors for accurate visual representation. This makes it suitable for applications requiring precise color matching in barcode scanning verification, product imaging, and quality assurance workflows. Contact us today for recommendations on integrating this monitor with your AIDC and barcode scanning infrastructure.

The monitor is classified as a 40-inch class display with a curved design in Raven Black finish, though specific mounting specifications should be confirmed with our team for your workspace requirements. The curved ultrawide form factor requires adequate desk space but eliminates the need for multiple monitor stands, reducing overall footprint in control centers and logistics offices. Visit barcodesinc.com or contact us today to discuss mounting solutions and workspace planning for this premium monitor.
