Lenovo Parts Products Model Overview
Products and parts from Lenovo.

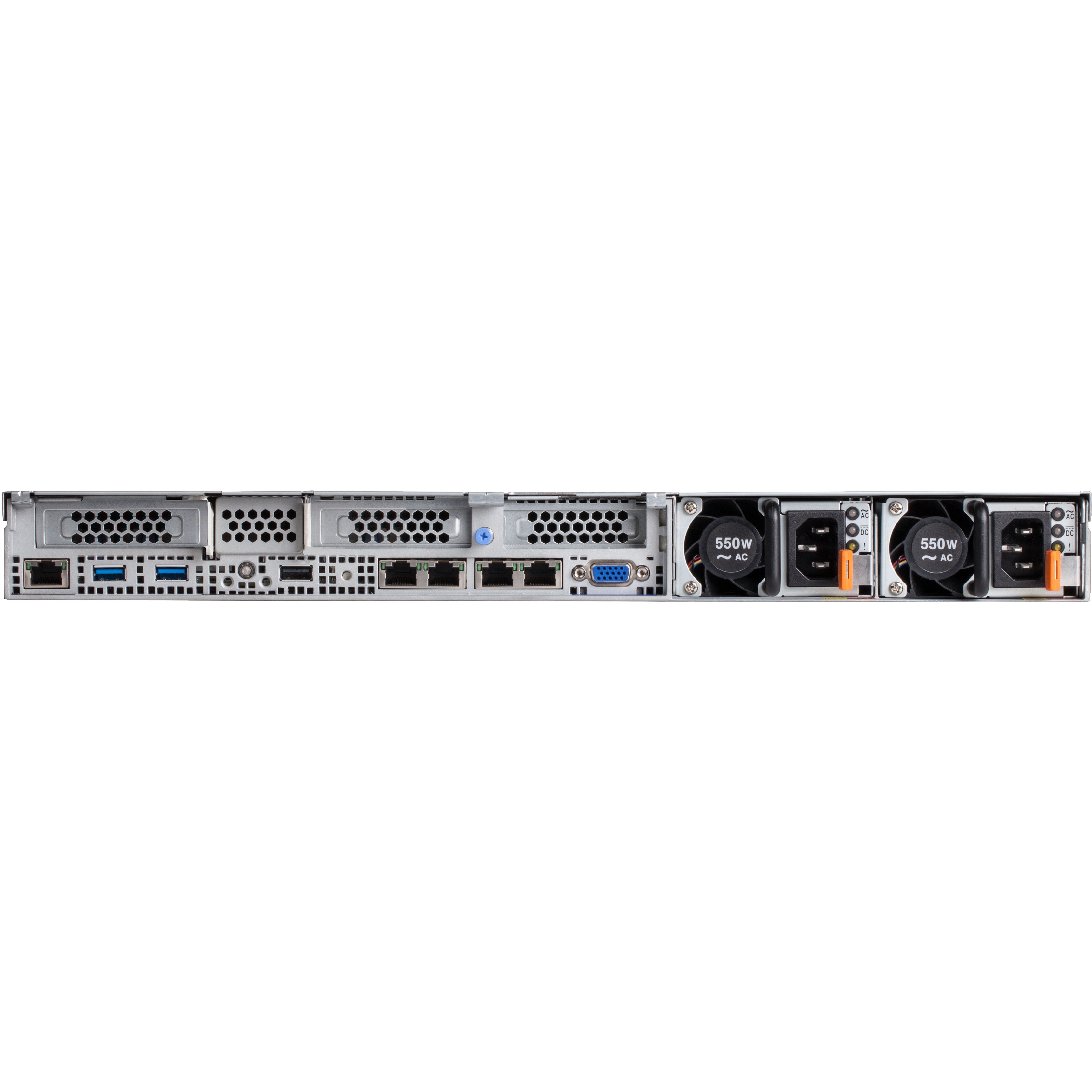

Lenovo 5463EAU Products Overview
Designed in a compact, versatile 1U two-socket rack server, the IBM® System x3550 M5 rack server fuels almost any workload from infrastructure to high-performance computing (HPC) to cloud or big data with leadership security, efficiency, and reliability. Integrated with up to two Intel Xeon processors of the E5-2600 v3 product family with faster, energy-efficient TruDDR4 Memory, the x3550 M5 delivers exceptional performance. Storage can include up to 12 drives in an impressive selection of sizes and types. This IBM Redbooks® Product Guide describes the System x3550 M5.
Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Model:
E5-2609 v3
Processor Core:
Hexa-core (6 Core)
Processor Speed:
1.90 GHz
QuickPath Interconnect:
6.40 GT/s
Chipset
Chipset Manufacturer:
Intel
Memory
Memory Technology:
DDR4 SDRAM
Memory Standard:
DDR4-2133/PC4-17000
Total Number of Memory Slots:
24
Storage
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD-RAM/±R/±RW
Dual-Layer Media Supported:
Yes
Controllers
Controller Type:
12Gb/s SAS 6Gb/s SAS 3Gb/s SAS Serial ATA/600 Serial ATA/300
I/O Expansions
Number of Total Expansion Bays:
5
Number of External 5.25" Bays:
1
Number of Internal 2.5" Bays:
4
Total Number of Expansion Slots:
2
Number of PCI Express x16 Slots:
2
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
2
Number of USB 3.0 Ports:
3
Operating System
Power Description
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
550 W
Physical Characteristics
Weight (Approximate):
42.55 lb
Miscellaneous
Package Contents:
System x3550 M5 5463EAU Server Statement of Limited Warranty Important Notices Rack Installation Instructions Documentation CD that contains the Installation and User's Guide IBM System x3550 M5 Slide Kit G4 1 x 2.8 m C13-C14 Power Cord
Compatibility:
Microsoft: Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 Red Hat: Red Hat Enterprise Linux 7 Red Hat Enterprise Linux 6 Server x64 Edition (Update 5) SUSE: SUSE LINUX Enterprise Server 11 for AMD64/EM64T (SP3) SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T (SP3) VMware: VMware vSphere 5.5 (ESXi) (planned for later in 2014) VMware vSphere 5.1 (ESXi) (Update 2)
Certifications & Standards:
FCC - Verified to comply with Part 15 of the FCC Rules, Class A Canada ICES-003, issue 5, Class A UL/IEC 60950-1 CSA C22.2 No. 60950-1 NOM-019 Argentina IEC60950-1 Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22, Class A; AS/NZS 60950.1 China CCC GB4943.1, GB9254 Class A, GB17625.1 Taiwan BSMI CNS13438, Class A; CNS14336-1 Korea KN22, Class A; KN24 Russia, Belorussia and Kazakhstan, TR CU 020/2011 (for EMC) and TR CU 004/2011 (for safety) IEC 60950-1 (CB Certificate and CB Test Report) CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3) CISPR 22, Class A TUV-GS (EN60950-1/IEC60950-1,EK1-ITB2000)
Warranty
Item Numbers
GTIN:
0883436649636, 4923773149034
UPC:
883436649636
EAN:
0883436649636, 4923773149034
UNSPSC:
43211501
