Lenovo 5458EEU Products Overview

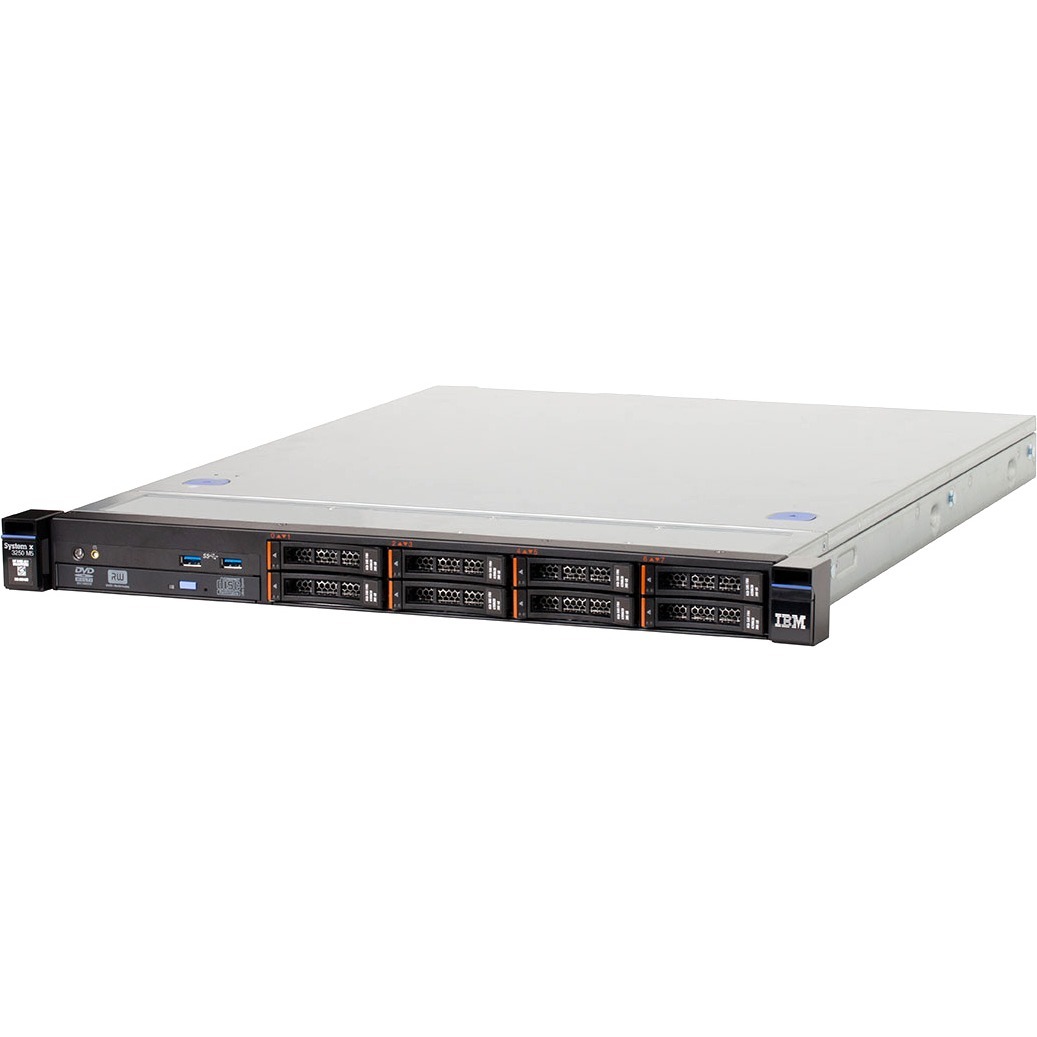

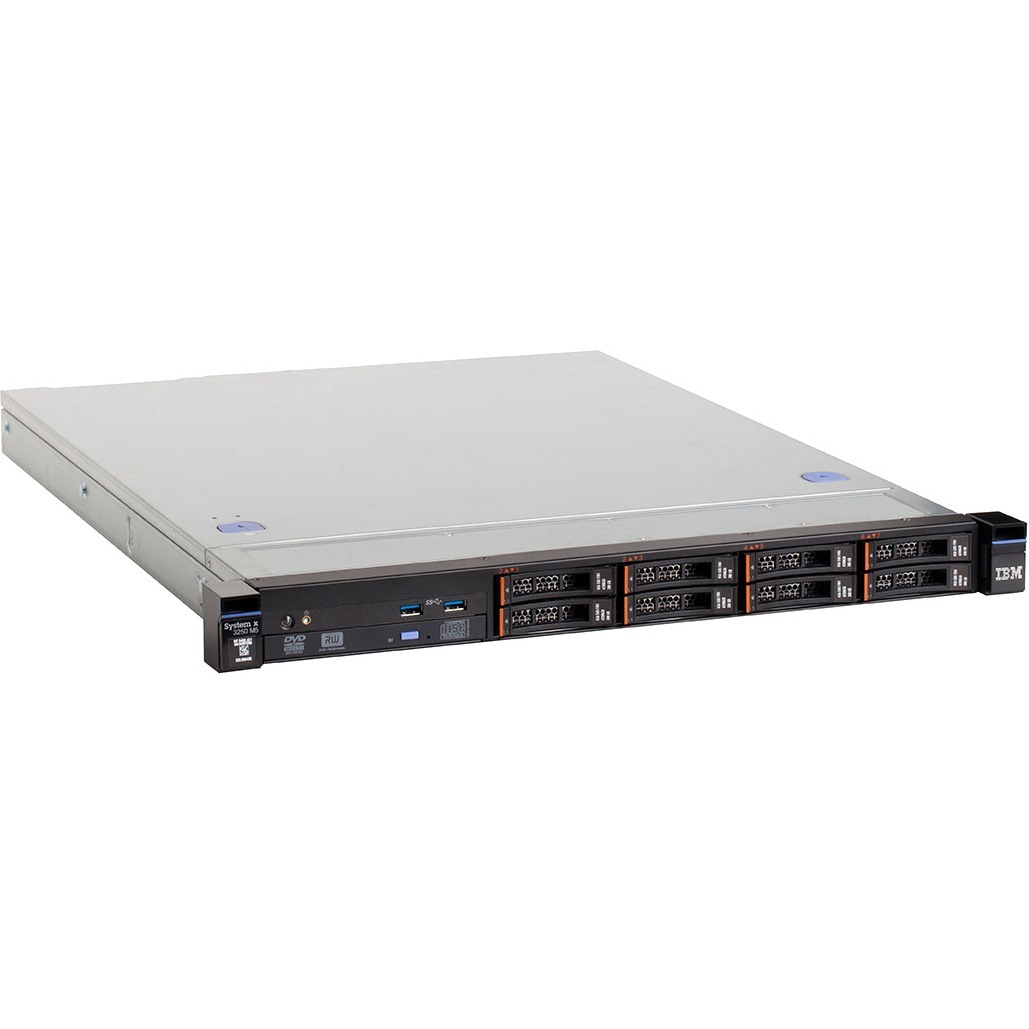

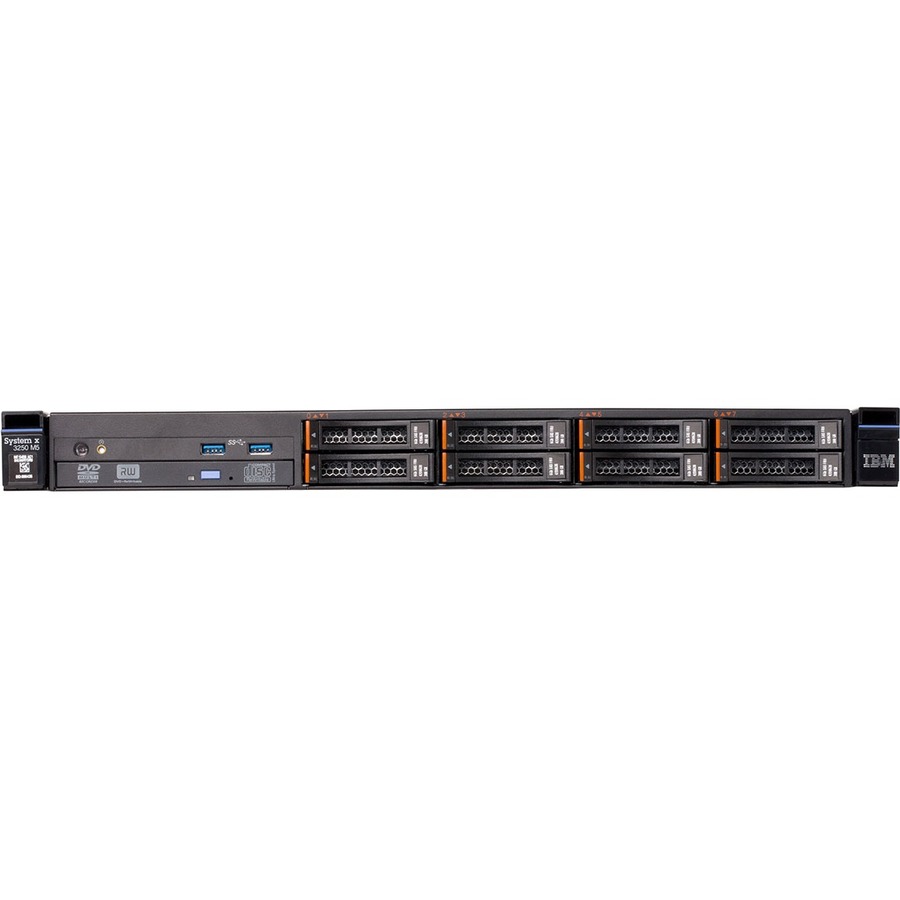

The IBM® System x3250 M5 single-socket 1U rack server is designed for small businesses and first-time server buyers looking for a solution to improve business efficiency. It delivers several IBM innovative features in a compact 1U form factor with a competitive price. The IBM System x3250 M5 provides next-generation performance in an innovative and compact design with flexible configuration options, built-in security, and systems management capabilities, as described in the IBM Redbooks® Product Guide. It leverages the next-generation quad-core Intel Xeon processor E3-1200 v3 product family technology.
Processor
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Model:
E3-1231 v3
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.40 GHz
Maximum Turbo Speed:
3.80 GHz
Direct Media Interface:
5 GT/s
Chipset
Chipset Manufacturer:
Intel
Memory
Maximum Memory Supported:
32 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
DDR3-1600/PC3-12800
Total Number of Memory Slots:
4
Storage
Controllers
RAID Levels:
0, 1, 10, 1E
I/O Expansions
Number of Total Expansion Bays:
4
Total Number of Expansion Slots:
2
Number of PCI Express x4 Slots:
1
Number of PCI Express x8 Slots:
1
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Operating System
Power Description
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
300 W
Physical Characteristics
Weight (Approximate):
27.12 lb
Miscellaneous
Package Contents:
System x3250 M5 5458EEU Server Statement of Limited Warranty Important Notices Rack Installation Instructions Documentation CD containing Installation and User's Guide Rack mount kit (static rails, non-sliding; no cable management arm included) 1 x 2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable
Compatibility:
Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 5 Server Edition Red Hat Enterprise Linux 5 Server with Xen x64 Edition (support is planned for later in 2013) SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 for x86 SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T (support is planned for later in 2013) VMware vSphere 5.5 (ESXi) (support is planned for later in 2013) VMware vSphere 5.1 (ESXi)
Certifications & Standards:
FCC - Verified to comply with Part 15 of the FCC Rules, Class A Canada ICES-003, issue 4, Class A UL/IEC 60950-1 CSA C22.2 No. 60950-1 NOM-019 Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A IEC-60950-1 (CB Certificate and CB Test Report) Taiwan BSMI CNS 13438, Class A); CNS 14336 China CCC (China GB 4943-2001, GB 9254-2008 Class A, GB 17625.1:2003) Korea KN22, Class A; KN24 Russia/GOST ME01, IEC-60950-1, GOST R 51318.22-99, GOST R 51318.24-99, GOST R 51317.3.2-2006, GOST R 51317.3.3-99 CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3) CISPR 22, Class A TUV-GS (EN60950-1/IEC60950-1,EK1-ITB2000)
Environmentally Friendly:
Yes
Warranty
Item Numbers
GTIN:
0883436643979
UPC:
883436643979
EAN:
0883436643979
UNSPSC:
43211501
