Storage Capacity:
960 GB
Lenovo 4XB7A80318 Drive
Part Number:
4XB7A80318
Model:
Parts
Lenovo Parts Products Model Overview
Products and parts from Lenovo.

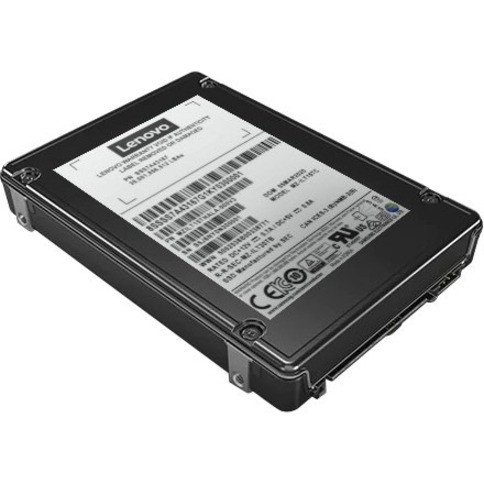

Lenovo 4XB7A80318 Drive Overview
The ThinkSystem PM1653 Read Intensive SAS 24Gb SSDs are next-generation high-performance 24Gb SAS SSDs suitable for a wide range of applications of running on ThinkSystem servers. The drives are available in capacities of up to 30.72 TB.
The PM1653 SSDs are the follow-on to the PM1643a SSDs and offer improved performance.
Technical Information
Drive Performance
Maximum Read Transfer Rate:
2100 MB/s
Maximum Write Transfer Rate:
1300 MB/s
Random 4KB Read:
420000IOPS
Random 4KB Write:
60000IOPS
Endurance (DWPD):
1
Endurance (TBW):
1752 TB
Endurance Type:
Read Intensive
Network & Communication
Wireless LAN:
No
Interfaces/Ports
Drive Interface:
SAS
Drive Interface Standard:
24Gb/s SAS
Physical Characteristics
Drive Type:
Internal
Form Factor:
2.5"
Hot Swappable:
Yes
Height:
0.6"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
5.64 oz
Miscellaneous
Package Contents:
- ThinkSystem 2.5" PM1653 960GB Read Intensive SAS 24Gb HS SSD
- Documentation flyer
Compatibility:
ThinkSystem servers:
- ST650 V2 (7Z75 / 7Z74)
- SR630 V2 (7Z70 / 7Z71)
- SR650 V2 (7Z72 / 7Z73)
- SR670 V2 (7Z22 / 7Z23)
- SR635 (7Y98 / 7Y99)
- SR655 (7Y00 / 7Z01)
- SR645 (7D2Y / 7D2X)
- SR665 (7D2W / 7D2V)
- SN550 V2 (7Z69)
- SR850 V2 (7D31 / 7D32)
- SR860 V2 (7Z59 / 7Z60)
- SR950 (7X11 / 7X12)
- ST550 (7X09 / 7X10)
- SR530 (7X07 / 7X08)
- SR550 (7X03 / 7X04)
- SR570 (7Y02 / 7Y03)
- SR590 (7X98 / 7X99)
- SR630 (7X01 / 7X02)
- SR650 (7X05 / 7X06)
- SD530 (7X21)
- SN550 (7X16)
- SN850 (7X15)
- SR850 (7X18 / 7X19)
- SR850P (7D2F / 2D2G)
- SR860 (7X69 / 7X70)
Device Supported:
Server
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:
PM1653 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty.
Item Numbers
GTIN:
0889488600526
UPC:
889488600526
EAN:
0889488600526
UNSPSC:
43201830
