Full specifications (PDF)
Release Month:
September
Release Year:
2023

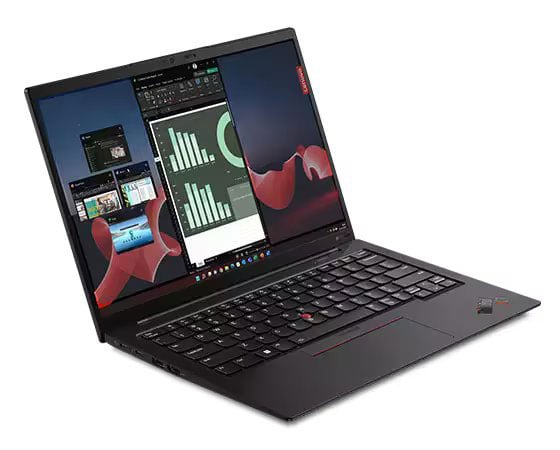

Lenovo 21HM00A6US Laptop
Part Number:
21HM00A6US
Model:
ThinkPad X1 Carbon Gen 11
Lenovo ThinkPad X1 Carbon Gen 11 Laptop Model Overview
The Lenovo ThinkPad X1 Carbon Gen 11 is a premium ultralight laptop designed for business professionals seeking performance, portability, and durability. It features a 14-inch display and is powered by up to 13th Gen Intel® Core™ i7 processors, ensuring robust performance for multitasking and demanding applications.
Key Specifications:
- Processor: Up to 13th Gen Intel® Core™ i7-1370P
- Memory: Up to 64GB LPDDR5/x-6000, soldered
- Storage: Supports up to a 2TB M.2 2280 SSD
- Graphics: Integrated Intel® Iris® Xe Graphics
- Display Options:
- 14" WUXGA (1920 x 1200) IPS, anti-glare
- 14" 2.8K (2880 x 1800) OLED, anti-reflection, anti-smudge
- Audio: Stereo speakers with Dolby® Atmos®; quad-microphone array with Dolby Voice
- Camera Options:
- HD 720p with privacy shutter
- FHD 1080p with privacy shutter
- FHD 1080p + IR hybrid with privacy shutter
- Battery: Integrated 57Wh, supporting Rapid Charge technology
- Connectivity:
- Intel® Wi-Fi 6E AX211
- Bluetooth® 5.1
- Optional 5G sub-6 with eSIM
- Ports:
- 2 x Thunderbolt™ 4
- 2 x USB 3.2 Gen 1 Type-A
- HDMI 2.0b
- 3.5mm headphone/microphone combo jack
- Dimensions: 315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)
- Weight: Starting at 1.12 kg (2.48 lbs)
The laptop also emphasizes sustainability by incorporating recycled materials, including up to 97% post-consumer plastic in select components, 90% recycled magnesium, and 55% recycled aluminum.
Lenovo 21HM00A6US Laptop Overview
Relentless innovation
The way we compute. The way we do business. The way we live our lives. Every time business has gone somewhere new, discovered something different, or done something revolutionary, chances are, ThinkPad was there. We stem from a long tradition of firsts.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i7
Processor Generation:
13th Gen
Processor Model:
i7-1355U
Processor Core:
Deca-core (10 Core)
Processor Threads:
12
Processor Speed:
1.70 GHz
Maximum Turbo Speed:
5 GHz
vPro Technology:
No
Intel Evo Platform:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
System Memory Speed:
6000 MHz
System Memory Form Factor:
On-board
On-board Memory:
32 GB
On-board Memory Technology:
LPDDR5
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
1 TB
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
14"
Display Screen Technology:
In-plane Switching (IPS) Technology
Screen Mode:
WUXGA
Screen Resolution:
1920 x 1200
Brightness:
400 Nit
Color Gamut:
100% sRGB
Touchscreen:
Yes
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
Iris Xe Graphics
Graphics Memory Technology:
LPDDR5
Graphics Memory Accessibility:
Shared
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Wimax:
No
Bluetooth:
Yes
WWAN Supported:
No
Near Field Communication:
No
Built-in Devices
Camera Privacy Shutter:
Yes
Front Camera/Webcam:
Yes
Infrared Camera:
Yes
Finger Print Reader:
Yes
Interfaces/Ports
HDMI:
Yes
Total Number of USB Ports:
2
Number of USB 3.2 Gen 1 Ports:
2
Number of Thunderbolt 4 Ports:
2
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English
Input Devices
Keyboard Backlight:
Yes
Keyboard Localization:
English
Power Description
Maximum Power Supply Wattage:
65 W
Power Plug Type:
Type C
USB Power Delivery Support:
Yes
Physical Characteristics
Color Family:
Black
Product Color:
Deep Black
Cover Material:
- Carbon Fiber
- Aluminum
Height:
0.60"
Width:
12.4"
Depth:
8.8"
Weight (Approximate):
2.47 lb
Miscellaneous
Package Contents:
ThinkPad X1 Carbon Gen 11 21HM00A6US Ultrabook AC Adapter
Charger Included:
Yes
Features:
Anti-glare Screen
Windows Hello Compatible:
Yes
Energy Star:
Yes
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- TCO Certified 9.0
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
- ENERGY STAR 8.0
Energy Efficiency Certification:
ENERGY STAR 8.0
Energy Efficiency Compliance:
- Energy-related Products Directive Lot 6 (ErP Lot 6)
- Energy-related Products Directive Lot 26 (ErP Lot 26)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3-year, Courier or Carry-in
Item Numbers
GTIN:
0197531006585
UPC:
197531006585
EAN:
0197531006585
UNSPSC:
43211503
The Lenovo 21HM00A6US Laptop is also known as
21HM00A6US
