Full specifications (PDF)
Release Month:
May
Release Year:
2023

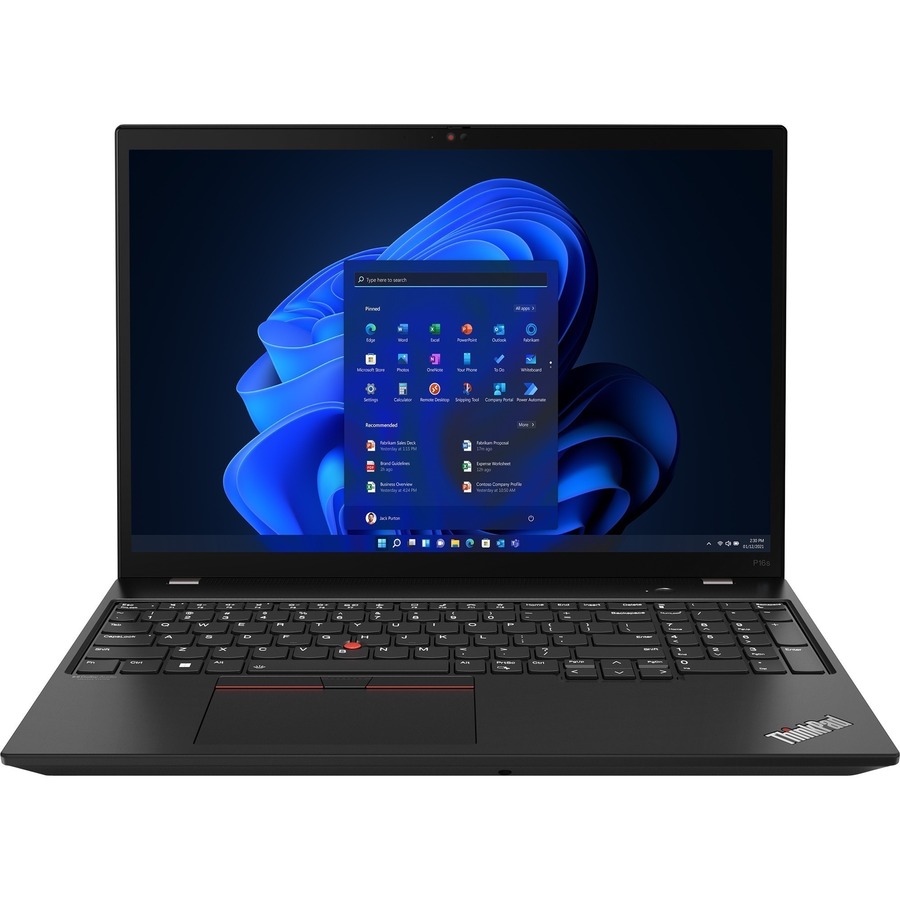

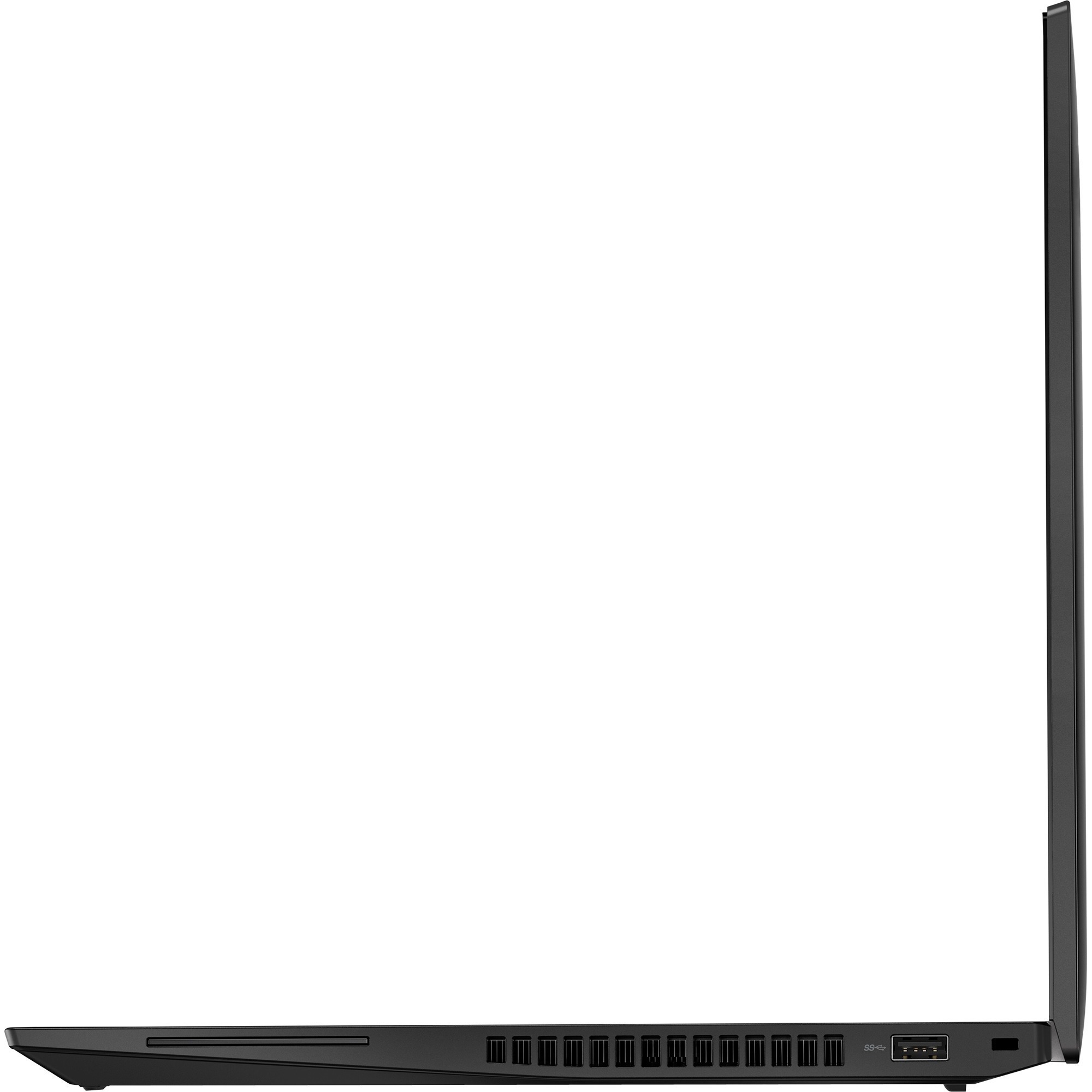

Lenovo 21HK001XUS Laptop
Part Number:
21HK001XUS
Model:
ThinkPad P16s Gen 2
Lenovo ThinkPad P16s Gen 2 Laptop Model Overview
The Lenovo ThinkPad P16s Gen 2 is a premium 16-inch performance laptop designed for high-performance creative and technical work on the move. High-performance Intel processing pairs with professional graphics options, fast SSD storage and a detailed 16-inch display. Specifications and availability vary by Lenovo machine type and selected configuration.
Key features:
Specifications:
Key features:
- Professional Laptop Performance: Combines high-performance processing with professional graphics options for demanding mobile workflows.
- Professional Display Options: 16:10 display choices support detailed technical, analytical and creative work.
- ISV-Certified Configurations: Selected configurations are certified for professional engineering and creative applications.
- ThinkPad Durability: Commercial construction and ThinkPad testing support frequent travel and field use.
- Business Connectivity: Modern wired, wireless and display connections support desks, docks and mobile work.
Specifications:
- Processor: 13th-generation Intel Core i5 or i7 P-series, up to 14 cores
- Memory: Up to 64GB soldered LPDDR5X memory
- Storage: PCIe NVMe SSD options
- Graphics / Display: 16-inch 16:10 display options with professional NVIDIA graphics available
- Design / Power: Battery and rapid-charge options vary by configuration
- Best-Fit Industries: engineering, architecture, business analytics, software development and media production
Lenovo 21HK001XUS Laptop Overview
OUR MOST POWERFUL MOBILE WORKSTATIONS
Fusing the portability of ThinkPad with the power of a workstation, P Series laptops feature ISV-certified applications, lightning-fast graphics & processing, and more cutting-edge technology to handle your compute-intensive needs - in a surprisingly thin, light package.
Technical Information
Processor
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Generation:
13th Gen
Processor Model:
i5-1340P
Processor Core:
Dodeca-core (12 Core)
Processor Threads:
16
Maximum Turbo Speed:
4.60 GHz
vPro Technology:
No
Chipset
Chipset Manufacturer:
Intel
Memory
Standard Memory:
16 GB
System Memory Speed:
7500 MHz
System Memory Form Factor:
On-board
On-board Memory:
16 GB
On-board Memory Technology:
LPDDR5X
Memory Card Reader:
No
Storage
Drive Type:
SSD
Total Solid State Drive Capacity:
512 GB
SSD Form Factor:
M.2
Display & Graphics
Screen Size:
16"
Display Screen Technology:
In-plane Switching (IPS) Technology
Screen Mode:
WUXGA
Screen Resolution:
1920 x 1200
Brightness:
300 Nit
Color Gamut:
45% NTSC
Touchscreen:
No
Graphics Controller Manufacturer:
NVIDIA
Graphics Controller Model:
RTX A500
Graphics Memory Capacity:
4 GB
Graphics Memory Technology:
GDDR6
Graphics Memory Accessibility:
Dedicated
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
SIM Size Supported:
Nano
Cellular Data Connectivity Technology:
EDGE
Ethernet Technology:
Gigabit Ethernet
Bluetooth:
Yes
WWAN Supported:
Yes
Near Field Communication:
No
Built-in Devices
Camera Privacy Shutter:
Yes
Front Camera/Webcam:
Yes
Front Camera/Webcam Resolution:
5 Megapixel
Infrared Camera:
Yes
Finger Print Reader:
Yes
Interfaces/Ports
HDMI:
Yes
Total Number of USB Ports:
2
Number of USB 3.2 Gen 1 Ports:
2
Number Of Ethernet Ports:
1
Network (RJ-45):
Yes
Number of Thunderbolt 4 Ports:
2
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English
Input Devices
Keyboard Backlight:
Yes
Keyboard Localization:
English
Power Description
Maximum Power Supply Wattage:
100 W
Power Plug Type:
Type C
USB Power Delivery Support:
Yes
Physical Characteristics
Color Family:
Black
Product Color:
Villi Black
Cover Material:
- Polyphenylene Sulfide (PPS)
- Glass Fiber
- Carbon Fiber
- Polycarbonate
Height:
0.83"
Width:
14.2"
Depth:
10.1"
Weight (Approximate):
3.75 lb
Miscellaneous
Package Contents:
ThinkPad P16s Gen 2 21HK001XUS Mobile Workstation AC Adapter
Charger Included:
Yes
Features:
- Anti-glare Screen
- Tamper Detection
Windows Hello Compatible:
Yes
Energy Star:
Yes
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- TCO Certified 9.0
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
- ENERGY STAR 8.0
Energy Efficiency Certification:
ENERGY STAR 8.0
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3-year, Courier or Carry-in 3Y Sealed Battery Add On, 3Y Premier Support Upgrade from 3Y Courier/Carry-in
Item Numbers
GTIN:
0197529304501
UPC:
197529304501
EAN:
0197529304501
UNSPSC:
43211503
Frequently Asked Questions
What processor and memory options are available in the Lenovo ThinkPad P16s Gen 2?
The Lenovo ThinkPad P16s Gen 2 (21HK001XUS) features 13th-generation Intel Core i5 or i7 P-series processors with up to 14 cores, paired with up to 64GB of soldered LPDDR5X memory. This configuration delivers the high-performance processing needed for demanding mobile workflows in engineering, architecture, and creative applications. We offer this model with various memory and storage configurations to match your specific workload requirements.
Is the Lenovo ThinkPad P16s Gen 2 suitable for professional engineering and creative work?
Yes, the ThinkPad P16s Gen 2 is specifically designed as a mobile workstation for professional engineering, architecture, business analytics, software development, and media production. Selected configurations are ISV-certified for professional engineering and creative applications, ensuring compatibility with industry-standard software. The combination of high-performance Intel processing, optional professional NVIDIA graphics, and a detailed 16-inch 16:10 display makes it ideal for technical and creative professionals who need portable workstation power.
What display and graphics options does this ThinkPad offer?
The Lenovo ThinkPad P16s Gen 2 features a 16-inch 16:10 display with multiple professional options to support detailed technical, analytical, and creative work. The model includes professional NVIDIA RTX A500 graphics with 4GB of dedicated memory, which accelerates rendering and complex computational tasks. These professional-grade display and graphics configurations are available from us to meet the demands of creative professionals and engineers working on the move.
What storage options and connectivity features are included?
The ThinkPad P16s Gen 2 offers PCIe NVMe SSD storage options for fast data access and system responsiveness. For connectivity, it includes modern wired, wireless, and display connections that support desks, docks, and mobile work environments, with IEEE 802.11ax wireless LAN standard for high-speed connectivity. This comprehensive connectivity suite ensures seamless integration with your existing infrastructure whether you're at a desk or working remotely.
How durable is the ThinkPad P16s Gen 2 for frequent travel and field use?
The Lenovo ThinkPad P16s Gen 2 is built with commercial-grade construction and undergoes ThinkPad durability testing to support frequent travel and demanding field use. The ThinkPad brand is renowned for reliability in professional environments, making this model well-suited for mobile professionals who need a dependable workstation. Contact us today to learn more about the durability features and warranty options available for this mobile workstation.
What operating system and software does the Lenovo ThinkPad P16s Gen 2 come with?
The Lenovo ThinkPad P16s Gen 2 (21HK001XUS) ships with Windows 11 Pro, providing enterprise-grade security and productivity features for professional users. The ISV-certified configurations ensure compatibility with professional engineering and creative software applications. We offer this system ready to deploy in demanding professional environments where Windows 11 Pro's features are essential for your workflow.
