Release Year:
2023
Lenovo 12E30001US Desktop PC
Part Number:
12E30001US
Model:
Parts
Lenovo Parts Products Model Overview
Products and parts from Lenovo.

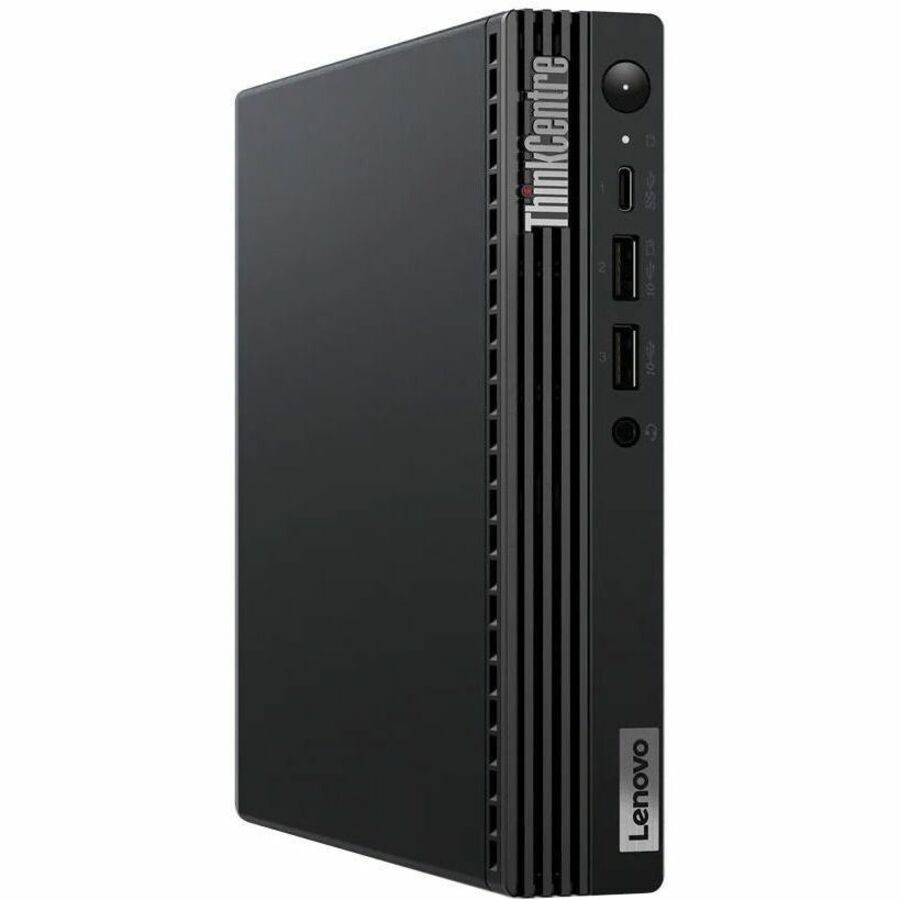

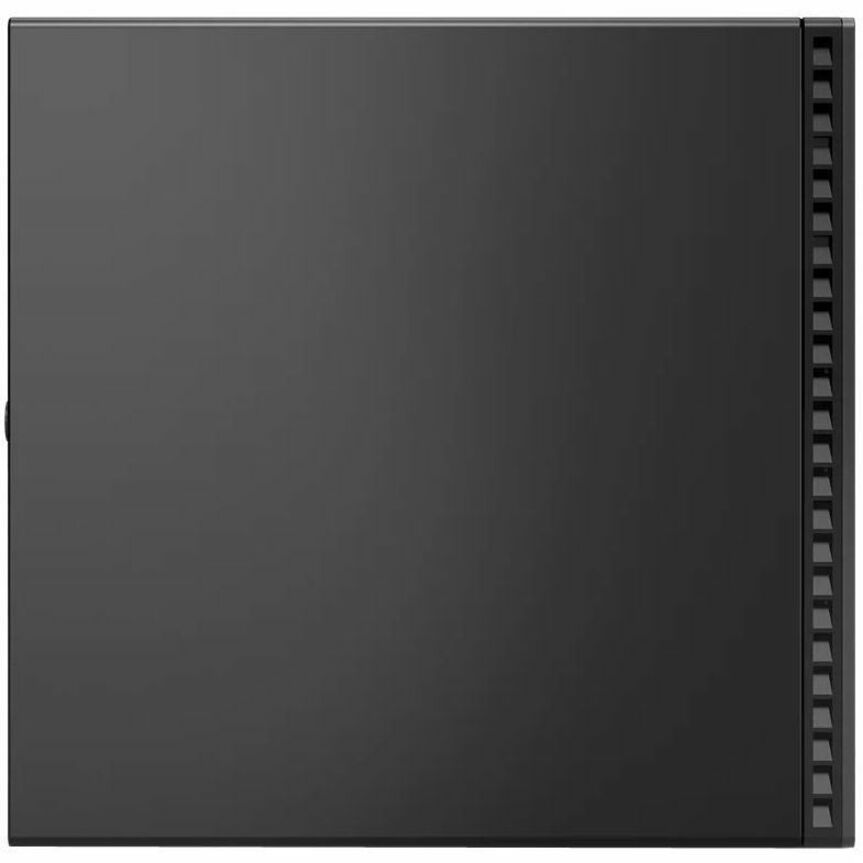

Lenovo 12E30001US Desktop PC Overview
M Tiny Series | Compact yet full-featured desktops
Tiny in name but not in nature, M Series Tiny desktops deliver big-business performance with impressive processing power and platform stability. Both durable and energy efficient, they require very little space, too.
Power with peace of mind
Small enough to fit almost anywhere, M Series Tiny desktops give you the power to handle anything-from multitasking and multimedia to graphic design and high finance. They also come with the assurance that any future hardware changes will not affect the preloaded software image for up to 12 months, enabling you to plan ahead.
Durability meets versatility
Proudly carrying the Think name, these 1L PCs have undergone over 200 rigorous quality checks. Just as impressive, the Tiny can slide into the back of a ThinkCentre Tiny-in-One display (sold separately), transforming into a modular all-in-one PC. This versatile solution gives you the power to customize and upgrade your system however you like.
Technical Information
Processor
Processor Type:
Core i5
Processor Generation:
13th Gen
Processor Model:
i5-13400T
Processor Core:
Deca-core (10 Core)
Processor Speed:
1.30 GHz
Maximum Turbo Speed:
4.40 GHz
vPro Technology:
No
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
Q670
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR4 SDRAM
Memory Configuration:
1 x 16GB
Total Number of Memory Slots:
2.0
Number of Occupied Memory Slots:
1.0
Storage
Total Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
PCI Express NVMe 4.0 x4
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics 730
Graphics Memory Technology:
DDR4 SDRAM
Graphics Memory Accessibility:
Shared
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ax
Bluetooth:
Yes
Input Devices
Keyboard Localization:
English
Interfaces/Ports
Number of HDMI Outputs:
1
HDMI (Rear):
Yes
Total Number of USB Ports:
7
Number of USB 2.0 Ports (Rear):
1
Number of USB 3.2 Gen 1 Ports:
1
Number of USB 3.2 Gen 2 Ports:
4
Number of USB 3.2 Gen 1 Type-C Ports:
1
Number Of Ethernet Ports:
1
Number of DisplayPort Outputs (Rear):
2
DisplayPort (Rear):
Yes
Operating System
Operating System Platform:
Windows
Operating System:
Windows 11 Pro
Operating System Language:
English
Power Description
Maximum Power Supply Wattage:
90 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Tiny
Height:
1.4"
Width:
7"
Depth:
7.2"
Weight (Approximate):
2.76 lb
Miscellaneous
Package Contents:
- ThinkCentre M70q Gen 4 12E30001US
- Keyboard
- Mouse
- AC Adapter
- Vertical Stand
Systems Management:
No vPro Support
Features:
Security Slot
Energy Star:
Yes
TCO Certified:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
- TCO Certified 9.0
Energy Efficiency Compliance:
- Energy-related Products Directive Lot 3 (ErP Lot 3)
- Energy-related Products Directive Lot 7 (ErP Lot 7)
Energy Efficiency Certification:
ENERGY STAR 8.0
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3-year, Onsite
Item Numbers
GTIN:
0196804516738
UPC:
196804516738
EAN:
0196804516738
UNSPSC:
43211507
Frequently Asked Questions
What processor does the Lenovo 12E30001US ThinkCentre M70q Gen 4 use?
The Lenovo 12E30001US features an Intel Core i5-13400T deca-core (10-core) processor running at 1.30 GHz, delivering reliable performance for business applications and multitasking. This 13th generation Intel processor is paired with Intel UHD Graphics 730 for integrated graphics capabilities. We offer this model configured and ready to deploy from our warehouse.
How much memory and storage does this ThinkCentre M70q come with?
This desktop PC includes 16 GB of DDR4 SDRAM memory and a 256 GB PCI Express NVMe 4.0 x4 SSD for fast boot times and application loading. The compact design doesn't compromise on storage performance, making it suitable for warehouse management and logistics operations. Contact us today if you need alternative configurations.
Is the Lenovo ThinkCentre M70q Gen 4 suitable for multi-monitor setups?
Yes, the ThinkCentre M70q is designed to support multiple displays through its rich connectivity options, making it ideal for warehouse managers and logistics coordinators who need to monitor multiple systems simultaneously. The Intel UHD Graphics 730 provides the necessary graphics capability for extended display configurations. Visit barcodesinc.com to explore display connectivity specifications.
What operating system and connectivity features are included?
The Lenovo 12E30001US ships with Windows 11 Pro 64-bit and includes Wi-Fi connectivity (Intel AX211 vPro) and Bluetooth 5.1 or above for wireless flexibility. It features comprehensive USB and Ethernet connectivity for seamless integration into existing IT infrastructure. We offer this fully configured system ready for immediate deployment.
What is the physical size and form factor of the ThinkCentre M70q Gen 4?
The ThinkCentre M70q features a compact Tiny form factor, measuring approximately 179 x 182.9 x 36.5 mm, making it ideal for space-constrained warehouse offices and retail environments. Despite its small footprint, it delivers robust performance with toolless upgradeability for future enhancements. Contact us today for space-planning assistance.
What security features does the Lenovo 12E30001US include?
This desktop includes a discrete TPM 2.0 chip and Intel vPro technology for enterprise-grade security, protecting sensitive logistics and warehouse data. Windows 11 Pro provides additional security features including Windows Defender and encryption capabilities. We recommend this system for organizations requiring compliance with IT security standards.
The Lenovo 12E30001US Desktop PC is also known as
12E30001US
