Lenovo 11051CU Products

Part Number: 11051CU
Model: ThinkServer TS130
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
1
Number of Processors Installed
1
Processor Type
Xeon
Processor Model
E3-1225

Product Description:

  1 x Xeon E3-1225 (3.10 GHz) Processor, 4 CPU Cores, 2 x 3.5" DC SATA Hard Drive Bays, 1 x 4GB 1333MHz uDIMM RAM, 1 x 280W Fixed Power Supply, DVD ROM Optical Drive
Explore all Lenovo ThinkServer TS130 Products
Add to Quote
Lenovo 11051CU Products
Lenovo 11051CU Products
Lenovo 11051CU Products
Lenovo 11051CU Products
Lenovo 11051CU Products Lenovo 11051CU Products Lenovo 11051CU Products Lenovo 11051CU Products

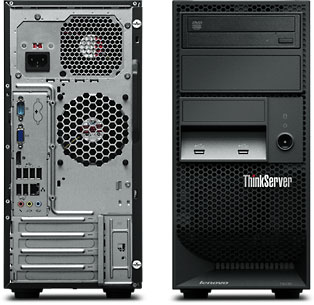

Lenovo ThinkServer TS130 Products Model Overview

With its whisper-quiet design, the powerful single-processor ThinkServer TS130 tower is ideal for nearly any setting, including retail, branch office, and any demanding work environment. This compact server offers dramatic performance gains over the previous generation even as it decreases power consumption and increases efficiency. With built-in RAID and up to 4TB of storage, the ThinkServer TS130 protects data and delivers huge scalability. With enterprise-class hard drives and error-code correcting (ECC) memory, the ThinkServer TS130 features rugged components for 24/7 performance and reliability.
Lenovo 11051CU Products Overview

ThinkServer TS130 offers dramatic performance gains yet lower power consumption versus its predecessor. Nicely configured in a compact, whisper-quiet design, you can deploy TS130 nearly anywhere: retail, branch offices or any demanding work environments. Remote manageability is a breeze with TS130, with available Intel Active Management Technology (AMT). With onboard RAID, enterprise-class hard drives and durable error-code correcting (ECC) memory, the TS130 offers outstanding durability, performance, and value for deployments large or small. Configuring TS130 is easy, with broad channel inventory and an impressive list of ThinkServer Options and Services - quality and innovation you trust.

Processor
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Type:
Xeon
Processor Model:
E3-1225
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.10 GHz
Cache:
6 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
No
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C206
Memory
Standard Memory:
4 GB
Maximum Memory Supported:
16 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
DDR3-1333/PC3-10600
Total Number of Memory Slots:
4
Storage
Number of Hard Drives:
1
Total Hard Drive Capacity:
500 GB
Hard Drive Interface:
Serial ATA/300
Hard Drive RPM:
7200
Hard Drive Configuration:
1 x 500GB
Optical Drive Type:
DVD-Reader
Optical Media Supported:
DVD-ROM
Dual-Layer Media Supported:
Yes
Controllers
Controller Type:
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
0, 1
I/O Expansions
Number of Total Expansion Bays:
4
Number of External 5.25" Bays:
2
Number of 3.5" Bays:
2
Total Number of Expansion Slots:
4
Number of PCI Slots:
2
Number of PCI Express x1 Slots:
1
Number of PCI Express x16 Slots:
1
Display & Graphics
Graphics Memory Accessibility:
Shared
Graphics Memory Technology:
DDR3 SDRAM
Network & Communication
Modem:
No
Ethernet Technology:
Gigabit Ethernet
Input Devices
Keyboard:
No
Pointing Device Type:
No
Interfaces/Ports
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
VGA:
Yes
Modem (RJ-11):
No
DisplayPort:
Yes
Operating System
Operating System:
No
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
280 W
Physical Characteristics
Color Family:
Black
Product Color:
Raven Black
Form Factor:
Tower
Height:
14.8"
Width:
6.9"
Depth:
16.9"
Miscellaneous
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0645743187092
UPC: 645743187092
EAN: 0645743187092
UNSPSC: 43211501
