Standard Memory:
256 KB
Memory Technology:
SRAM
Lantronix XDT10P0IA-01-S Console & Device Servers
Part Number:
XDT10P0IA-01-S
Model:
Lantronix Console & Device Servers Model Overview
Browse Lantronix’s serial-to-IP console server solutions

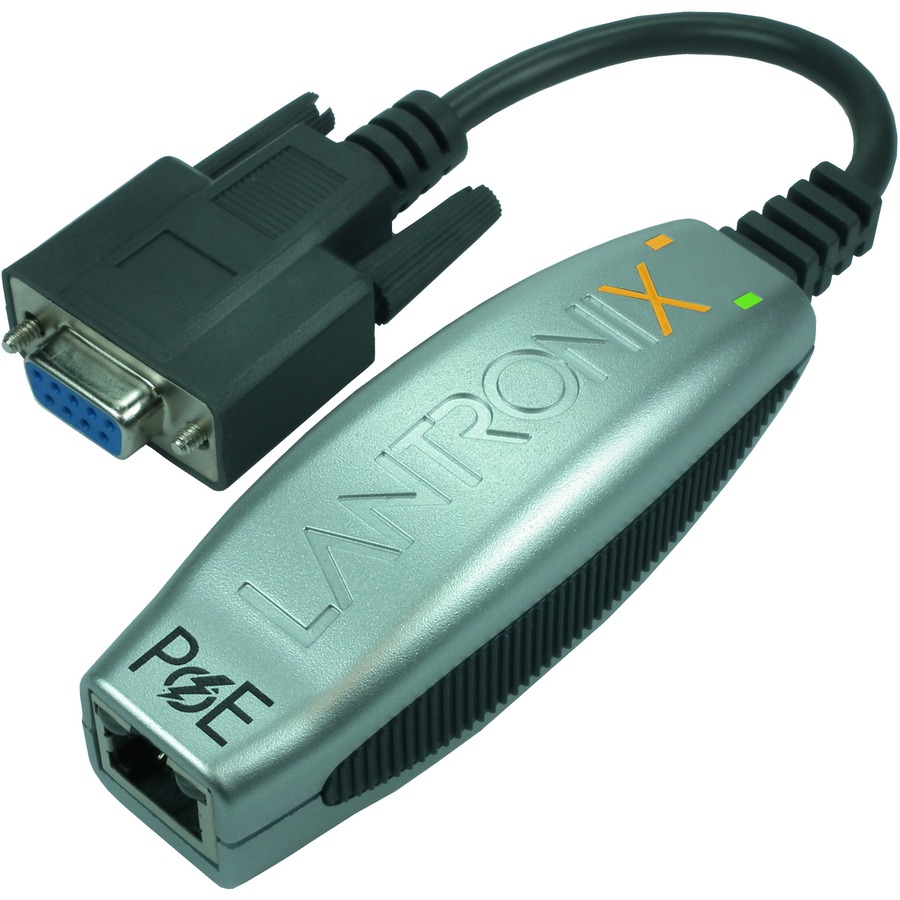

Lantronix XDT10P0IA-01-S Console & Device Servers Overview
Portable & Flexible
With an integrated Ethernet port and serial cable, multiple power options including PoE, and an industry-best five year warranty, the xDirect-IAP device server provides a portable, extremely flexible, and highly affordable network connectivity solution.
Robust & Easy
With plug-and-play simplicity, small form factor, multiple power options, and a robust device server application, xDirect-IAP provides the easiest and shortest path to network connectivity 'right on the wire'.
Memory
Media & Performance
Media Type Supported:
Twisted Pair
Wireless Specifications
Wireless LAN:
No
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Standard:
10/100Base-TX
Interfaces/Ports
Network (RJ-45):
Yes
Phone Line (RJ-11):
No
Network (RJ-11):
No
USB:
No
Serial Port:
Yes
Parallel Port:
No
Centronics Port:
No
Management Port:
No
PoE (RJ-45) Port:
No
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
1
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Height:
1.1"
Width:
1.3"
Depth:
9.5"
Weight (Approximate):
2.40 oz
Miscellaneous
Certifications & Standards:
Emissions:
- FCC Part 15, Subpart B, Class B
- EN55022, Class B
- EN61000-3-2, EN61000-3-3
- ICES-003 Issue 4
- AS/NZS CISPR22
- EN55024
- EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,
- EN61000-4-6, EN61000-4-8, EN61000-4-11
- UL 60950-1, 2nd Edition
- CAN/CSA C22.2 No. 60950-1-07, 2nd Edition
- CE
- VCCI
- C-Tick
- IEC 60950-1 2005, 2nd Edition
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0783384235663
UPC:
783384235663
EAN:
0783384235663
UNSPSC:
43222625
