Device Type:
Console Server

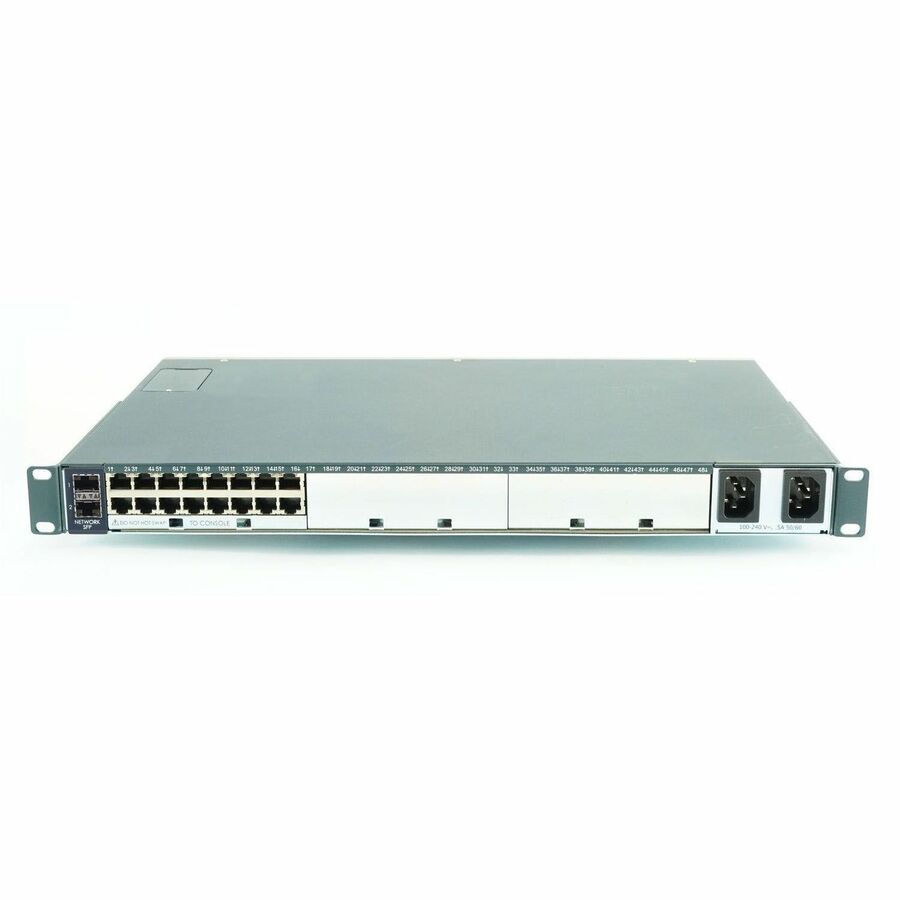

Lantronix SLC80162211G Console & Device Servers
Part Number:
SLC80162211G
Model:
Lantronix Console & Device Servers Model Overview
Browse Lantronix’s serial-to-IP console server solutions
Lantronix SLC80162211G Console & Device Servers Overview
- Secure access to IT equipment with RS-232 and USB console ports
- Access devices via Telnet/SSH or a Web browser-based console client without any proprietary software.
- Leverage the command line interface of most IT equipment for reconfiguring, rebooting and reloading firmware from a single point of contact.
- Connect in-band with dual Gigabit Ethernet or dual SFPs and through out-of-band connections including dial-up and cellular connectivity options.
- Modular design to deploy what you need at each location, up to 48 ports: RJ-45 serial, Ethernet, or serial USB.
Technical Information
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
- 10/100/1000Base-T
- 1000Base-X
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Management Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of Serial Ports:
16
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.8"
Width:
17.3"
Depth:
12"
Weight (Approximate):
11.10 lb
Miscellaneous
Package Contents:
- SLC 8000 Device Server
- 2 x AC Supply
- 110V North American AC Power Cord
Certifications & Standards:
- FCC Part 15
- CE (EN55022, EN55024, EN60950)
- CSA
- VCCI
- UL/CUL
- C-Tick
- CB Scheme
- NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197
- IPv6 Ready
- FIPS 140-2
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
United States
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0783384238442
UPC:
783384238442
EAN:
0783384238442
UNSPSC:
43222625
