Processor Speed:
1 GHz

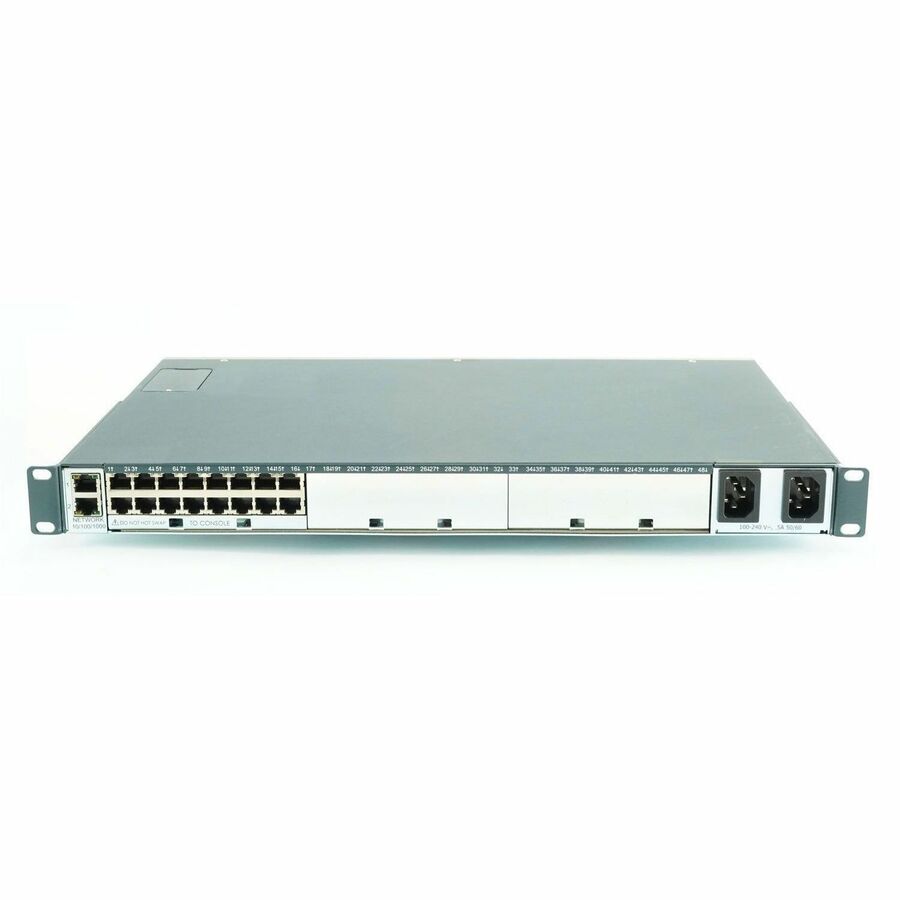

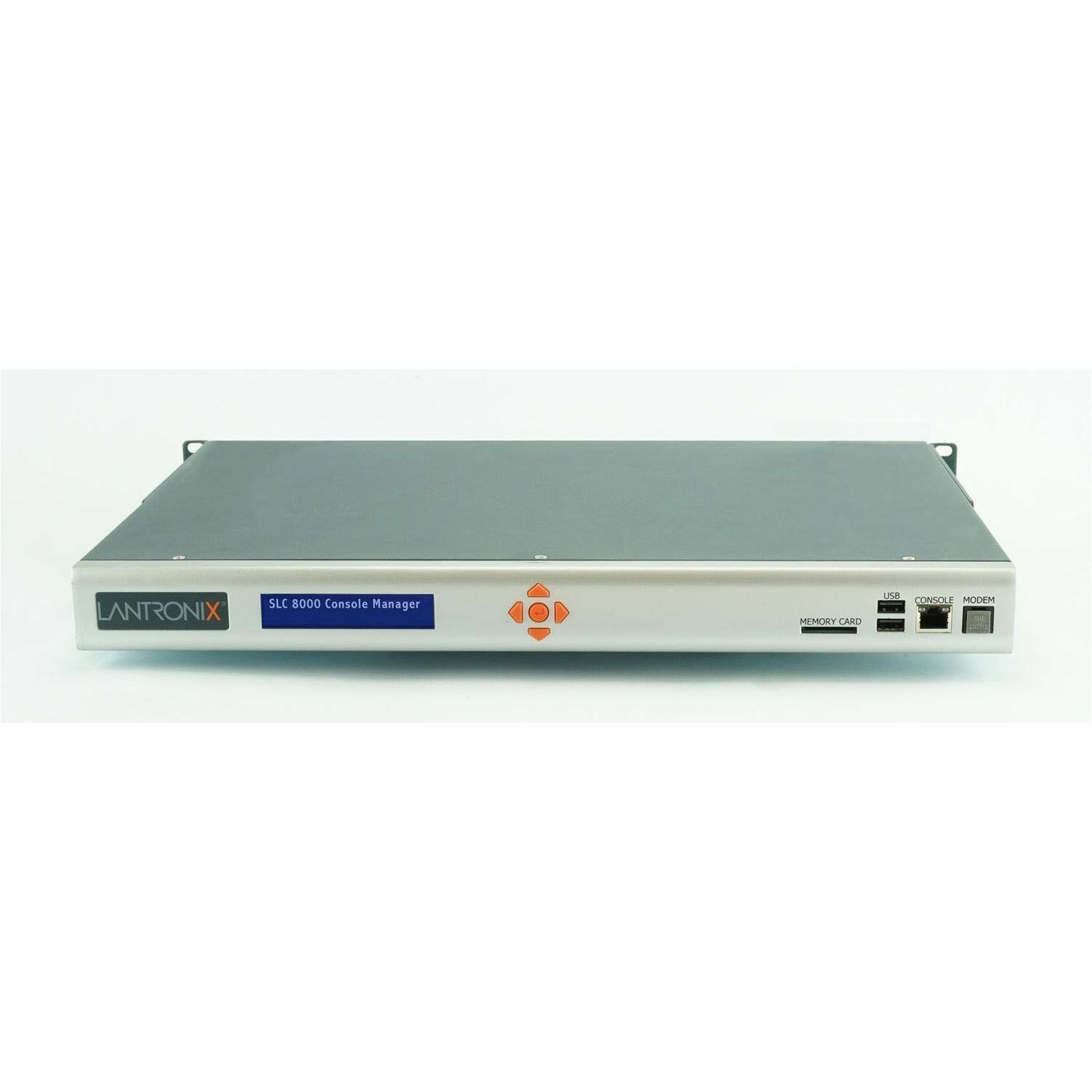

Lantronix SLC80162201S Console & Device Servers
Part Number:
SLC80162201S
Model:
Lantronix Console & Device Servers Model Overview
Browse Lantronix’s serial-to-IP console server solutions
Lantronix SLC80162201S Console & Device Servers Overview
- Secure access to IT equipment with RS-232 and USB console ports
- Access devices via Telnet/SSH or a Web browser-based console client without any proprietary software.
- Leverage the command line interface of most IT equipment for reconfiguring, rebooting and reloading firmware from a single point of contact.
- Connect in-band with dual Gigabit Ethernet or dual SFPs and through out-of-band connections including dial-up and cellular connectivity options.
- Modular design to deploy what you need at each location, up to 48 ports: RJ-45 serial, Ethernet, or serial USB.
Processor & Chipset
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Wireless Specifications
Wireless LAN:
No
ISM Band:
No
UNII Band:
No
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Parallel Port:
No
Centronics Port:
No
Management Port:
Yes
PoE (RJ-45) Port:
No
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
2
Number of Serial Ports:
16
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.8"
Width:
17.3"
Depth:
12"
Weight (Approximate):
11.10 lb
Miscellaneous
Package Contents:
- SLC 8000 Advanced Console Manager, RJ45 16-Port, AC-Dual Supply
- 2 x Inlet AC Power Cords
- 1 x RJ45 to DB9F Adapter
- 1 x RJ45 to RJ45, CAT5 Cable, 6.6 ft (2m)
- 1 x RJ4 Loopback Cable
Certifications & Standards:
- FCC Part 15
- CE (EN55022, EN55024, EN60950)
- CSA
- VCCI
- UL/CUL
- C-Tick
- CB Scheme
- NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197
- IPv6 Ready
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0783384236356, 0783384236387
UPC:
783384236356, 783384236387
EAN:
0783384236356, 0783384236387
UNSPSC:
43222625
