Lantronix EMG751101S Wireless Router

Lantronix - Wireless Routers, Lantronix EMG 7500, Edge Management Gateway, Remote Management

Intelligent Centralized Management
Always-on secure out-of-band access
4G/LTE cellular failover and failback
Policy-based device and feature access
Collect and store asset telemetry data
Secure REST APIs to access data
Automation with Python scripting
Cisco IP SLA performance monitoring
Data securely encrypted inflight and at rest
Software-defined networking

Need a different version? See all Lantronix Parts Servers

$1,806.74

Chat Now for Qty Discount

Add to Quote

Overview

Lantronix Parts Server Model Overview

Parts and products from Lantronix.

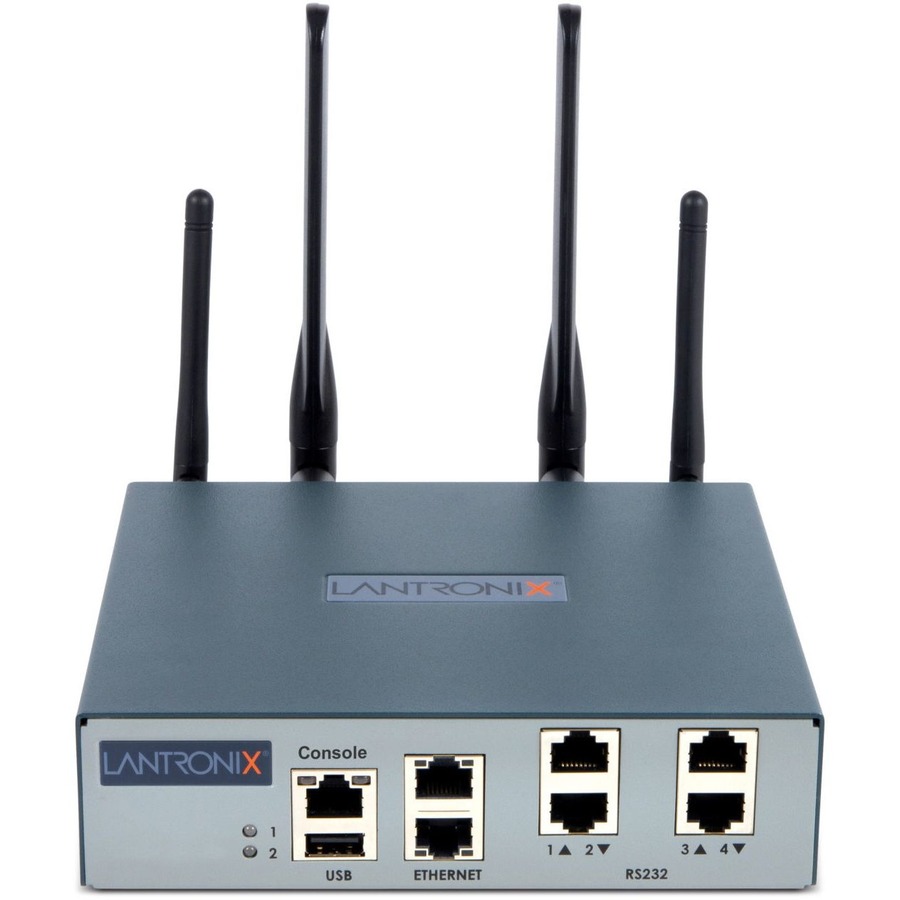

Lantronix EMG751101S Wireless Router Overview

The Lantronix® EMG™ 7500 - Edge Management Gateway is the newest addition to the EMG family of edge solutions for branch offices, remote locations, retail stores where small port count, fixed configurations and integrated cellular connectivity is needed at a cost-effective price.

Easy Centralized Management - ConsoleFlow™

ConsoleFlow™ is Lantronix's Software as a Service, cloud, or on-premise management platform for all deployed Lantronix edge management gateways and connected IT equipment. It offers a single pane of glass for centralized management and automated monitoring with real-time notifications. Mobile access from any iOS or Android platform provides secure access to your IT equipment. ConsoleFlow™

Cost-Effective Secure Connectivity - Anytime, Anywhere

The EMG7500 boasts a smaller size than its EMG8500 sibling, while still offering up to 8 management ports.
The EMG7500 is great for customers where space and cost are of primary concern. This edge management gateway is perfectly suited for branch offices and unmanned locations, such as ATM's, cell towers, etc. This cost-effective member of the EMG family has fixed FRU's, integrated cellular connectivity and internal flash memory. Connectivity Services

Quick Recovery from Downtimes

An integrated automatic fail-over/fail-back mechanism allows users to connect to their network equipment even when the primary network connection is congested or unresponsive. The EMG7500 can failover to a cellular 4G/LTE connection where all global carriers are supported with services such as Private APN, VPN access, public, and private IP addressing. Network Performance Monitoring with support of IPSLA simulation traffic can ensure continuous and reliable network communication and help mitigate Lights Out scenarios.

Detailed Specs

Physical Characteristics

Height:

1.7"

Width:

5.7"

Depth:

6.4"

Miscellaneous

Package Contents:

EMG 7500 - Edge Management Gateway
Desktop Power Supply

Additional Information:

RS232 Serial 8-Port, LTE Cellular

Security and Authentication:

Enterprise-grade security Secure Sockets Layer (TLS v1, v1.1, v1.2, v1.3)
Packet filtering (firewall)
Per port user permissions
Configurable user/group rights
Remote authentication: LDAP/AD,RADIUS, Kerberos, TACACS+, NIS
Local username/password
NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197
FIPS 140-2 compliant cryptography (Certificate #1878)

Serial Device Port Access:

Software programmable reversible pinouts on device ports Serial RS232
Telnet/SSH to EMG command line interface
Telnet/SSH/RAW-TCP direct to an IP address
HTML5 support for Java-free web terminal SSH access to console ports
Multiple Telnet/SSH sessions
Simultaneous user access to the same console port

Data Capture and Notification:

Port buffering-256 KB per port
Port logging to local files, syslog, USB thumb drive, SD card, and NFS share
System, audit and port logging
Event notification via email, SNMP or Syslog entry
Character string recognition

Management:

Quick setup and configuration web interface (TLS)
CLI setup script
CLI (Telnet, SSH, WebTerminal or direct console port access)
SNMP (MIB II) -v1, v2, v3 compatible, custom MIBs
RPM (remote power management) feature to control and monitor industry leading PDU & UPS devices
Active user list display, port monitoring and timeout
Diagnostics and port status counters

Performance monitoring utility
Packet generation utility
Network trace utility

Optional digital I/O and special integration with Sensorsoft environmental sensors
Local subnet search for other Lantronix console manager solutions
Maximum 15 users per device port

Additional Protocols Supported:

DHCP and BOOTP for dynamic IP address assignment
NTP for time synchronization
FTP, TFTP, SFTP, SCP client for file transfers
DNS IP address name resolution
SSH, TLS, SSL, Telnet and TCP for connections in/out of every device port, UDP, PPP with PAP/CHAP, NFS and CIFS for data storage
StrongSwan IPsec VPN client
RIP and RIPv2
IPv6 Addressing supported

Interfaces:

Front Panel, Console and Logging: 1 RJ45 Port Serial RS232, 1 USB Port Host type A
Front Panel, Connectivity: 2 RJ45 Ports Ethernet (10/100/1000Mbps)
Back Panel Logging: 1 microSD slot
Back Panel Connectivity: LTE/4G Cellular Radio with antennas and microSIM slot, optional Wi-Fi and antennas

Environmental Sensors Support:

Plug and go connectivity support for sensors and accessories used to measure/ detect temperature, humidity, power availability and dry-contact closures

Memory:

1/2 GB Internal NAND Flash
1/2 GB Internal DRAM
External Storage: microSD slot for up to 128 GB Flash

Power:

Power Usage: 20W

Central Management:

Compatible with the Lantronix ConsoleFlow™ central management software

Environmental:

Temperature:

Operating: 0 to 50° C (32 to 122° F), 30 to 90%RH, non-condensing
Storage: -20 to 80° C (-4 to 176° F), 10 to 90% relative humidity, non-condensing

Application/Usage:

Remote Management

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0783384243439

UPC: 783384243439

EAN: 0783384243439

UNSPSC: 43222634
