Lantronix EDS3016PS1NS Console & Device Servers

Part Number: EDS3016PS1NS
Model:
$968.23

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Standard Memory
512 MB
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Standard
10/100/1000Base-T

Product Description:

  Console & Device Servers, Lantronix, EDS 3000PS Secure Serial Device Server, 16 Serial Ports, 1GbE, 110–240VAC

Lantronix Console & Device Servers Model Overview

Browse Lantronix’s serial-to-IP console server solutions
Lantronix EDS3016PS1NS Console & Device Servers Overview

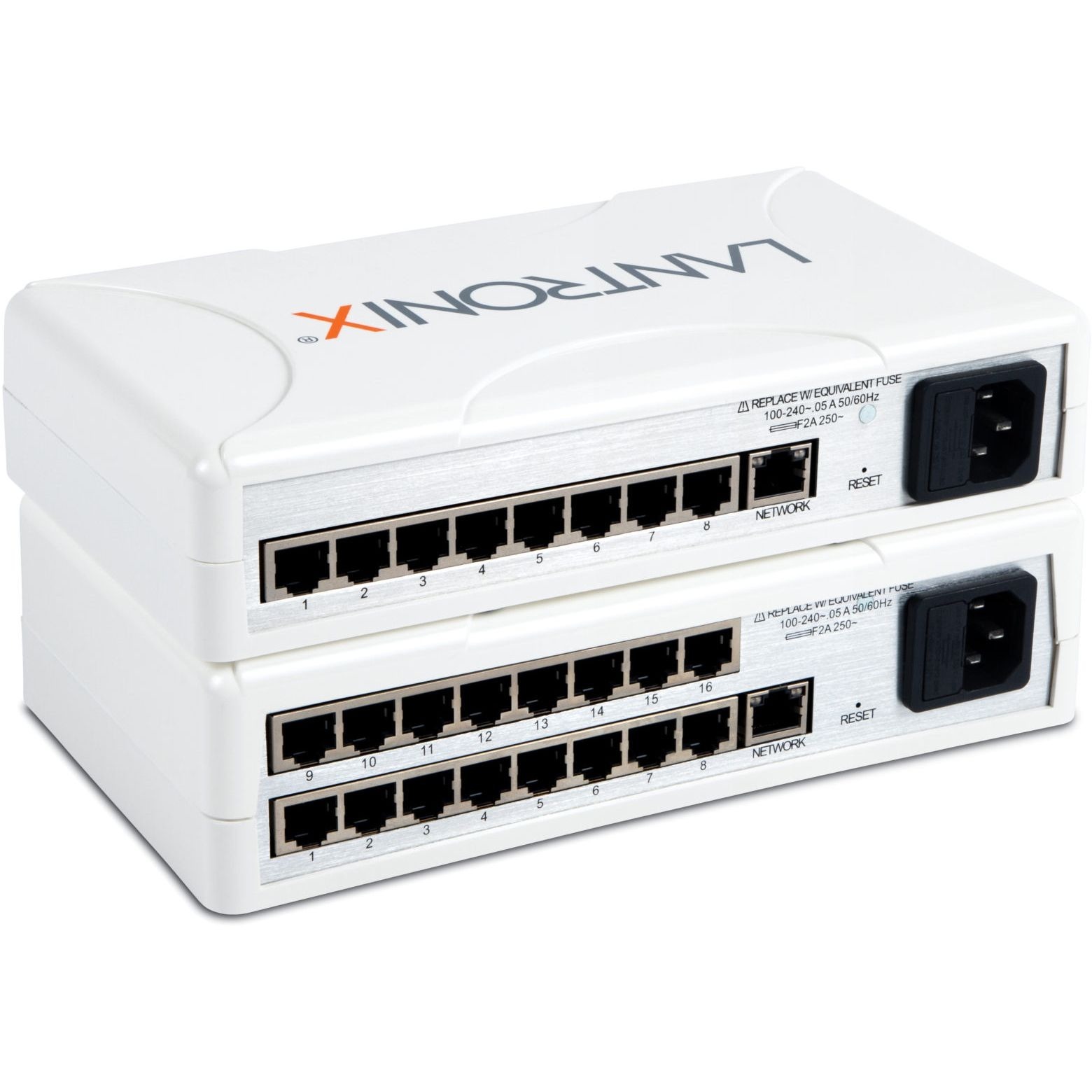

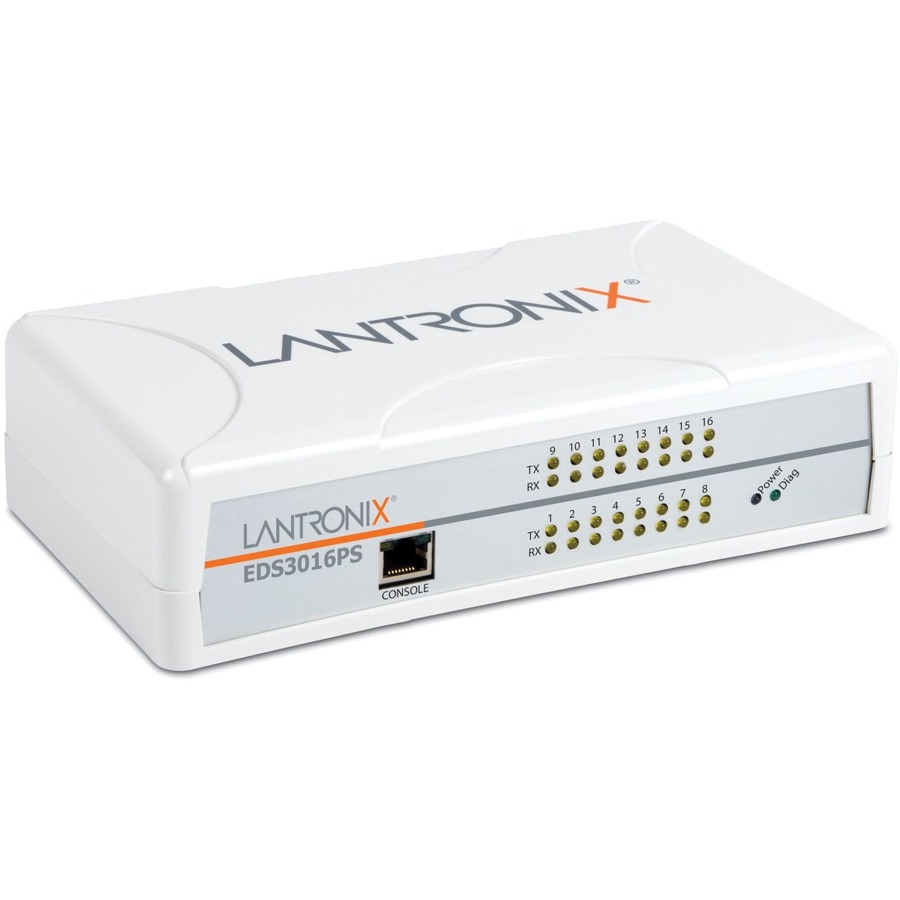

The EDS3000PS is a compact office grade plastic enclosed hybrid Ethernet terminal/multi serial port device servers (8-16) for easy remote access and management of virtually any IT/networking equipment or edge devices like medical equipment, POS terminals, or security equipment.

Comprehensive Device Security Framework
EDS3000PS device server delivers an unprecedented level of intelligence and safety with SSL/ TLS, AES, and SSH built-in. EDS provides enterprise-level security, allowing safe remote access and management from practically anywhere.

Lantronix core software carries 30 years of 'data-center grade' protection, so each networked device has the same level of security as corporate data center equipment and provides robust defenses to hostile Internet attacks.

Easy Configuration
Setup is a breeze with Windows-based Lantronix Provisioning Manager, which can be used locally or remotely with the Lantronix ConsoleFlow™ device management platform. A "Cisco-like" command-line interface (CLI) simplifies configuration and control, making it easier to integrate edge devices or data center equipment into the network. EDS3000PS leverages the Lantronix Com Port Redirector virtualization software, allowing existing applications to work with the EDS with no code modifications.

Centralized Device Management Platform
Monitor, manage, and control your devices from anywhere, at any time with the ready-touse software platform web application. The easy-to-use platform provides software-defined automation with zero-touch provisioning across all of your devices and the capture of device telemetry data for event management and analytics.
Memory
Standard Memory:
512 MB
Media & Performance
Media Type Supported:
Twisted Pair
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
16
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Plug/Connector Type:
IEC Connector
Physical Characteristics
Form Factor:
  • Desktop
  • Wall Mountable
Height:
2.4"
Width:
8.9"
Depth:
5"
Weight (Approximate):
1.36 lb
Miscellaneous
Package Contents:
  • EDS EDS3016PS Device Server
  • Power Cord
Additional Information:

Hardware:

  • CPU: Cortex A9
  • On-board memory: 8MB Flash
  • 4 Gbit (512 MB) Flash

Serial Interface:

  • Software selectable data rates from 300 to 230K Baud
  • Characters: 7 or 8 data bits
  • Parity: Odd, Even, None
  • Stop Bits: 1 or 2
  • Modem Control Signals: CTS, RTS, DTR, DCD
  • Flow Control: XON/XOFF (software)
  • CTS/RTS (hardware), None

Network Interface

  • Protocols: HTTP, HTTPS, FTP, TFTP, Telnet, TCP, UDP, DHCP, SSHv2 , SSLv3, SNMP v2, Auto IP, RSS, ARP, ICMP, SYSLOG, SMTP, DNS, SNTP

Security:

  • SSL 3, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3s
  • MD5,SHA-1,SHA-2
  • RSA, DSA and ECDSA
  • Password protection
  • IP address filtering

Software:

  • Lantronix Provisioning Manager
  • ComPort Redirector™
  • Secure ComPort Redirector

Management:

  • Internal web server, SNMP v1, SNMP v3, Serial Login
  • Telnet SSH login, XML
  • ConsoleFlow
  • Upgradeable FW via the Web Manager, FTP or serial port

Internal Web Server:

  • Customizable with CGI
  • Web content on local file system and updatable through ftp

Environmental:

  • Operating: 0° to 55° C (32° to 131° F)
  • Storage: -40° to 70° C (-40° to 151° F)
  • Relative Humidity: 5 to 95%, noncondensing
Certifications & Standards:

Regulatory Approvals:

  • FCC
  • IC
  • CE
  • UL/CB
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0783384242425
UPC: 783384242425
EAN: 0783384242425
UNSPSC: 43222625
