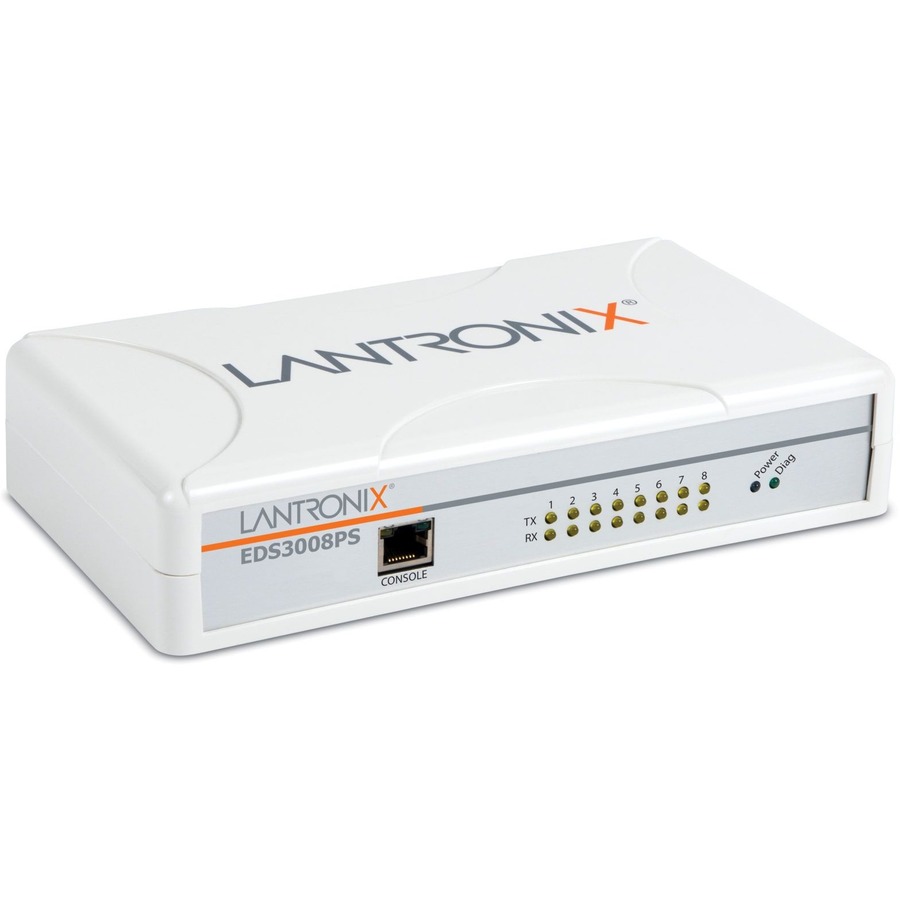

Lantronix EDS3008PS1NS Data Networking

Lantronix - Lantronix EDS EDS3008PS Device Server, New, 512 MB, Twisted Pair, 1 x Network (RJ-45), 8, 10/100/1000Base-T, Gigabit Ethernet, Desktop, Wall Mountable
  • Ethernet 10Base-T or 100Base-TX (auto sensing and hard-coded, auto crossover)
  • Interface: Software selectable RJ45 serial ports with customizable baud rate support for non-standard serial speeds
  • Data Rates: Software selectable standard baud rates from 300 to 230 K Baud
  • Connectors: 8 or 16 RJ45 serial ports depending upon model
  • Characters: 7 or 8 data bits
  • Parity: Odd, even, none
  • Stop Bits: 1 or 2
  • Modem Control Signals: CTS, RTS, DTR, DCD
  • Flow Control: XON/XOFF (software), CTS/RTS (hardware), None
Read More
$1,091.23
In Stock
Add to Quote
Lantronix Parts Server Model Overview
Parts and products from Lantronix.
Lantronix EDS3008PS1NS Data Networking Overview
The EDS3000PS is a compact office grade plastic enclosed hybrid Ethernet terminal/multi serial port device servers (8-16) for easy remote access and management of virtually any IT/networking equipment or edge devices like medical equipment, POS terminals, or security equipment.

Comprehensive Device Security Framework
EDS3000PS device server delivers an unprecedented level of intelligence and safety with SSL/ TLS, AES, and SSH built-in. EDS provides enterprise-level security, allowing safe remote access and management from practically anywhere.

Lantronix core software carries 30 years of 'data-center grade' protection, so each networked device has the same level of security as corporate data center equipment and provides robust defenses to hostile Internet attacks.

Easy Configuration
Setup is a breeze with Windows-based Lantronix Provisioning Manager, which can be used locally or remotely with the Lantronix ConsoleFlow™ device management platform. A "Cisco-like" command-line interface (CLI) simplifies configuration and control, making it easier to integrate edge devices or data center equipment into the network. EDS3000PS leverages the Lantronix Com Port Redirector virtualization software, allowing existing applications to work with the EDS with no code modifications.

Centralized Device Management Platform
Monitor, manage, and control your devices from anywhere, at any time with the ready-touse software platform web application. The easy-to-use platform provides software-defined automation with zero-touch provisioning across all of your devices and the capture of device telemetry data for event management and analytics.
Processor & Chipset
Processor Manufacturer:
ARM
Memory
Standard Memory:
512 MB
Media & Performance
Media Type Supported:
Twisted Pair
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
8
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Plug/Connector Type:
IEC Connector
Physical Characteristics
Form Factor:
  • Desktop
  • Wall Mountable
Height:
1.7"
Width:
8.9"
Depth:
5"
Weight (Approximate):
1.10 lb
Miscellaneous
Package Contents:
  • EDS EDS3008PS Device Server
  • Power Cord
Additional Information:
Hardware:
  • CPU: Cortex A9
  • On-board memory: 8MB Flash
  • 4 Gbit (512 MB) Flash
Serial Interface:
  • Software selectable data rates from 300 to 230K Baud
  • Characters: 7 or 8 data bits
  • Parity: Odd, Even, None
  • Stop Bits: 1 or 2
  • Modem Control Signals: CTS, RTS, DTR, DCD
  • Flow Control: XON/XOFF (software)
  • CTS/RTS (hardware), None
Network Interface
  • Protocols: HTTP, HTTPS, FTP, TFTP, Telnet, TCP, UDP, DHCP, SSHv2 , SSLv3, SNMP v2, Auto IP, RSS, ARP, ICMP, SYSLOG, SMTP, DNS, SNTP
Security:
  • SSL 3, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3s
  • MD5,SHA-1,SHA-2
  • RSA, DSA and ECDSA
  • Password protection
  • IP address filtering
Software:
  • Lantronix Provisioning Manager
  • ComPort Redirector™
  • Secure ComPort Redirector
Management:
  • Internal web server, SNMP v1, SNMP v3, Serial Login
  • Telnet SSH login, XML
  • ConsoleFlow
  • Upgradeable FW via the Web Manager, FTP or serial port
Internal Web Server:
  • Customizable with CGI
  • Web content on local file system and updatable through ftp
Environmental:
  • Operating: 0° to 55° C (32° to 131° F)
  • Storage: -40° to 70° C (-40° to 151° F)
  • Relative Humidity: 5 to 95%, noncondensing
Certifications & Standards:
Regulatory Approvals:
  • FCC
  • IC
  • CE
  • UL/CB
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0783384242418
UPC: 783384242418
EAN: 0783384242418
UNSPSC: 43222625
