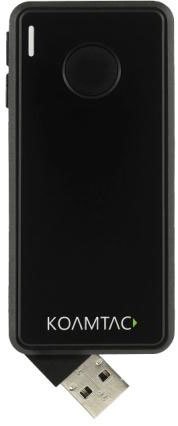

KoamTac KDC30 – Barcode Scanner – 1D

The KDC30 Imager Barcode Data Collector from KOAMTAC is your ultimate solution for efficient mobile auto-identification. Engineered for versatility, this compact and lightweight device effortlessly collects and stores barcode data, making it ideal for various applications, including retail, transportation, and healthcare. With a rechargeable battery capable of over 10 million scans, the KDC30's innovative design and user-friendly interface ensure seamless operation, powered by the included KTSync software for easy data management.

Key Features

• Ultra Compact & Lightweight design enhances portability
• Class 2 Bluetooth with HID/SPP/MFi profiles for versatile connectivity
• Rechargeable Li-Poly Battery with USB charging capability
• Stores 10,240+ product records for extensive data management
• KTSync with keyboard wedging feature for streamlined operations

Specifications

• Physical Characteristics:
  • Size: 38 mm x 83.5 mm x 18 mm (1.50" x 3.28" x 0.70")
  • Weight: 1.78 oz. (50.5 grams)
• Electrical Characteristics:
  • Battery: Lithium-Polymer (3.7V DC, 650mAh)
  • Charging: USB connector
• Scanning Performance:
  • Image Sensor: 1280 x 960 CMOS sensor
  • Scan Range: 1.6" (4 cm) ~ 10.8" (27 cm)
• User Environment:
  • Drop Spec: 4 feet (1.22m)
  • Operating: 32°F (0°C) ~ 113°F (45°C)
  • Storage: -4°F (-20°C) ~ 113°F (45°C)
  • Humidity: 5% ~ 85% (noncondensing)
• Interfaces:
  • Bluetooth® V2.1+EDR, Class 2, HID/SPP/MFi
  • USB to Serial (Swing-out USB Type A connector)
• Memory:
  • Flash ROM: 256KB Program
  • RAM: 64KB
  • Microprocessor: ARM11, 32 bits
  • Real-time Clock: Quartz RTC for timestamp

The KDC30i enables diverse mobile Auto-Identification applications for collecting barcode data.

Supports all Major 1D and 2D Barcodes
Ultra Compact and Lightweight
Bluetooth V2.1+EDR, Class 2, HID/SPP/MFi
Built-in Swing-out USB Connector
Powerful Keyboard Emulator with Keyboard Wedging
The sleek high-performance KDC30i embraces KOAMTAC'S innovative and user friendly design. An easy-to-replace rechargeable battery that can recharge from any USB port allows more than 5,000,000 barcode scans.
KDC Scanner comes with FREE KTSync keyboard wedging software and FREE SDK for Android, iOS (iPhone, iPod touch, iPad) and Windows, and technical support from our top engineers and development staff.
