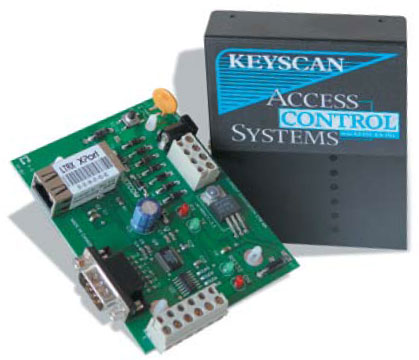

Keyscan NETCOM2 Access Control Equipment

Enhance your security infrastructure with Keyscan's NETCOM2 and NETCOM2H RS232 TCP/IP converters, designed for seamless connectivity over existing Ethernet networks. These devices allow multiple Access Control Units to communicate effortlessly on Local Area Networks (LAN) or Wide Area Networks (WAN). Offering both internal and external models, they ensure fast, easy installations while cutting down modem line costs through efficient static TCP/IP communication protocols. Perfect for both commercial and industrial applications, the NETCOM series simplifies remote monitoring and management for enhanced security control.

• Supports 10/100 Ethernet/Fast Ethernet applications
• Simplified configuration through Keyscan's user-friendly software interface
• Compatible with existing LAN/WAN networks, allowing unlimited remote connection
• Easy installation up to 100 ft between NETCOM2 and Access Control Units (ACUs)
• NETCOM2H includes housing and power supply for external networking
• Operates in extreme temperatures, making it suitable for diverse environments

• Power Requirements:
• Input Power: 10.2 to 32 VDC, 210 mA
• NETCOM2 powered by Access Control Unit
• NETCOM2H power supply included
• Cable Maximums:
• ACU/ECU to NETCOM2: 100 ft (22 AWG 3 pair shielded)
• NETCOM2 to PC: Existing LAN or WAN (static TCP/IP Protocol)
• Agency Approvals:
• Complies with Class B limits of EN 55022:1998
• Direct & Indirect ESD: complies with EN55024:1998
• Dimensions:
• NETCOM2: 3.031" x 3.896" (77mm x 99mm)
• NETCOM2H (with housing): 3.85" x 4.5" (97.85mm x 114.3mm)
• Operating Environment:
• Operating Temperature: -20° to 71° C (-4° to 158° F)
• Storage Temperature: -20° to 85° C (-4° to 158° F)
