Barcodes,Inc.

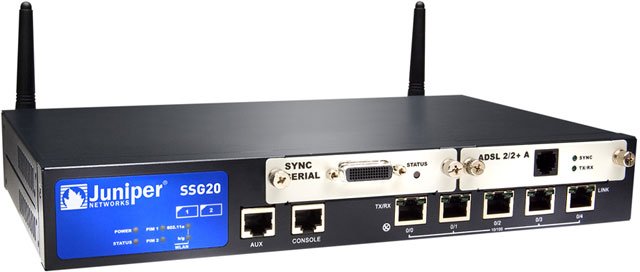

Juniper SSG-20-SH Data Networking Device


0.0

(No reviews)

Be the first to

Write a Review
Juniper SSG20 - Security Services Gateway 20 (with 2 Port Mini-PIM Slots, 256MB)
High-performance security platforms

The Juniper SSG20 Secure Services Gateways are purpose-built security appliances that deliver a perfect blend of performance, security, routing and LAN/WAN connectivity for small branch offices, fixed telecommuters and small standalone business deployments. Traffic flowing in and out of the branch office or business is protected from worms, spyware, trojans, and malware by a complete set of Unified Threat Management security features that include stateful firewall, IPsec VPN, intrusion prevention system (IPS), antivirus (includes antispyware, anti-adware, antiphishing), antispam and Web filtering.

Technical Information

  • Encryption Standard:
    • DES
    • 3DES (168-bit)
    • AES
  • Features: PAT
  • Firewall Protection:
    • Denial of Service (DoS)
    • Distributed Denial of Service (DDoS)
    • TCP Reassembly for Fragmented Packet Protection
    • Malformed Packet Protection
    • Deep Inspection Firewall
    • Protocol Anomaly Detection
    • Antivirus
    • Anti-phishing
    • Anti-spyware
    • Adware Protection
    • Keylogger Protection
    • Anti-spam
    • URL Filtering
    • Replay Attack Prevention
    • Network Attack Detection
  • Virtualization:
    • 4000 x Concurrent Session
    • 2800 x Concurrent Session
    • 200 x Policies
    • 25 x Concurrent VPN Tunnel
    • 10 x Tunnel Interface
    • 8 x Security Zone
    • 4000 x Concurrent Session
    • 2800 x Concurrent Session
    • 200 x Policies
    • 25 x Concurrent VPN Tunnel
    • 10 x Tunnel Interface
    • 8 x Security Zone

General Information

  • Product Type: Network Security/Firewall Appliance
  • Product Series: SSG
  • Brand Name: Juniper
  • Manufacturer: Juniper Networks, Inc
  • Product Name: Secure Services Gateway 20

Physical Characteristics

  • Height: 1.8"
  • Width: 11.6"
  • Depth: 7.4"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 3.30 lb

Interfaces/Ports

  • Total Number of Ports: 5
  • Management Port: Yes

Other

  • Additional Information:
    • Stateful protocol signatures
    • Built-in (internal) database - user limit Up to 100
    • 802.1X authentication
    • MTBF: 35.8 Yrs
    • Firewall performance (Large packets): 160 Mbps
    • Firewall performance(2) (IMIX): 90 Mbps

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

I/O Expansions

  • Number of Total Expansion Slots: 2
  • Number of PIM Slots: 2
  • Expansion Slot Type: PIM

Network & Communication

  • Network Standard: 10/100Base-TX
  • Ethernet Technology: Ethernet

Management & Protocols

  • Manageable: Yes

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)
