Juniper Networks SRX550-645AP-M-TAA Network Switch

The Juniper Networks SRX550-645AP-M-TAA Network Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Juniper Networks SRX550 - SRX550 Services Gateway with 4G DRAM, 8G CF and 1 AC PSU. TAA Compliant SKU
  • Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails
  • With 10/100/1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
  • Management capability provides control over the router's setup and configuration
  • With Gigabit Ethernet, retrieve up to 10x faster than standard Ethernet connectivity and provides high-performance
  • Rack mounting enables you to organize wires & secure cables for professional installation
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

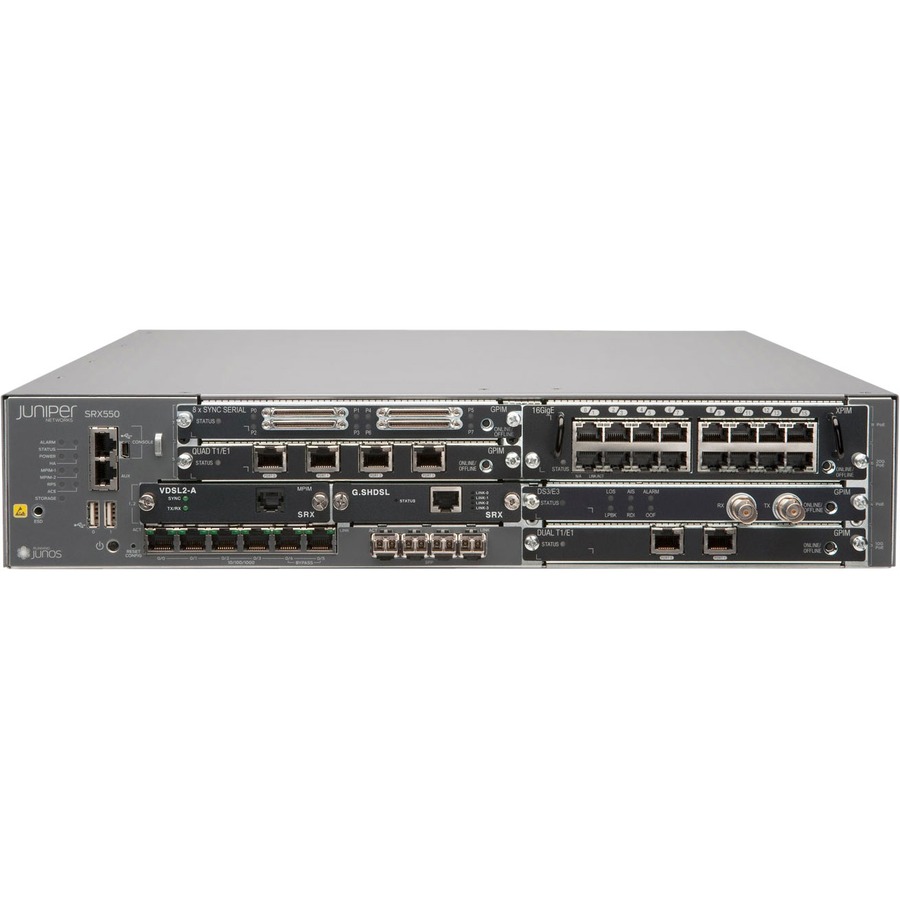

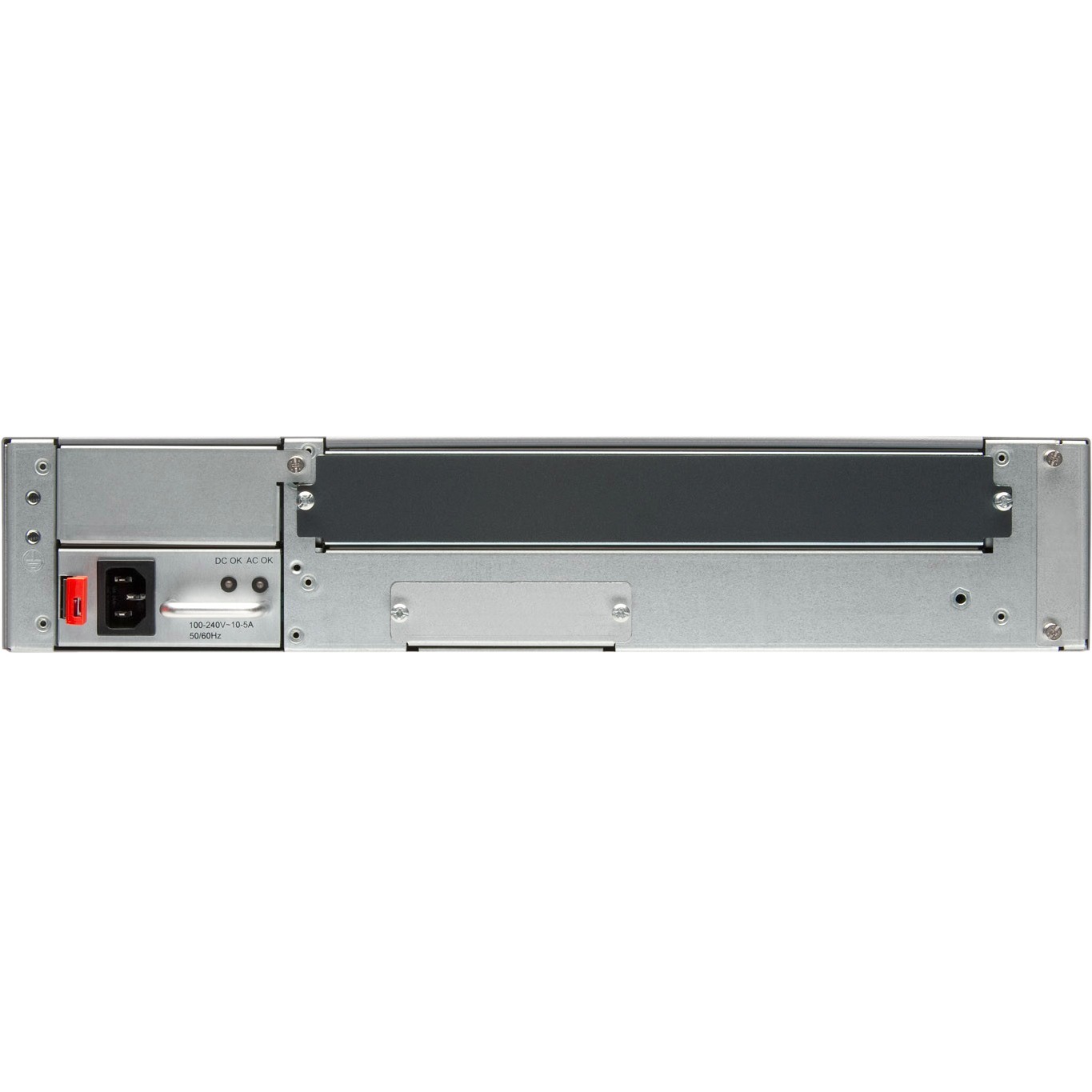

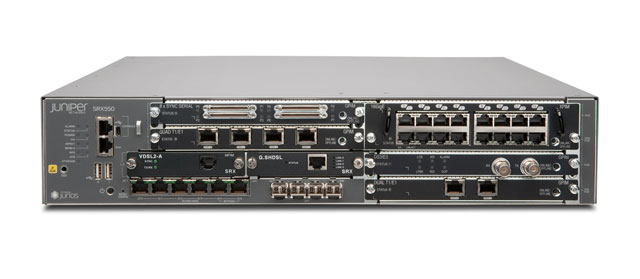

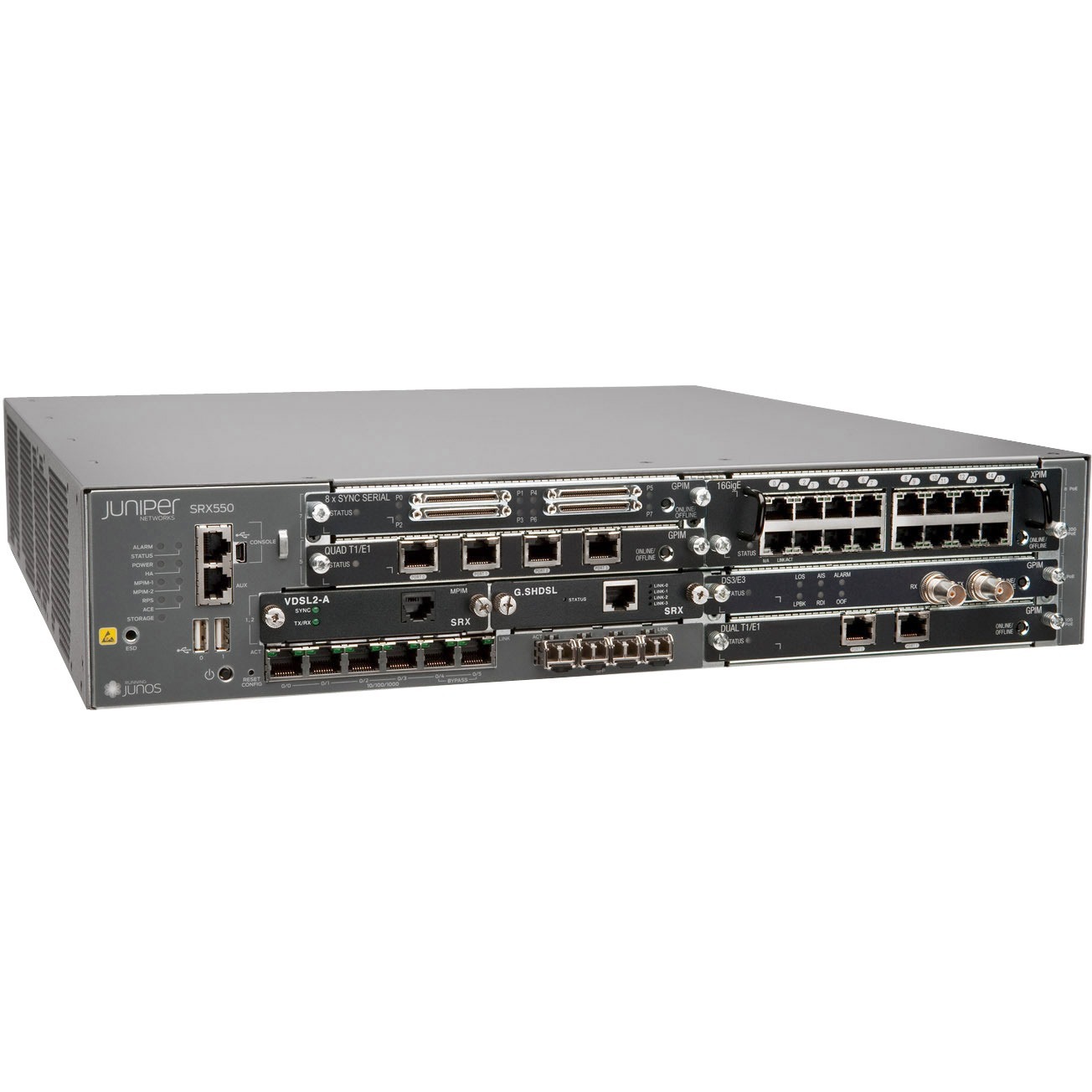

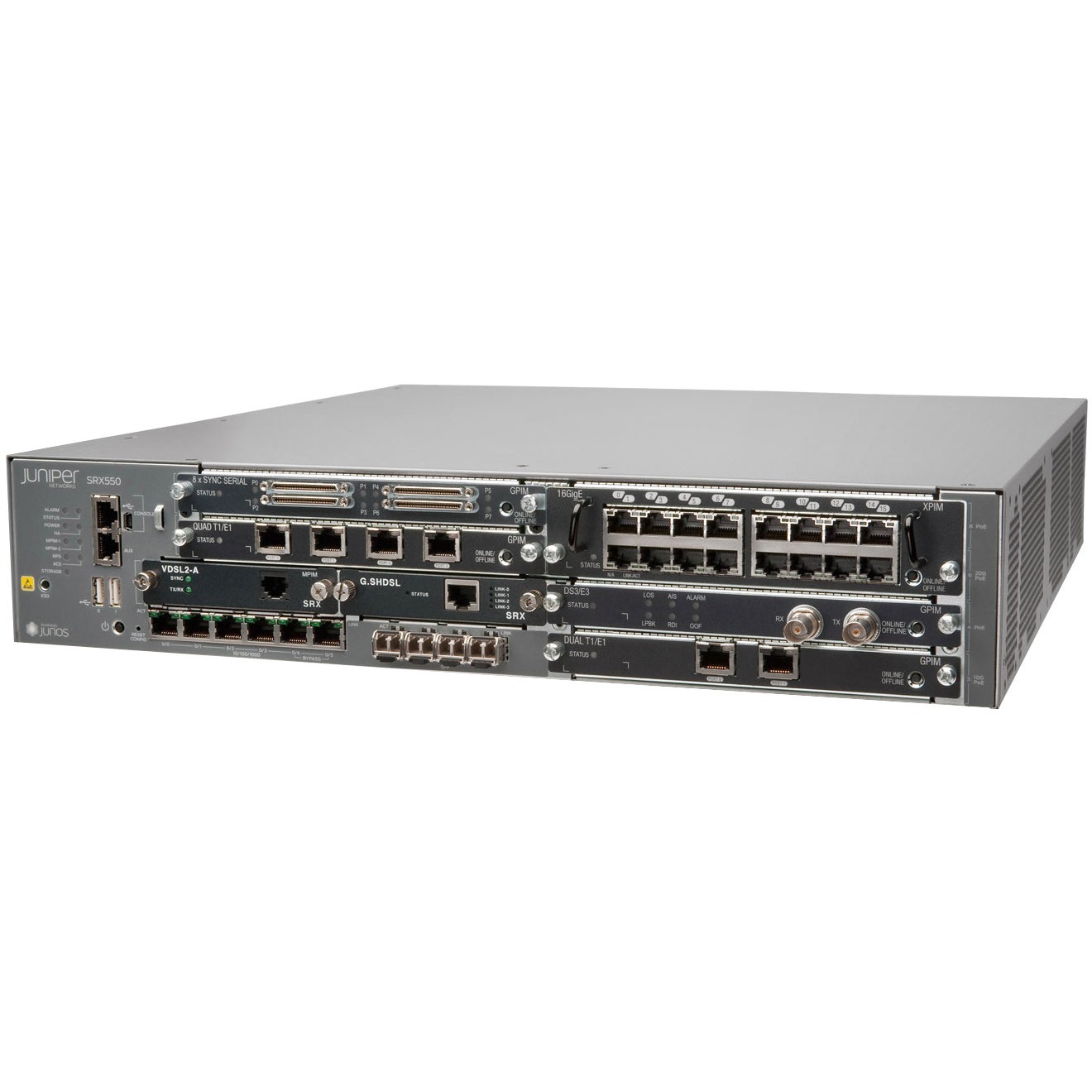

Juniper SRX550 Network Switch Model Overview
The SRX550 Services Gateway is an all-in-one solution that consolidates security, routing, switching, and WAN connectivity into a single 2 U device. It is a robust, highly flexible device for next-generation security, delivering enterprise-class networking for protecting today’s medium-to-large branch locations and supporting up to 5.5 Gbps firewall, 1 Gbps IPsec VPN, and 800 Mbps intrusion prevention system (IPS). The SRX550 supports next-generation firewall capabilities such as IPS, application visibility and control, and unified threat management (UTM) features including antivirus, antispam, and enhanced Web filtering.
Juniper Networks SRX550-645AP-M-TAA Network Switch Overview

The Juniper Networks®SRX Series Services Gateways for the branch joins Juniper Networks SRX Series for the data center, EX Series Ethernet Switches, M Series Multiservice Edge Routers, MX Series 3D Universal Edge Routers, and T Series Core Routers. This provides a single Juniper Networks Junos ® operating system-based portfolio of unprecedented scale. With Junos OS, enterprises and service providers can lower deployment and operational costs across their entire distributed workforce.

  • SRX Series for the branch runs Junos OS, the proven operating system that is used by core Internet routers in all of the top 100 service providers around the world. The rigorously tested carrier-class routing features of IPv4/IPv6, OSPF, BGP, and multicast have been proven in over 15 years of worldwide deployments.
  • SRX Series for the branch provides perimeter security, content security, application visibility, tracking and policy enforcement, role-based access control, and network-wide threat visibility and control. Using zones and policies, network administrators can configure and deploy branch SRX Series gateways quickly and securely. The SRX Series also includes wizards for firewall, IPsec VPN, NAT, and initial setup to simplify configurations out of the box.
  • Policy-based VPNs support more complex security architectures that require dynamic addressing and split tunneling. For content security, SRX Series for the branch offers a complete suite of Unified Threat Management (UTM) services consisting of: intrusion prevention system (IPS), application security (AppSecure), on-box and cloud-based antivirus, antispam, enhanced Web filtering, and data loss prevention to protect your network from the latest content-borne threats. Select SRX Series models feature Content Security Accelerator for high-performance IPS and antivirus scanning. The branch SRX Series integrates with other Juniper security products to deliver enterprise-wide unified access control (UAC) and adaptive threat management. These capabilities give security professionals powerful tools in the fight against cybercrime and data loss.
Interfaces/Ports
Total Number of Ports:
6
Powerline:
No
Management Port:
Yes
Media & Performance
Carrier Supported:
T-carrier/E-carrier
Broadband Transmission Technology:
VDSL/ADSL2+
I/O Expansions
Number of Total Expansion Slots:
12
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Power Description
Redundant Power Supply Supported:
Yes
Power Source:
Power Supply
Physical Characteristics
Compatible Rack Unit:
2U
Form Factor:
Rack-mountable
Height:
3.5"
Width:
17.5"
Depth:
18.2"
Weight (Approximate):
21.96 lb
Miscellaneous
Package Contents:
  • SRX550 Services Gateway
  • 1 x 645 Watt AC Power Supply
  • 247 W PoE Power (Power Cord and Rack-mount Kit)
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0832938073449
UPC: 832938073449
EAN: 0832938073449
UNSPSC: 43222609
