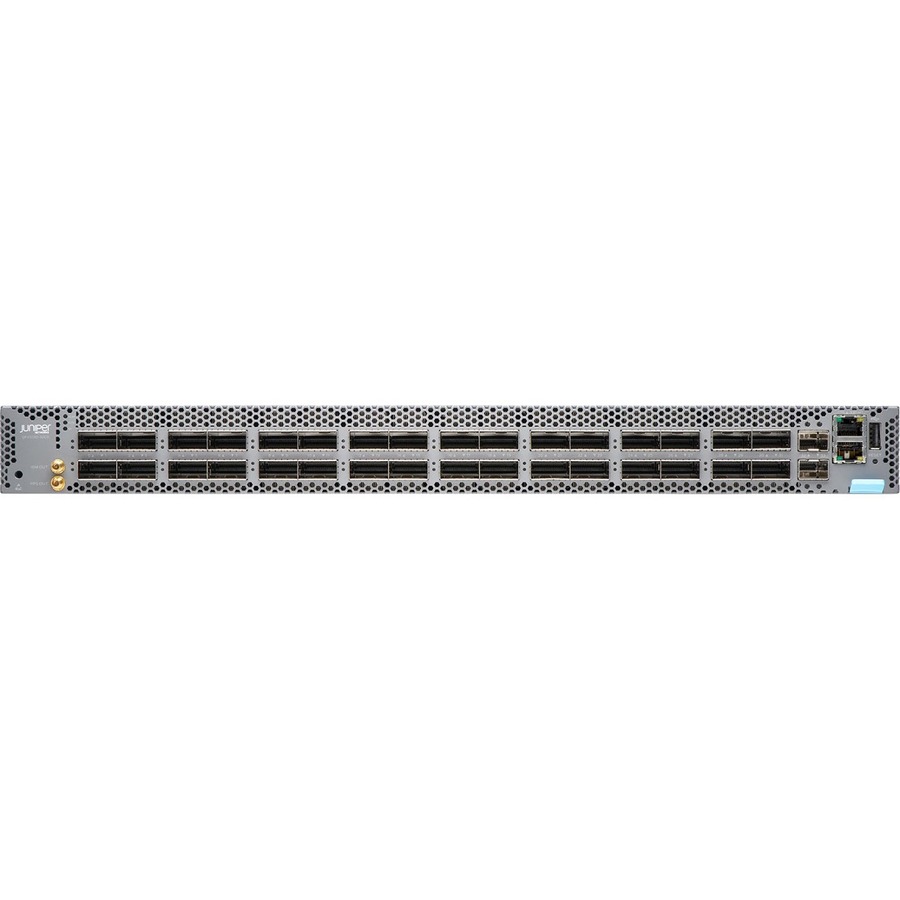

Juniper Networks QFX5130-32CD-AFI Data Networking

Juniper Networks - Juniper QFX5130-32CD Ethernet Switch, 34 Ports, Manageable, TAA Compliant, 3 Layer Supported, Modular, 973 W Power Consumption, 1U High, Rack-mountable, 1 Year Limited Warranty
  • Effectively reduces downtime with improved network performance
  • C15 plug/connector type for a secure, hassle-free operation
  • Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
  • Features 34 networking ports to meet the requirements of the most demanding workgroups
  • Power Supply power source for dependable power supply
  • Can work as layer 3 routing for scalable network design
  • Rack-mountable form factor for your convenience and simplicity of usage
  • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Read More
$77,350.28
Add to Quote
Juniper Parts Accessory Model Overview
Products and parts from Juniper.
Juniper Networks QFX5130-32CD-AFI Data Networking Overview
The QFX5130 Switch offers a high-density, cost-optimized 1 U 400GbE fixed-configuration platform ideal for data centers where cloud services are being added. These services require higher network bandwidth per rack, as well as flexibility, making the 10/25/40/100/400GbE interface options ideal for server and intra-fabric connectivity. The QFX5130 is an optimal choice for spine-and-leaf deployments in enterprise, service provider, and cloud provider data centers. Coupled with the widespread adoption of overlay technologies, the QFX5130 lays a strong foundation for your evolving business and network needs, offering deployment versatility to future-proof your network investment.
Product Description
The Juniper Networks® QFX5130 Switch is a next-generation, fixed-configuration spine-and-leaf switch that offers flexible, cost-effective, high-density 400GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE interfaces for server and intra-fabric connectivity.
A versatile, future-proofed solution for today's data centers, the QFX5130 leverages the power of a fully programmable chipset to support and deliver a diverse set of use cases. It supports advanced Layer 2, Layer 3, and Ethernet VPN (EVPN)- Virtual Extensible LAN (VXLAN) features. For large public cloud providers-early adopters of high-performance servers to meet explosive workload growth-the QFX5130 supports very large, dense, and fast 400GbE IP fabrics based on proven Internet scale technology. For enterprise customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5130 switch also provides a high radix-native 100GbE/400GbE EVPN-VXLAN spine option at reduced power and a smaller footprint.
The QFX5130 supports diverse use cases such as neural networks for AI applications, including autonomous driving, disaggregated storage, high frequency trading, packet brokering, and over-the-top streaming services. Delivering 25.6 Tbps of bidirectional bandwidth, the switch is optimally designed for spine-and-leaf deployments in enterprise, high-performance computing (HPC), and cloud data centers.
The QFX5130-32CD offers 32 ports in a low-profile 1 U form factor. High-speed interfaces support a wide variety of port configurations, including 400GbE, and 10GbE. The QFX5130-32CD is equipped with two AC or DC power supplies, providing 1+1 redundancy when all power supplies are present. Six hot-swappable fans offer back-to-front (AFO) or front-to-back (AFI) airflow options, providing 5+1 redundancy.
The QFX5130 includes an Intel XeonD-1500 processor to drive the control plane, which runs the Junos® OS Evolved operating system software.
Product Highlights
The QFX5130 includes the following capabilities. Please refer to the Specifications section for currently shipping features.
Native 400GbE Configuration
The QFX5130-32CD offers 32 ports in a 1 U form factor. The high-speed ports support a wide variety of configurations, including 100GbE and 40GbE.
High-Density Configurations
The QFX5130 is optimized for high-density fabric deployments, providing options for 32 ports of 400GbE, or 40GbE.
Flexible Connectivity Options
The QFX5130 offers a choice of interface speeds for server and intra-fabric connectivity, providing deployment versatility and investment protection.
Interfaces/Ports
Total Number of Network Ports:
34
Uplink Port:
Yes
Modular:
Yes
Port/Expansion Slot Details:
  • 32 x 400 Gigabit Ethernet Network
  • 2 x 10 Gigabit Ethernet Network
Media & Performance
Ethernet Technology:
  • 10 Gigabit Ethernet
  • 400 Gigabit Ethernet
Network Technology:
10GBase-X
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
  • QSFP-DD
  • SFP+
Number of SFP+ Slots:
2
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Frequency:
  • 50 Hz
  • 6 Hz
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
2
Power Consumption:
973 W
Plug/Connector Type:
C15
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.2"
Depth:
21.1"
Weight (Approximate):
24.49 lb
Miscellaneous
Package Contents:
  • QFX5130-32CD Ethernet Switch
  • 2 x DC Power Supplies
  • 6 x Hot-swappable Fans
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS-6
  • China RoHS
  • REACH
  • WEEE
  • 80 Plus Silver
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0832938092730
UPC: 832938092730
EAN: 0832938092730
UNSPSC: 43222612
