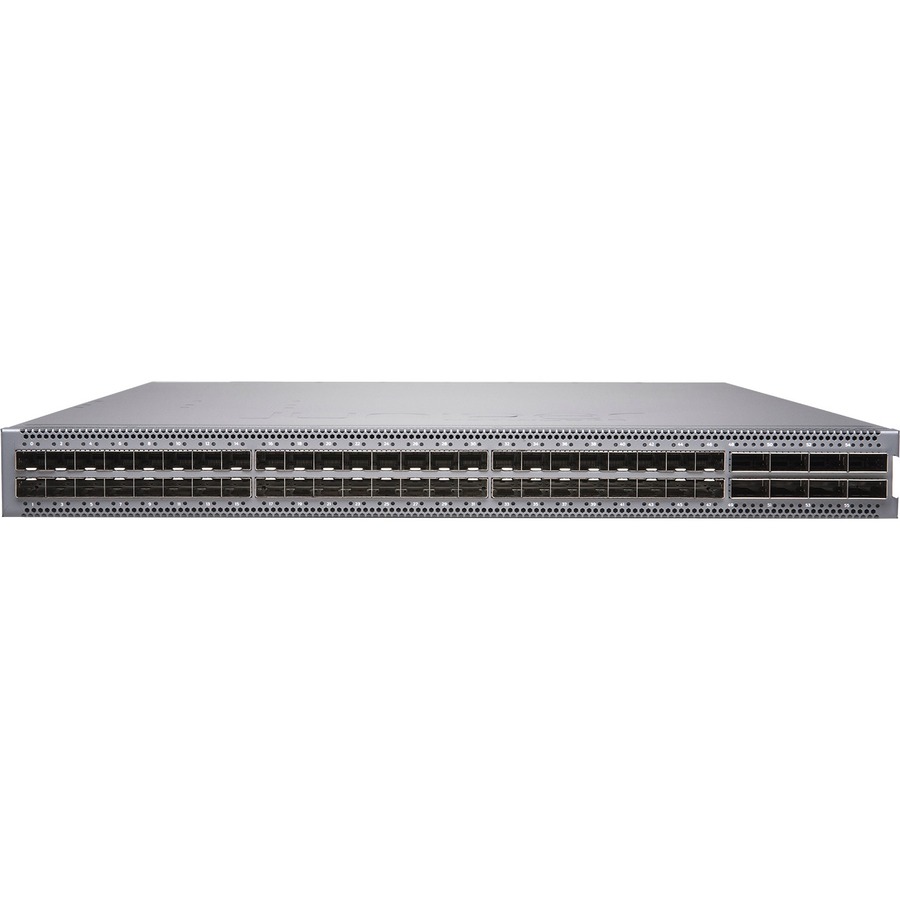

Juniper Networks QFX5120-48Y-D-AFO2 Data Networking

Part Number: QFX5120-48Y-D-AFO2
Model: Parts
Add to My Shopping List Add to Compare
$13,771.10

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Uplink Port
Yes
Modular
Yes
Port/Expansion Slot Details
48 x 25 Gigabit Ethernet Expansion Slot8 x 100 Gigabit Ethernet Expansion Slot
Media Type Supported
Optical Fiber

Product Description:

  Juniper QFX5120 Ethernet Switch, Manageable, 3 Layer Supported, Modular, 272 W Power Consumption, Optical Fiber, 1U High, Rack-mountable, 1 Year Limited Warranty
Explore all Juniper Networks Parts Accessories
Add to Quote
Juniper Networks QFX5120-48Y-D-AFO2 Data Networking
Juniper Networks QFX5120-48Y-D-AFO2 Data Networking

Juniper Networks Parts Accessory Model Overview

Products and parts from Juniper.
Juniper Networks QFX5120-48Y-D-AFO2 Data Networking Overview
The QFX5120 Switch delivers low latency, rich Layer 2 and Layer 3 features, and advanced EVPN- VXLAN capabilities, making it an ideal data center top-of-rack and aggregation switch for enterprise multicloud deployments.

Featuring Layer 3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/ underlay network architectures. Native 25GbE with 100GbE uplink ports on the QFX5120-48Y, combined with 32 ports of 100GbE on the QFX5120-32C, make the QFX5120 family ideal for leaf-and-spine network deployments.
Interfaces/Ports
Uplink Port:
Yes
Modular:
Yes
Port/Expansion Slot Details:
  • 48 x 25 Gigabit Ethernet Expansion Slot
  • 8 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Optical Fiber
Ethernet Technology:
  • 25 Gigabit Ethernet
  • 100 Gigabit Ethernet
Network Technology:
  • 25GBase-X
  • 100GBase-X
I/O Expansions
Total Number of Expansion Slots:
56.0
Expansion Slot Type:
  • SFP+
  • QSFP28
Shared SFP Slot:
No
Number of SFP+ Slots:
48
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Power Consumption:
272 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
20.5"
Weight (Approximate):
23.70 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • China Restriction of Hazardous Substances (China RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0832938091726
UPC: 832938091726
EAN: 0832938091726
UNSPSC: 43222612
