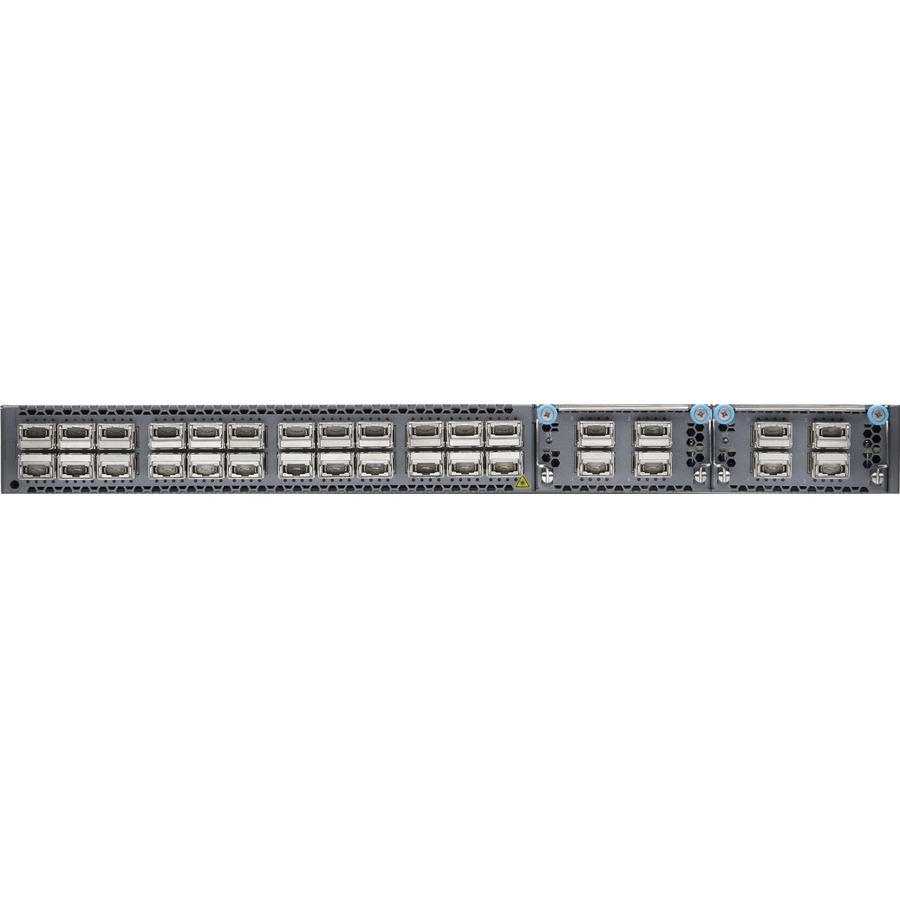

Juniper Networks QFX5100-24Q-3AFO-T Ethernet Switch

Part Number: QFX5100-24Q-3AFO-T

Model: QFX5100

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Token Ring Port

LRE Port

Bypass

Modular

Product Description:

QFX5100, 24 QSFP+ ports, 2 expansion slots, dual SFP/RJ45 mgmt, redundant fans, 2 AC power supplies, front to back airflow, TAA

Explore all Juniper QFX5100 Network Switches

Add to Quote

Juniper Networks QFX5100-24Q-3AFO-T Ethernet Switch

Overview

Full specifications (PDF)

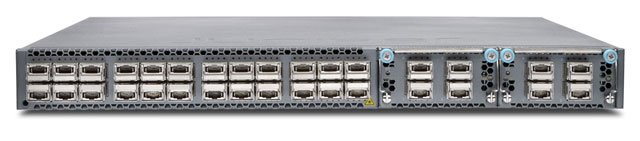

Juniper QFX5100 Network Switch Model Overview

The Juniper Networks QFX5100 line of access and aggregation switches delivers low latency, flexible deployment options, and rich Layer 2 and Layer 3 features, making it the industryâ€™s most nimble family of switches. The QFX5100 is designed for the most demanding, high-performance data center deployments. Highly flexible, the QFX5100 can be deployed in mixed 1GbE, 10GbE, and 40GbE environments within Juniper Virtual Chassis, Virtual Chassis Fabric, Junos Fusion and QFabric architectures, as well as within industry-standard architectures such as spine and leaf and Layer 3 fabrics.

Juniper Networks QFX5100-24Q-3AFO-T Ethernet Switch Overview

The highly flexible, high-performance Juniper Networks® QFX5100 line of switches provides the foundation for today's and tomorrow's dynamic data center. As a critical enabler for IT transformation, the data center network supports cloud and softwaredefined networking (SDN) adoption, as well as rapid deployment and delivery of applications. Mission-critical applications, network virtualization, and integrated or scale-out storage are driving the need for more adaptable networks. With its diverse set of deployment options, including fabric, Layer 3, and spine and leaf, the QFX5100 is the universal building block for data center switching architectures, enabling users to easily adapt as requirements change over time.

Detailed Specs

Full specifications (PDF)

Interfaces/Ports

Token Ring Port:

LRE Port:

Bypass:

Modular:

Management Port:

Yes

USB:

Yes

Port/Expansion Slot Details:

24 x 40 Gigabit Ethernet Expansion Slot

Media & Performance

Ethernet Technology:

40 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

QSFP+

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

Command Line Interface (CLI)
Web-based Management
Telnet
SNMP v1/2/3
sFlow
MIB
VLAN
DHCP
QoS

Memory

Standard Memory:

8 GB

Reliability

MTBF:

200000 Hour

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Redundant Power Supply Supported:

Yes

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable

Height:

1.7"

Width:

20.5"

Depth:

17.4"

Weight (Approximate):

21.60 lb

Miscellaneous

Certifications & Standards:

TAA Compliant

Safety:

CAN/CSA-C22.2 No. 60950-1 (2007) Information Technology Equipment-Safety
UL 60950-1 (2nd Ed.) Information Technology Equipment-Safety
EN 60950-1 (2005) Information Technology Equipment-Safety
IEC 60950-1 (2005) Information Technology Equipment-Safety (All country deviations): CB Scheme report.
EN 60825-1 +A1+A2 (1994) Safety of Laser Products-Part 1: Equipment Classifcation
GR-63-Core (2006) Network Equipment, Building Systems (NEBS) Physical Protection
GR-1089-Core (2006) EMC and Electrical Safety for Network Telecommunications Equipment
SR-3580 (1995) NEBS Criteria Levels (Level 3)

EMC:
