Juniper Networks QFX10008-CHAS Data Networking Overview
he Juniper Networks® QFX10000 line of modular Ethernet switches delivers up to 96 Tbps of system throughput, scalable to over 200 Tbps in the future, to meet the rapid and ongoing traffic growth in the data center and campus deployments. Industry-leading scale and density on the QFX10000 modular switches redefine per-slot economics, enabling customers to do more with less while simplifying network design and reducing OpEx. Based on purpose-built Q5 ASICs, the QFX10000 line delivers unparalleled intelligence and analytics, providing deeper insights into application performance.
The QFX10000 line can be deployed in a number of different network designs and fabrics, including IP fabric with Ethernet VPN (EVPN)-Virtual Extensible LAN (VXLAN) and Juniper MC-LAG for Layer 2 and Layer 3 networks, giving customers complete architectural flexibility. Additionally, the open architecture ensures that customers can innovate on top of Juniper Networks Junos® operating system to accelerate the pace of innovation.
Two QFX10000 modular chassisoptionsare available, providing full deployment flexibility:

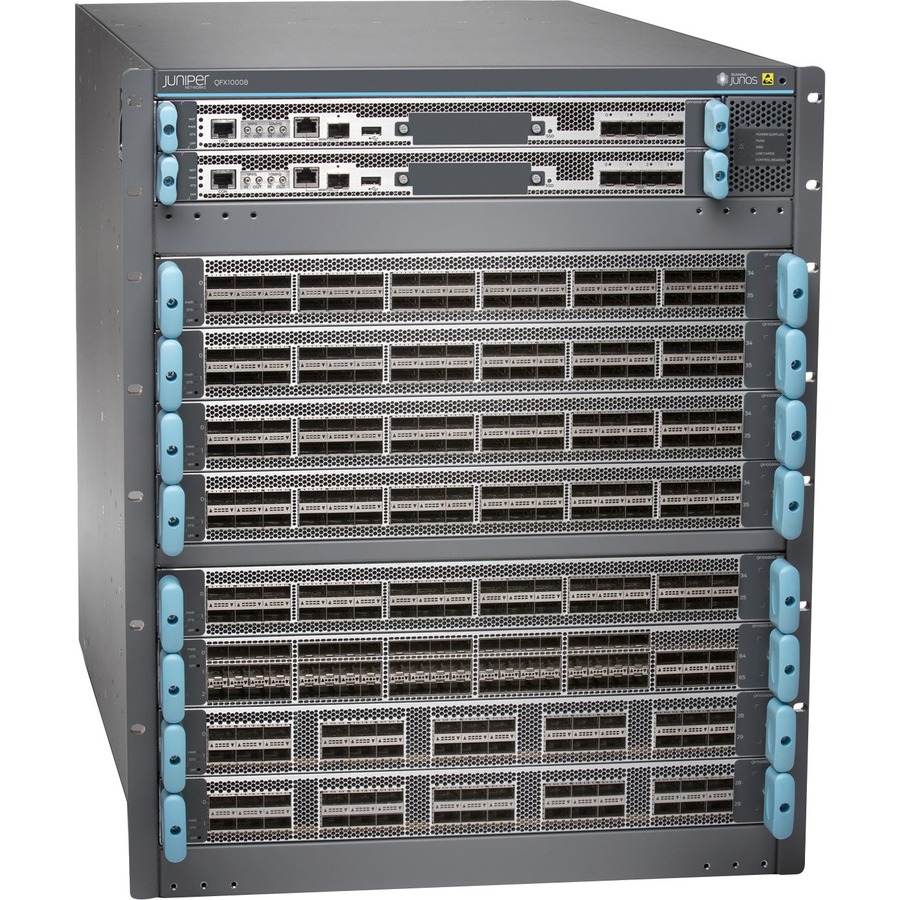

QFX10008 Ethernet Switch, an 8-slot, 13 U chassis that supports up to eight line cards
QFX10016 Ethernet Switch, a 16-slot, 21 U chassis that supports up to 16 line cards
Both QFX10000 modular chassis can accommodate anycombination of the following QFX10000 line cards:
QFX10000-36Q, a 36-port 40GbE quad small form-factor pluggable plus transceiver (QSFP+) or 12-port 100GbE QSFP28 line card
QFX10000-30C, a 30-port 100GbE QSFP28/40GbE QSFP+ line card
QFX10000-60S-6Q, a 60-port 1GbE/10GbE SFP/SFP+ line card with six-port 40GbE QSFP+ / two-port 100GbE QSFP28
QFX10000-30C-M, a 30-port 100GbE QSFP28/40GbE QSFP+ MACsec line card
QFX10K-12C-DWDM, a 6-port 200GbE Coherent DWDM MACsec line card
