Juniper MX2020-PREMIUM-AC Wireless Router

Juniper Networks MX2000 - 20 Slot MX2000 Chassis, Base with 2 RE, Fan Trays, AC Power, Discounted Switch Fabric (8 nos)
$384,425.12
Recommended TrueSupport Coverage (/mo.)
Add to Quote
Juniper MX2000 Wireless Router Model Overview
The SDN-ready MX2000 line of 3D Universal Edge Routers helps network operators achieve their business goals by combining unparalleled performance and reliability with a programmable, software-centric design at massive scale. Simply put, the MX2000 routers offer the greatest system capacity, the highest line-rate port density, and the most full-featured edge service delivery platform available today. As cloud builders, telecom service providers, and cable operators seek to improve customized digital experiences for their customers, they must concurrently address everincreasing bandwidth demands on their network. Meeting these objectives requires a dynamic, service-oriented edge routing platform that cost-effectively scales to meet both current demand and long-term forecasts.

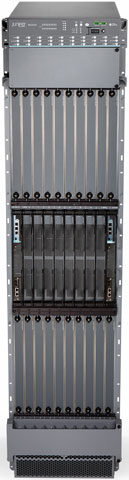

Juniper MX2020-PREMIUM-AC Wireless Router Overview

Network operators around the world are under extreme pressure to satisfy their consumer and business customer demand for bandwidth. Traffic growth, fueled by the explosive proliferation of mobile devices, promises to continue into the next decade as forecasts for mobile phones are predicted to reach over 1 billion by the year 2016 and mobile devices to eclipse 50 billion by the year 2020.

Juniper Networks MX2020 and MX2010 3D Universal Edge Routers provide a common platform for the delivery of powerful routing, network services, and application enablement for a consolidated, financially optimized network model, scaling up to 80 Tbps and 40 Tbps respectively and allowing network operators to fully leverage assets.

I/O Expansions
Number of Total Expansion Slots:
20
Expansion Slot Type:
  • Routing Engine
  • Switch Fabric Card
Power Description
Input Voltage:
48 V DC
Redundant Power Supply Supported:
Yes
Power Source:
Power Supply
Physical Characteristics
Compatible Rack Unit:
45U
Form Factor:
Rack-mountable
Height:
78.8"
Width:
17.5"
Depth:
36.2"
Weight (Approximate):
1500 lb
Miscellaneous
Package Contents:
  • MX2020 Router Chassis
  • Redundant Routing Engine
  • SFBs
  • Fan Trays
  • AC Power Supply
Certifications & Standards:

Safety:

  • CAN/CSA-C22.2 No. 60950-1
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1
  • EN 60825-1

EMC:

  • AS/NZS CISPR22 Class A
  • N55022 Class A
  • FCC Part 15 Class A
  • VCCI Class A

Immunity:

  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-11

ETSI:

  • ETSI EN-300386-2

NEBS:

  • SR-3580 NEBS Criteria Levels (Level 3 Compliance)
  • GR-63-CORE: NEBS, Physical Protection
  • GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment
  • DT EMC requirements as per their requirement spec "1TR9"
  • BT Mobile Immunity Requirements
  • NEBS Compliance (with AT&T NEBS, Verizon NEBS)
  • ETSI 300019
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0190801051612
UPC: 190801051612
EAN: 0190801051612
UNSPSC: 43201602
