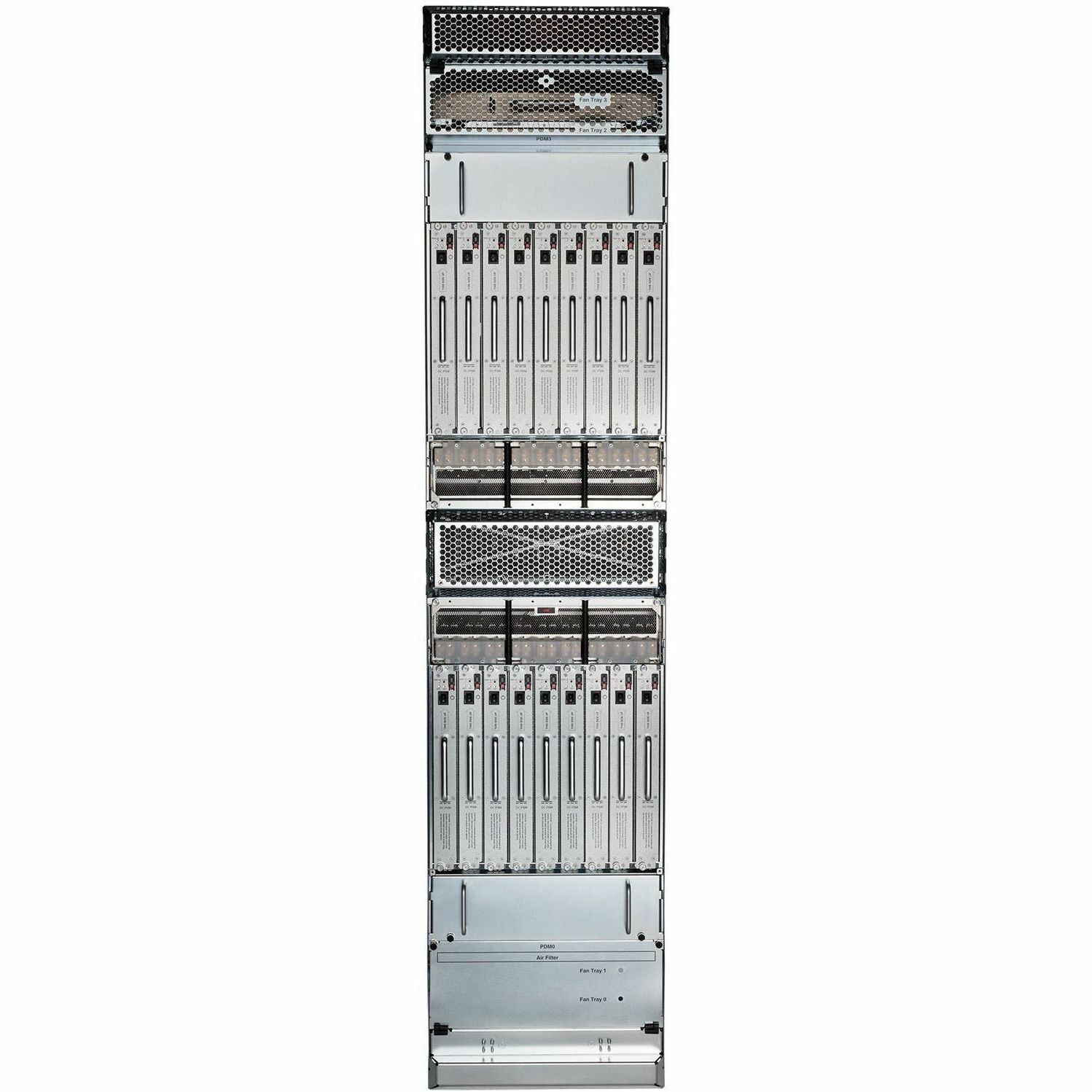

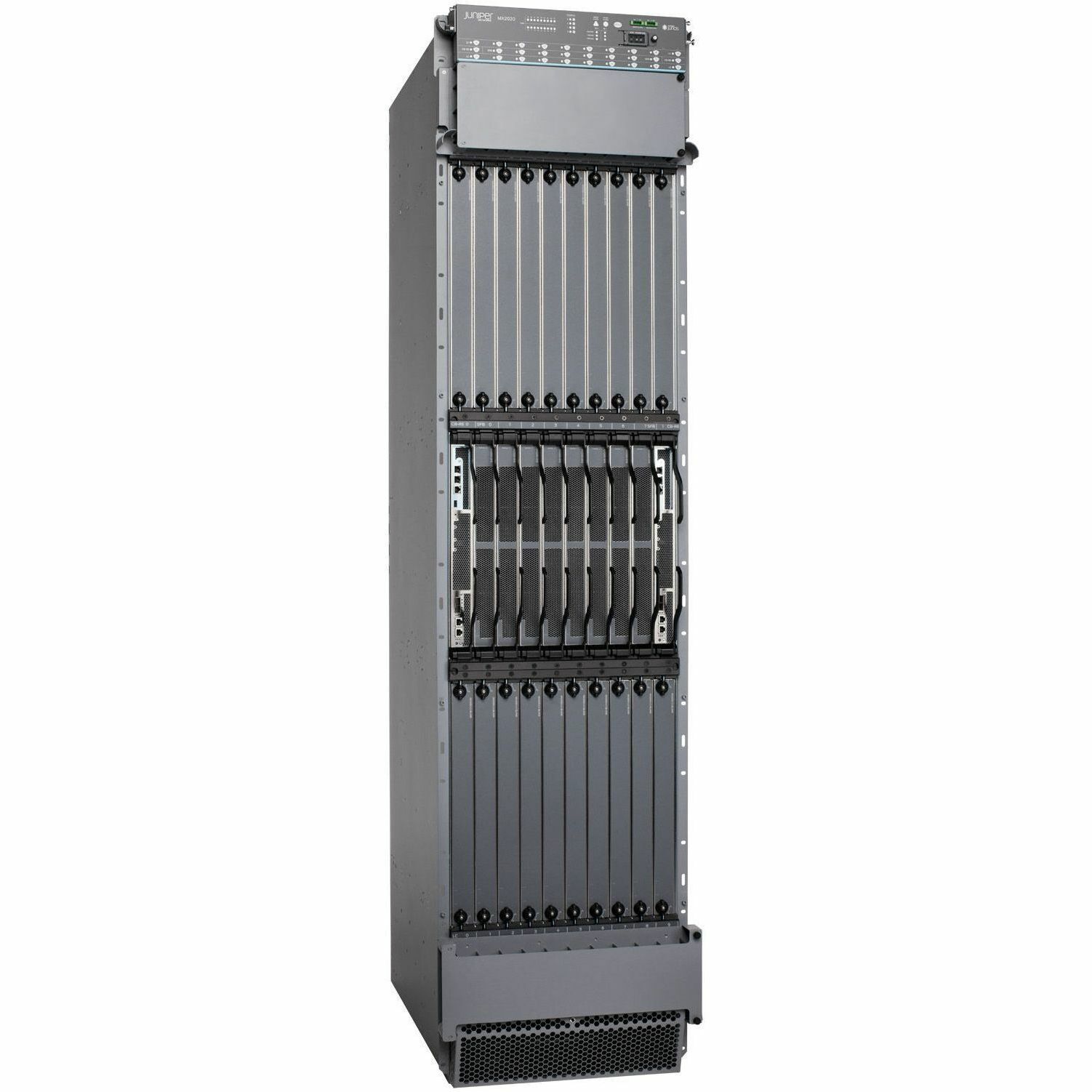

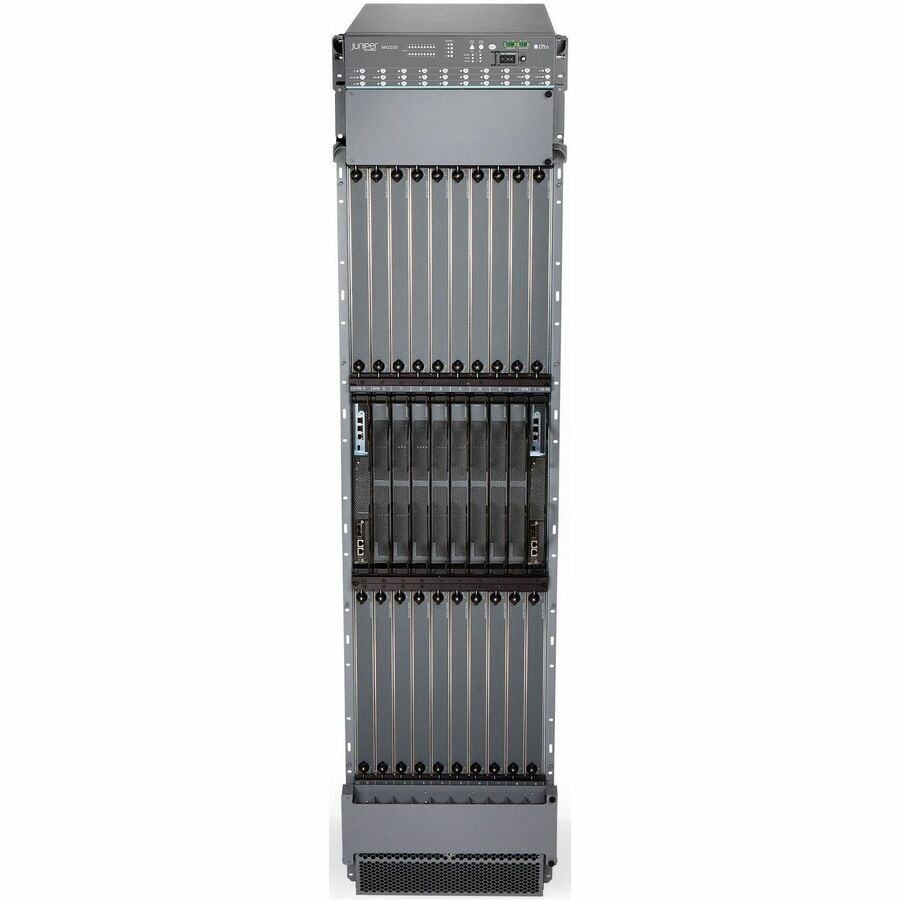

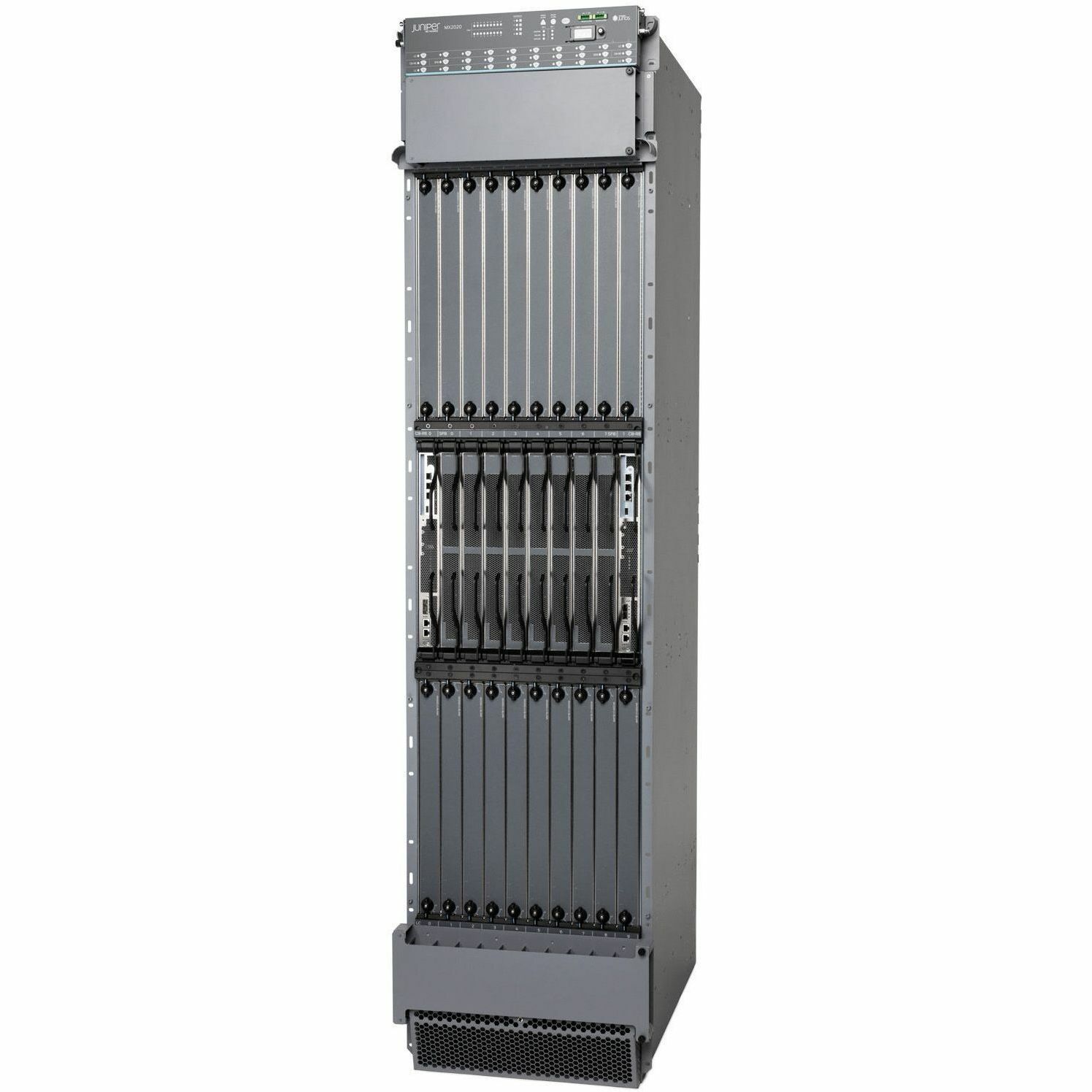

Juniper Networks MX2020-BASE-AC Wireless Router

Part Number: MX2020-BASE-AC
Model: MX2000
$323,280.75

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Expansion Slots
20
Expansion Slot Type
Routing EngineSwitch Fabric Card
Ethernet Technology
100 Gigabit Ethernet
Redundant Power Supply Supported
Yes

Product Description:

  20 Slot MX2000 Chassis, Base with 1 RE, Fan Trays, AC Power, Discounted Switch Fabric (7 nos)

Juniper Networks MX2000 Wireless Router Model Overview

The Juniper Networks MX2000 3D Universal Edge Routers represent the pinnacle of performance and reliability for service providers and enterprises. Designed to meet the ever-increasing demands for bandwidth, these routers effortlessly scale to support customized digital experiences and significant data traffic growth. With capacities reaching 80 Tbps for the MX2020, the MX2000 line integrates advanced networking capabilities, ensuring consistent delivery of high-quality services across residential, mobile, and cloud markets.


Key Features

  • Industry-Leading Scale: Support for high-density port configurations with up to 1,920 10GbE interfaces.
  • Unmatched Network Availability: Features include N+1 redundancy, ensuring uninterrupted operations.
  • Integrated Network Edge Services: Enables streamlined operations and reduced TCO by hosting essential services on the router.
  • Outstanding Power Design: Dynamic power management achieves exceptional energy efficiency, consuming just .6W/GbE.

Specifications

  • Dimensions:

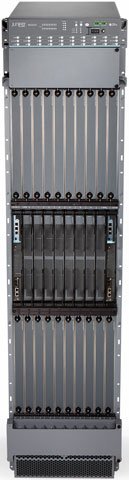

    • MX2020: 78.75 x 36.2 x 17.5 in

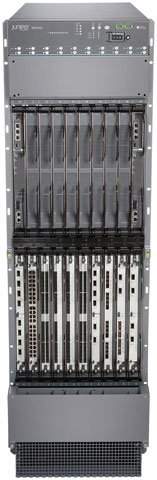

    • MX2010: 59.5 x 36.2 x 17.5 in

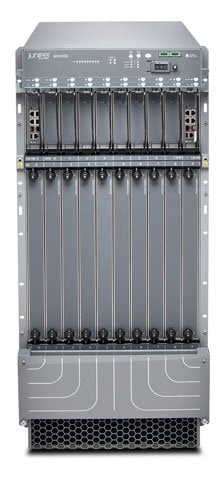

    • MX2008: 42 x 34.5 x 17.37 in
  • Weight:
    • MX2020: 1,500 lbs
    • MX2010: 1,000 lbs
    • MX2008: 915 lbs
  • Power Options:
    • -48 V DC or AC configurations available.
    • Dynamic power allocation based on hardware configuration.
  • Max Throughput: Up to 80 Tbps for MX2020, 40 Tbps for MX2010 & MX2008.
Juniper Networks MX2020-BASE-AC Wireless Router Overview

Network operators around the world are under extreme pressure to satisfy their consumer and business customer demand for bandwidth. Traffic growth, fueled by the explosive proliferation of mobile devices, promises to continue into the next decade as forecasts for mobile phones are predicted to reach over 1 billion by the year 2016 and mobile devices to eclipse 50 billion by the year 2020.

Juniper Networks MX2020 and MX2010 3D Universal Edge Routers provide a common platform for the delivery of powerful routing, network services, and application enablement for a consolidated, financially optimized network model, scaling up to 80 Tbps and 40 Tbps respectively and allowing network operators to fully leverage assets.

I/O Expansions
Total Number of Expansion Slots:
20
Expansion Slot Type:
  • Routing Engine
  • Switch Fabric Card
Network & Communication
Ethernet Technology:
100 Gigabit Ethernet
Power Description
Redundant Power Supply Supported:
Yes
Power Source:
Power Supply
Physical Characteristics
Compatible Rack Unit:
45U
Form Factor:
Rack-mountable
Height:
78.8"
Width:
17.5"
Depth:
36.2"
Weight (Approximate):
1500 lb
Miscellaneous
Package Contents:
  • MX2020 Router Chassis
  • 1 x Routing Engine
  • SFBs
  • Fan Trays
  • AC Power Supply
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0190801051452
UPC: 190801051452
EAN: 0190801051452
UNSPSC: 43201602
