Juniper MX104-PREM-DC-BNDL Wireless Router

Juniper Networks MX104 - MX104 premium, redundant PS and RE + 4 MIC slots+JUNOS
  • With the versatile chassis, build a network that suits your needs by installing multiple modules and have more flexibility in expanding your router when required
  • Optimize the performance of business networks with the 10 Gigabit Ethernet connectivity
  • Built-in power supply to ensure all components are being supplied with accurate voltage
Read More
$81,551.04
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

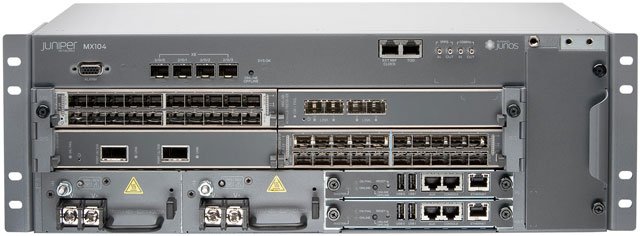

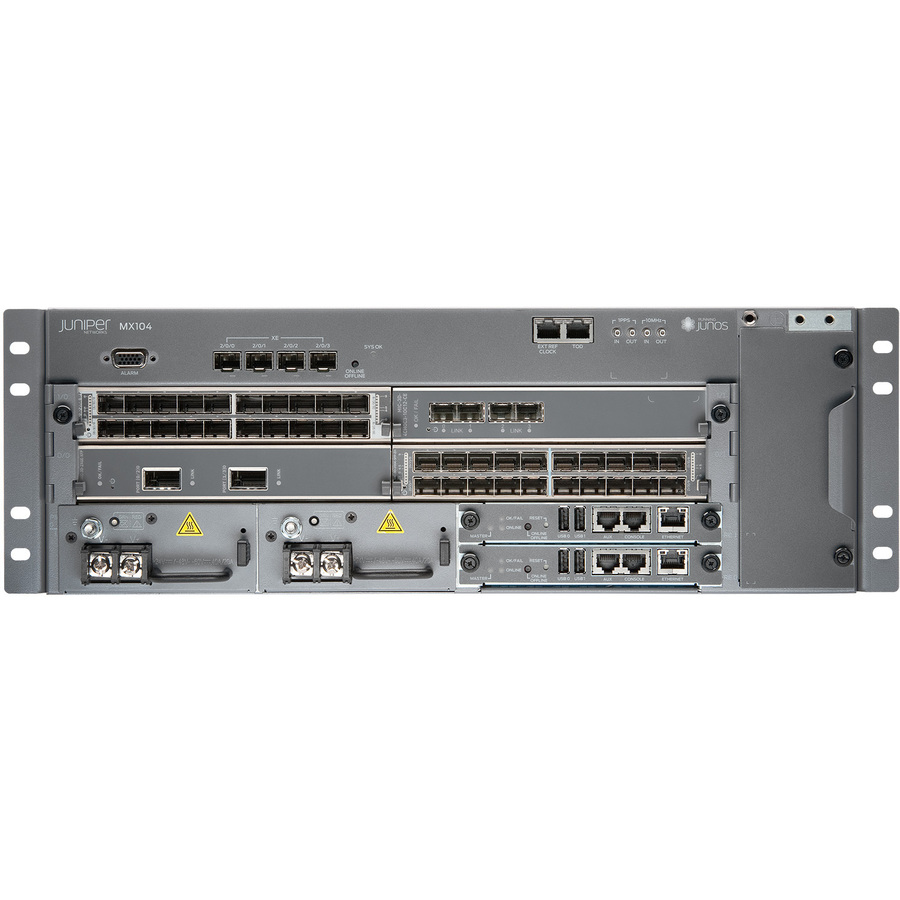

Juniper MX104 Wireless Router Model Overview
The SDN-ready MX104 3D Universal Edge Router is a modular, highly redundant, and full-featured MX Series platform built for space- and power-constrained service provider and enterprise facilities. The MX104 offers 80 Gbps of capacity, a redundant control plane for high availability, as well as four fixed 10GbE ports and four Modular Interface Card (MIC) slots for flexible network connectivity and virtualized network services. Optimized for mobile applications and central office deployments, the MX104 is also ETSI 300 compliant, environmentally hardened for deployment in outside cabinets and remote terminals, and supports advanced timing features.
Juniper MX104-PREM-DC-BNDL Wireless Router Overview

Juniper Networks MX104 3D Universal Edge Router is optimized for the aggregation of mobile, enterprise WAN, business, and residential access services. Based on a central office-optimized MX Series chassis supporting a redundant control plane for high availability, the MX104 is temparature hardened to allow deployment in outside cabinets and remote terminals. It also provides inline services by extending the service edge to the aggregation domain. The MX104 incorporates industry-leading timing and synchronization technology to enhance quality of experience (QoE) for mobile broadband, and is managed through the Junos Space Network Management Platform for rapid service design provisioning and lower TCO.

Interfaces/Ports
USB:
Yes
Powerline:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
No
I/O Expansions
Number of Total Expansion Slots:
8
Expansion Slot Type:
  • Modular Interface Card (MIC)
  • SFP+
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
VoIP Supported:
Yes
Management & Protocols
Security Features:
NAT
Power Description
PoE (RJ-45) Port:
No
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
Power Supply
Physical Characteristics
Form Factor:
Rack-mountable
Height:
6.1"
Width:
17.5"
Depth:
9.5"
Weight (Approximate):
32 lb
Miscellaneous
Package Contents:
  • MX104 3D Universal Edge Router
  • 1 x DC Power Supply
  • Filter
  • Fan Tray
Certifications & Standards:
Safety:
  • CAN/CSA-C22.2 No. 60950-1
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1
  • EN 60825-1 +A1+A2
EMC:
  • EN 300 386 V1.3.3
  • EMI (Emission)
  • FCC Part 15 Class A
  • EN 55022 Class A
  • VCCI Class A
  • BSMI CNS 13438
  • NCC C6357
Immunity:
  • EN 55024 +A1+A2 (1998)
  • EN-61000-3-2 (2006)
  • EN-61000-3-3 +A1 +A2 +A3 (1995)
  • EN-61000-4-2 +A1 +A2 (1995)
  • EN-61000-4-3 +A1+A2 (2002)
  • EN-61000-4-4 (2004)
  • EN-61000-4-5 (2006)
  • EN-61000-4-6 (2007)
  • EN-61000-4-11 (2004)
NEBS:
  • SR-3580 (2007)
  • GR-63-Core (2006)
  • GR-1089-Core (2006)
  • GR-3108-CORE
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0832938068551
UPC: 832938068551
EAN: 0832938068551
UNSPSC: 43201602
